Driving with a rigged truck crane
13.5 Driving from the crane cab
13 - 24 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

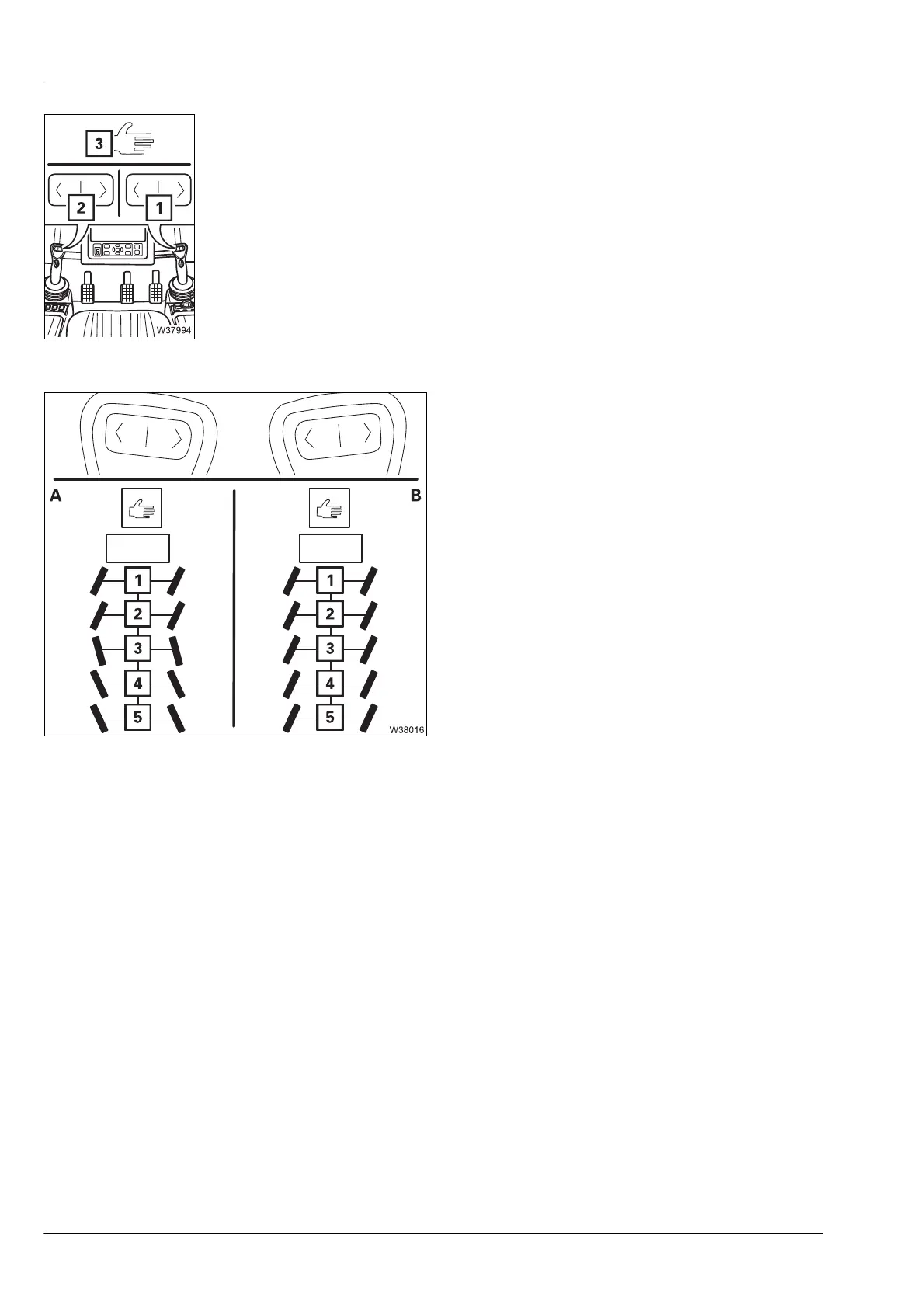

Steering with separate steering – manual
The (3) symbol is displayed.
• Steer the 1st and 2nd axle lines with the button (1).
• Steer the 3rd and 4th axle lines with the button (2).
The axle lines are steered as long as you keep the button pressed or until an
end position is reached.
(A) – For driving around corners
• Steer the 3rd and 4th axle lines in the oppo-
site direction to the 1st and 2nd axle lines.
(B) – For crab travel mode
• Steer the 3rd and 4th axle line in the same
direction as the 1st and 2nd axle line.
– To turn to the left:
• Press buttons (1), (2) to the left.
– To turn to the right:
• Press buttons (1), (2) to the right.
