5. Hold the trigger until the digital imager reader beeps, indicating the barcode is successfully
decoded.
Steps 2 - 4 above may be required to repeat on poor quality or difficult barcodes.
The aiming pattern is smaller when the digital imager reader is closer to the symbol and larger
when it is farther from the symbol. Scan symbols with smaller bars or elements (mil size)
closer to the digital imager reader, and those with larger bars or elements (mil size) farther
from the digital imager reader.
The digital imager reader can also read a barcode presented within the aiming dot not centered.

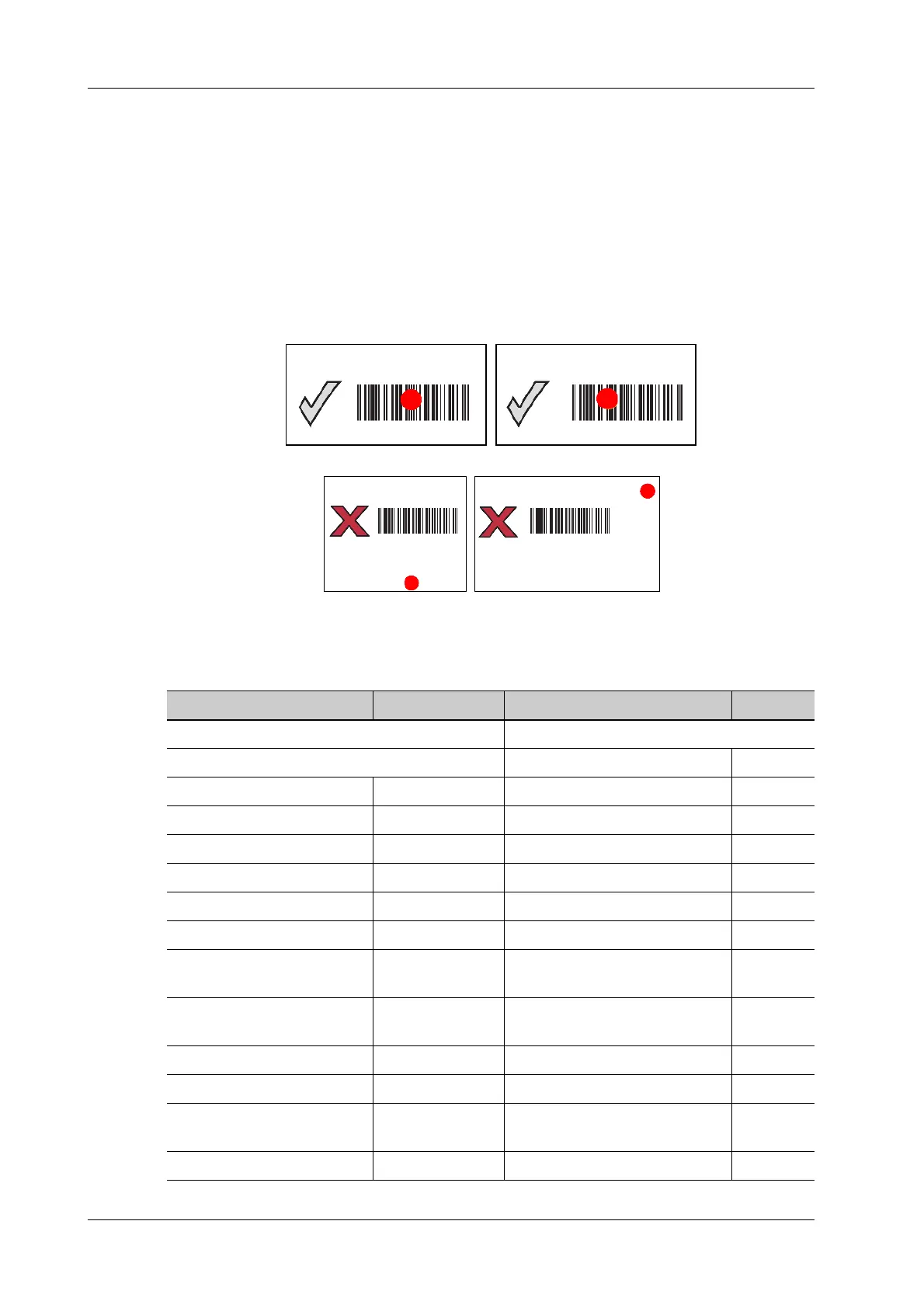

The top examples in show acceptable aiming options, while the bottom examples cannot be
decoded.
A.1.5 Parameter Defaults
Refer to the following table for parameter defaults of DS4308.
Parameter Defaults Parameter Defaults
1-D Symbologies Interleaved 2 of 5 (ITF)
UPC/EAN Interleaved 2 of 5 (ITF) Enable Enable
UPC-A Enable Set Lengths for I 2 of 5 14
UPC-E Enable I 2 of 5 Check Digit Verification Disable
UPC-E1 Disable Transmit I 2 of 5 Check Digit Disable
EAN-8/JAN 8 Enable Convert I 2 of 5 to EAN 13 Disable
EAN-13/JAN 13 Enable Codabar (NW - 7)
Bookland EAN Disable Codabar Enable
Decode UPC/EAN/JAN
Supplementals (2and 5 digits)
Ignore Set Lengths for Codabar 5 to 55
UPC/EAN/JAN
Supplemental Redundancy
10 CLSI Editing Disable
Transmit UPC-A Check Digit Enable NOTIS Editing Disable
Transmit UPC-E Check Digit Enable
Transmit UPC-E1 Check
Digit
Enable 2-D Symbologies
UPC-A Preamble System Character PDF417 Enable
