2 System Overview
Operator’s Manual 2 - 7
2.8 Audio/Video Extend Module

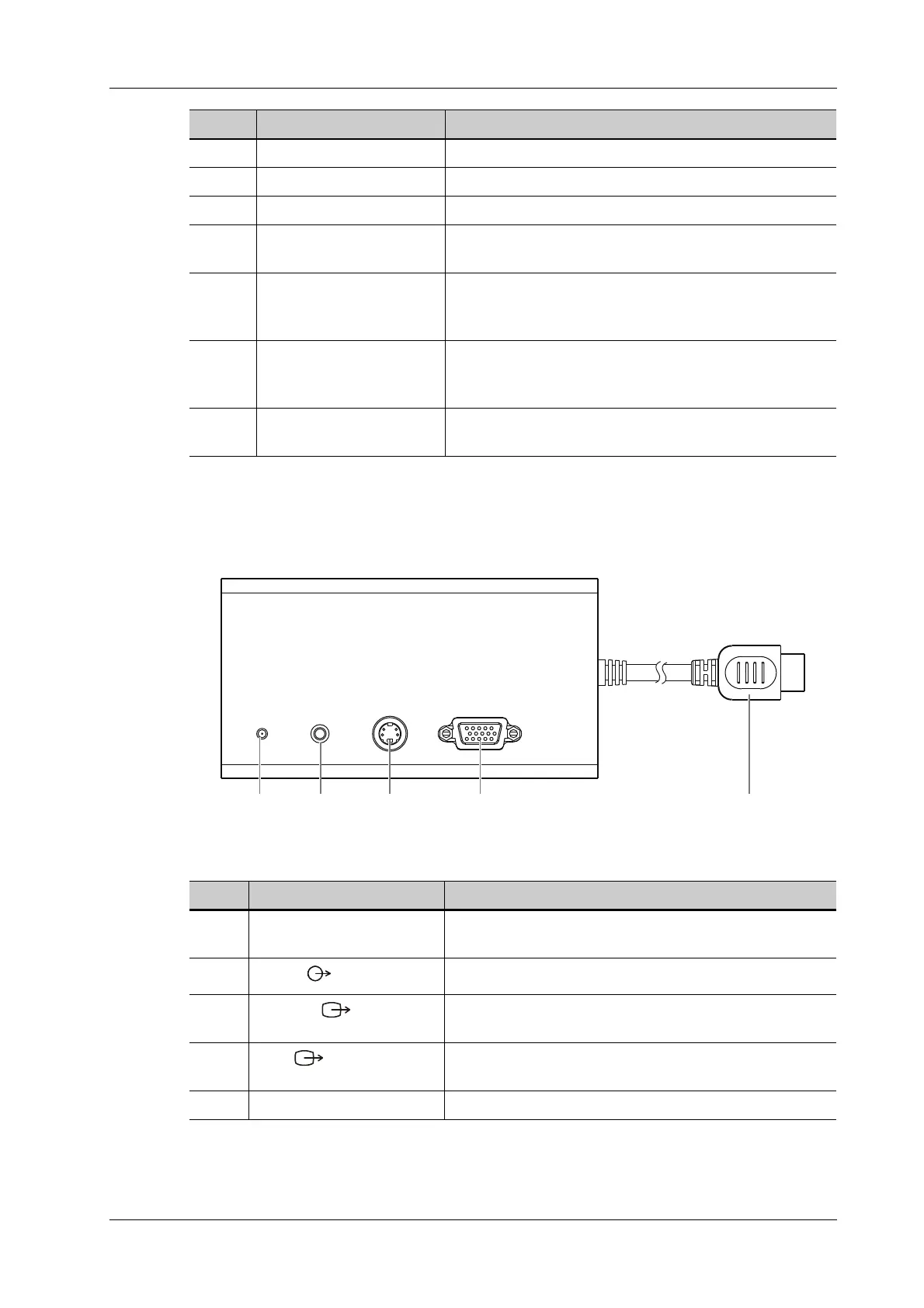

Figure 2-2 Audio/Video extend module
4. Probe holder Used for placing the probe.
5. Kensington lock Locks the main unit to the trolley in case of loss.
6. Power inlet Connects with the power adapter.
7. Network port Network port. Used for connecting router, ultrasound
workstation, server, etc.
8. USB ports Connects USB device. Used for connecting storage device
such as USB disk, bar code reader, printer, footswitch,
DVD recorder, etc.
9. HDMI High definition multimedia interface. Used for connecting
TV, projector, ultrasound workstation video capture card,
etc.
10. Serial port for connecting
ECG
Connects with the ECG module.
No. Name Description
No. Name Description
1. Indicator It illuminates in green when the module is connected to the
main unit.
2.
AUDIO
Reserved.
3.
S-VIDEO
Used for separate video output, and connecting projector,
ultrasound workstation video capture card, etc.
4.
VGA
VGA signal output. Used for connecting TV, Projector,
ultrasound workstation video capture card, etc.
5. HDMI plug Used for connecting to the HDMI port of the main unit.
12 3 4 5
