Mindray Hepatus 7 User Manual

2 - 6 Operator’s Manual
2 System Overview
2.6.5 Parts that can be used within patient environment
• Main unit
•Probes
•Footswitch
•Printers
2.7 Introduction of Each Unit

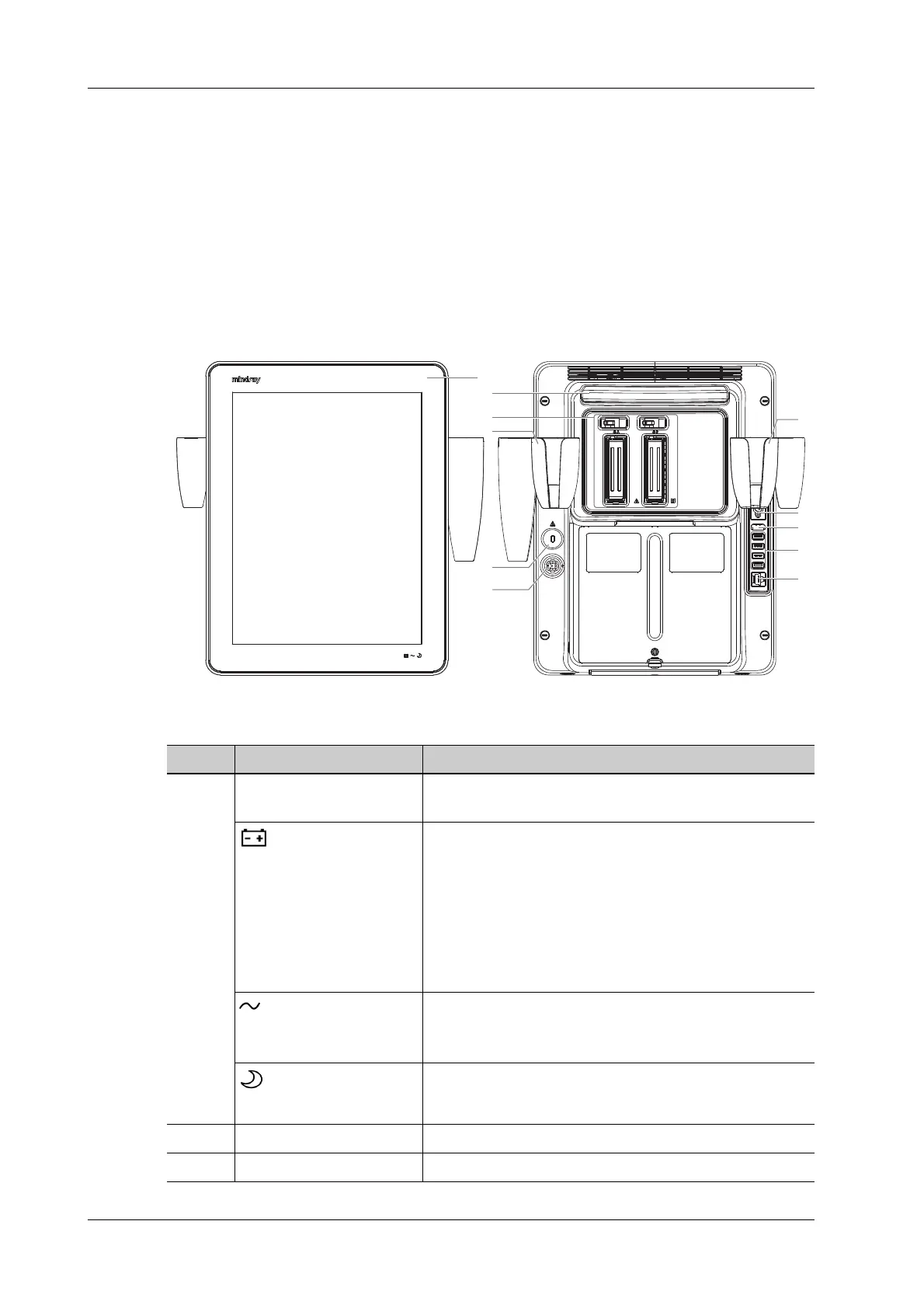

Figure 2-1 Main unit overview
No. Name Description
1. Touch screen and display Operator-system interface or control; displays the image
and parameters during the scan.
Battery status indicator
• Charging status:
It illuminates in orange when batteries are charging;
It illuminates in green when batteries are charged fully.
• Discharging status:
It illuminates in green color when the power of the
batteries is sufficient;
It blinks in orange color for low battery power.
AC indicator
• The indicator is green at AC supply.
• The indicator is off when batteries are supplied without
AC supply.
Standby indicator
• Standby: blinking in orange.
• Other status: light off.
2. Telescoping handle Used for moving the system occasionally.
3. Probe port Connects a probe to the main unit.
1
2
3
4
5
6
7
8
9
10
