Mindray Hepatus 7 User Manual

C - 4 Operator’s Manual
C Trolley and Accessories
C.2 HMT-600 Trolley
C.2.1 Trolley Accessories
• Probe/Gel holder
•Storage bin

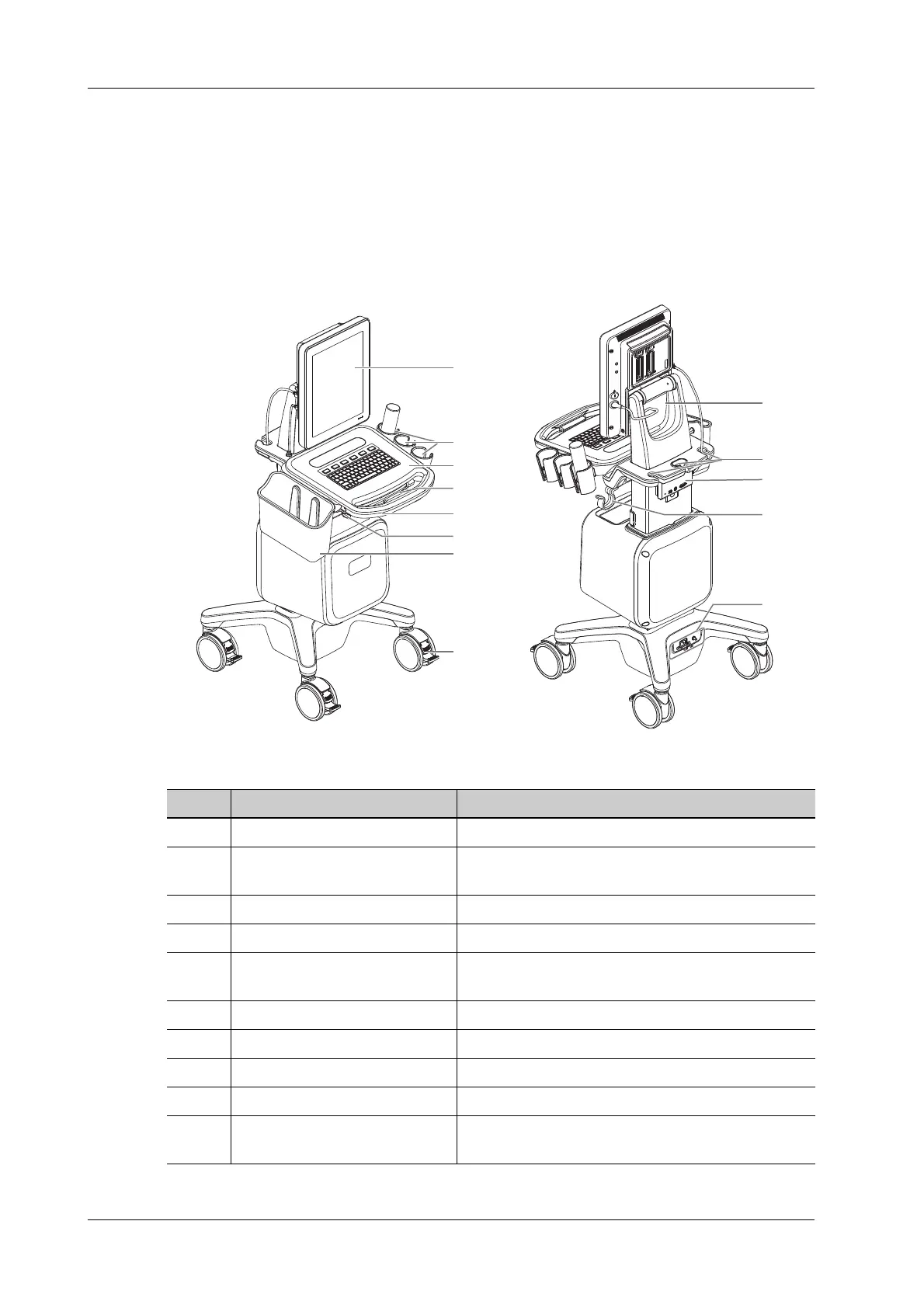

C.2.2 Introduction of Each Unit
No. Name Function
1. Main unit of ultrasound system /
2. Probe/Gel holders Used for placing probes temporarily or placing the
gel.
3. Control panel Key- pressing operator-system interface or control.
4. Ascending/descending switch Press to adjust the height of control panel.
5. Trolley handle Used for ascending/descending the trolley or moving
the trolley.
6. Rotatable knob Lock or unlock the move of the control panel.
7. Storage bin Used for placing report or other stuff.
8. Caster Used for securing or moving the system.
9. Main unit support Used for fixing the ultrasound system.
10. Cable management slot Used for organizing the probe cables and peripheral
cables.
1
2
3
4
5
6
7
8
13
12
14
11
10
9
