C - 2 Operator’s Manual
C Trolley and Accessories
C.1.2 Introduction of Each Unit
Retractable cable and telescoping mechanism of the trolley are options before factory. For details,
please contact Mindray service engineer.

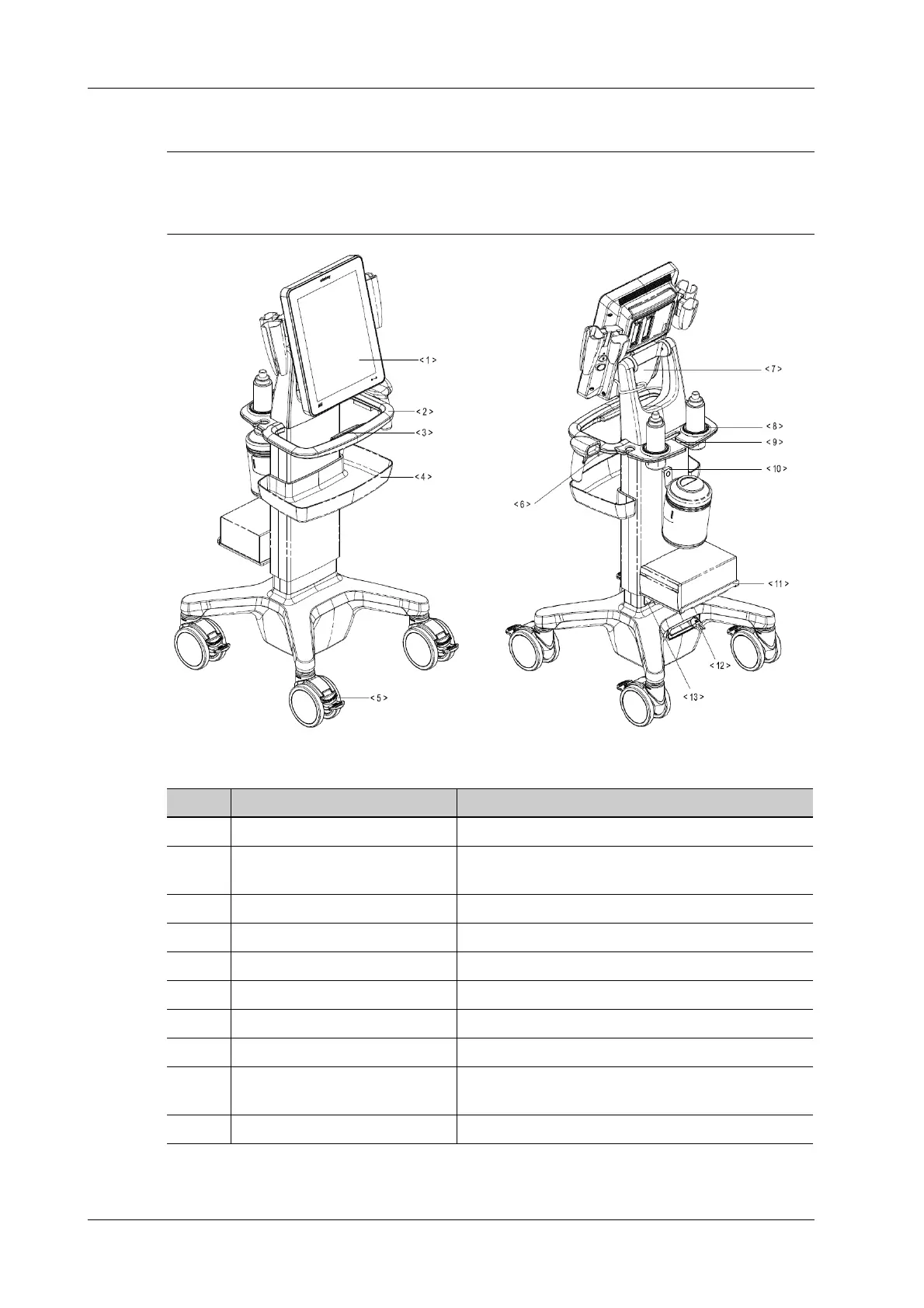

No. Name Function
<1> Main unit of ultrasound system /
<2> Trolley handle Used for ascending/descending the trolley or moving
the trolley.
<3> Height lever Press to adjust the height of the stand.
<4> Storage bin Used for keeping the cases, towelette, etc.
<5> Caster Used for securing or moving the system.
<6> Reader support Used for placing the barcode reader.
<7> Main unit support Used for fixing the ultrasound system.
<8> Gel holder Used for placing the gel.
<9> Cable management slot Used for organizing the probe cables and peripheral
cables.
<10> Towelette holster Used for placing the towelette container.
