Mindray V Series User Manual

V 21 Mechanical Functions
4 - 16 V Series Operating Instructions
4.4.2 V 21 Undocking
1. Grab around both sides of the V 21, at the two side grip locations, with your palms firmly
pressing against front edges of the V 21, and your fingers staged to grip the side actuators.

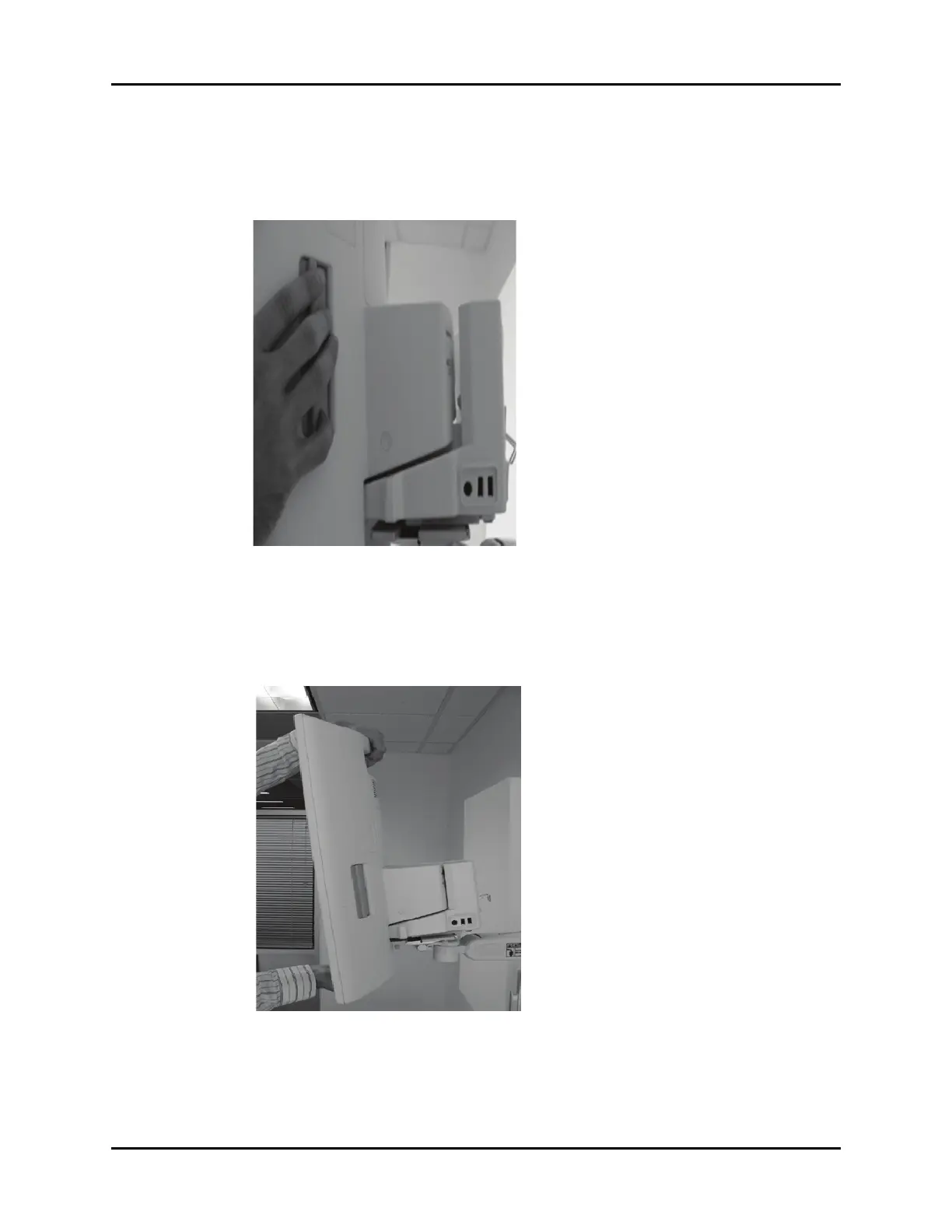

FIGURE 4-26
2. Close your grip against both actuators. The latch on the V Dock disengages, then the V 21
pushes forward from the V Dock.
3. Lift the V 21 up and away from the V Dock.
FIGURE 4-27
