Mixed Venous Oxygen Saturation (SvO2) (Optional) SvO2 Configuration

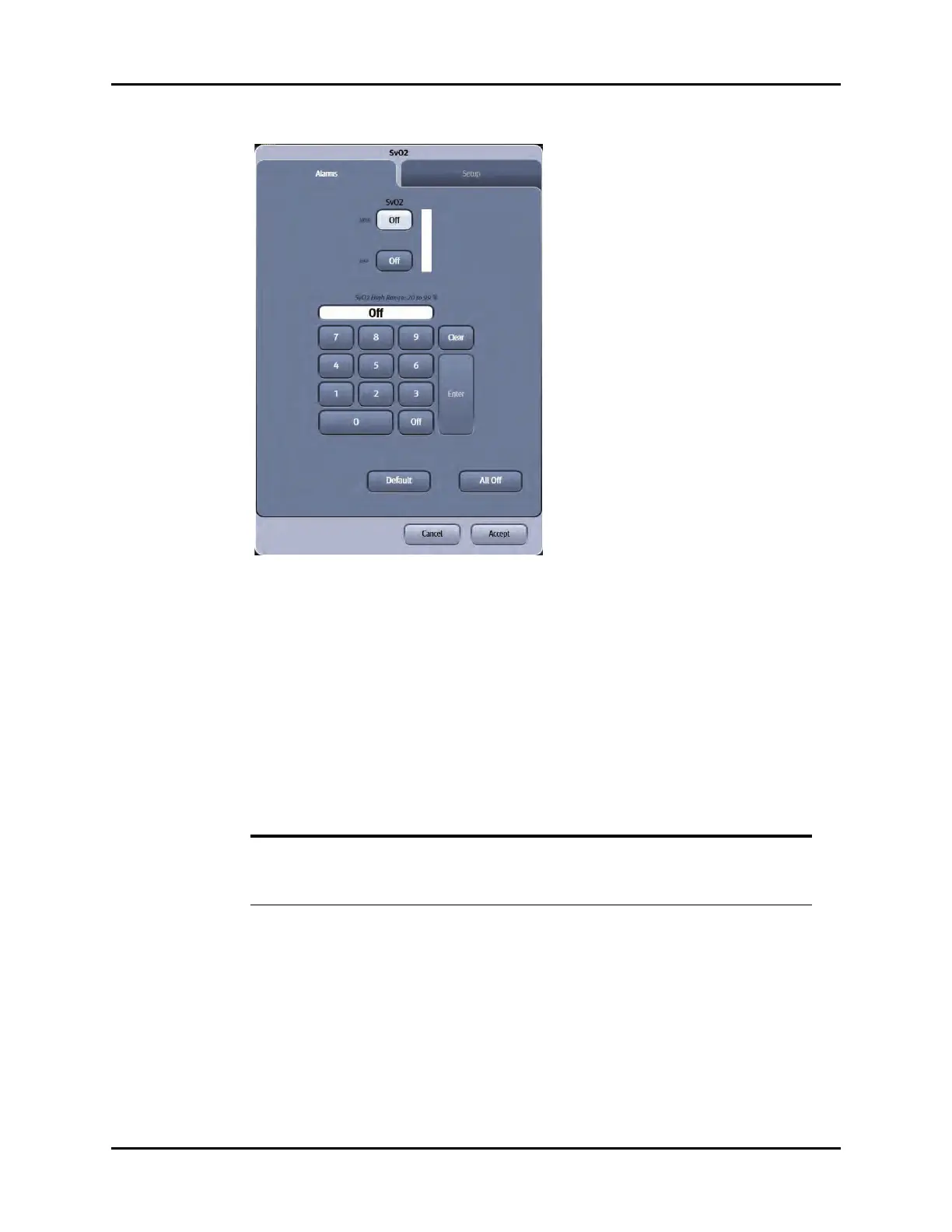

FIGURE 4-2 Example SvO2 Dialog (Alarms Tab)
4.2.2 Configuring SvO2 Alarms
For a full explanation about alarm responses and instructions for accessing and using these alarm
dialogs, refer to the Alarms chapter in the V Series Operating Instructions.
4.2.2.1 Alarm Limits: CCO/Hemo Tab
TABLE 4-1 lists the alarm limit ranges for the SvO2 parameter, which are contained in the CCO/Hemo
tab.
4.2.3 Alarm Responses: CCO/Hemo Tab
To display the alarm responses for the CCO/Hemo tab:
1. Select the Alarm tab from the Navigation Area.
2. Select the Responses button.
3. Select the CCO
/Hemo tab.
TABLE 4-1
PARAMETER
ALARM
LIMIT ADULT PEDIATRIC NEONATE
SvO2
Unit of Measure: %
Resolution: 1%
Invalid data: “- -”
High Limit Off,
20 to 99 Of
f, 20 to 99 N/A
Low Limit Off, 0 to 60 Of
f, 0 to 60 N/A
