Mindray V Series User Manual

Gases Tile Layouts Gases (Optional)
2 - 10 Addendum to V Series Operating Instructions
On the Main Screen of the V 12/V 21, the measurement values for anesthetic gases, N
2
O, O
2
, and CO
2
display in their digital tile, as shown in FIGURE 2-6.

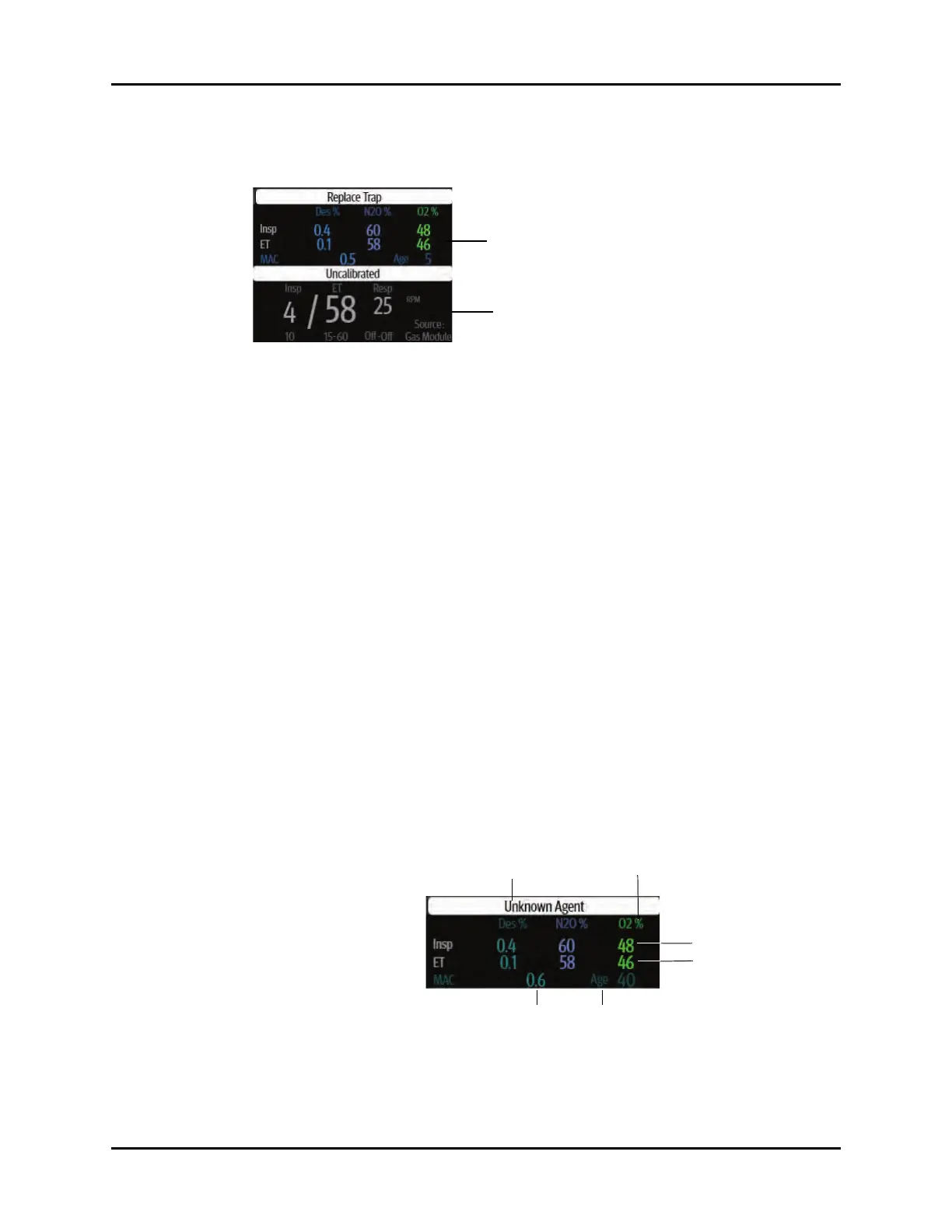

FIGURE 2-6 Example of measurement values for gases, N
2
O, O
2
, and CO
2
2.4.1 Measurement Limitations
The following factors may influence the accuracy of measurement:
• Leaks or internal venting of sampled gas
• Mechanical shock
• Cyclic pressure up to 10 kPa (100 cmH
2
O)
• Other sources of interference, if any.
2.5 Gases Tile Layouts
The Gases parameter is shown in a digital tile.
2.5.1 Gases Digital Tile Layout
The Gases digital tile displays:
1. Message area
2. Unit of measure
3. Insp Gases value
4. ET Gases value
5. Patient Age
6. MAC Value
FIGURE 2-7 Exa
mple Gases Digital Tile
Gases digital tile
CO
2
digital tile
3
4
6
5
1
2
