Non-Invasive Blood Pressure (NIBP) NIBP Dialog
Display Setup
To see the NIBP values, NIBP must be configured to display on the Main Screen. Refer to "Display
Options Dialog" on page 3-2 for additional information.
14.2 NIBP Dialog
The NIBP dialog (as shown in FIGURE 14-2) contains an Alarms tab and a Setup tab. A description of
each tab follows.
14.2.1 Navigating to the NIBP Dialog
• Select the NIBP digital tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the NIBP button.
The NIBP dialog displays (as shown in FIGURE 14-2).

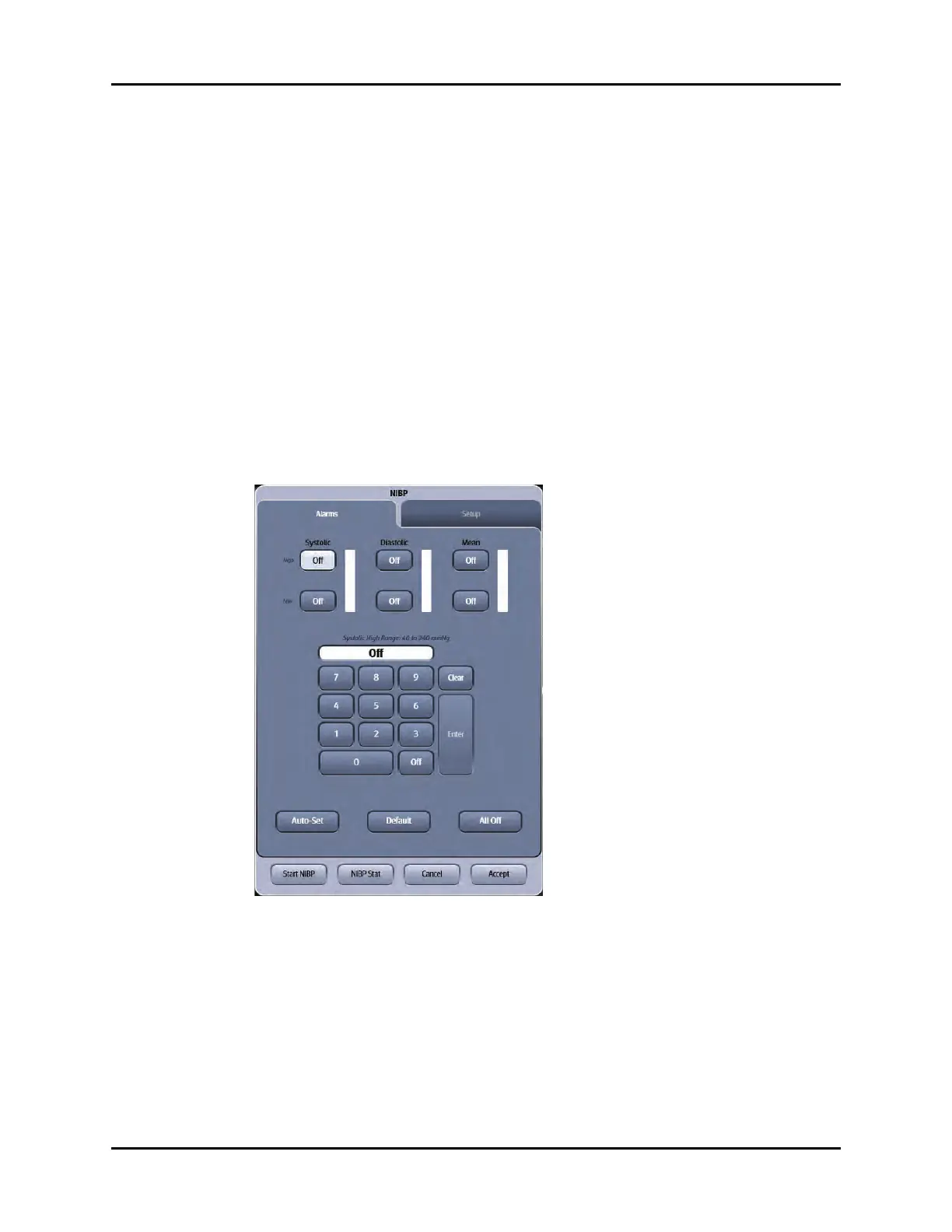

FIGURE 14-2 Example NIBP Dialog (Alarms Tab)
14.2.2 Configuring NIBP Alarm Limits
Refer to "Configuring Alarm Limits" on page 8-2 for additional information.
14.2.3 Configuring the NIBP Parameter
1. Select the NIBP digital tile.
2. Select the Setup tab (as shown in FIGURE 14-3).
