Mindray V Series - Configuring the CO2 Parameter Setup

CO2 Dialog CO2 Monitoring (Optional)
17 - 4 V Series Operating Instructions
17.2.3 Configuring the CO
2
Parameter Setup
1. Select the CO
2
digital or waveform tile.
2. Select the Setup tab (as shown in FIGURE 17-3).
NOTE: The current parameter setting displays in bold to the right of each
button.

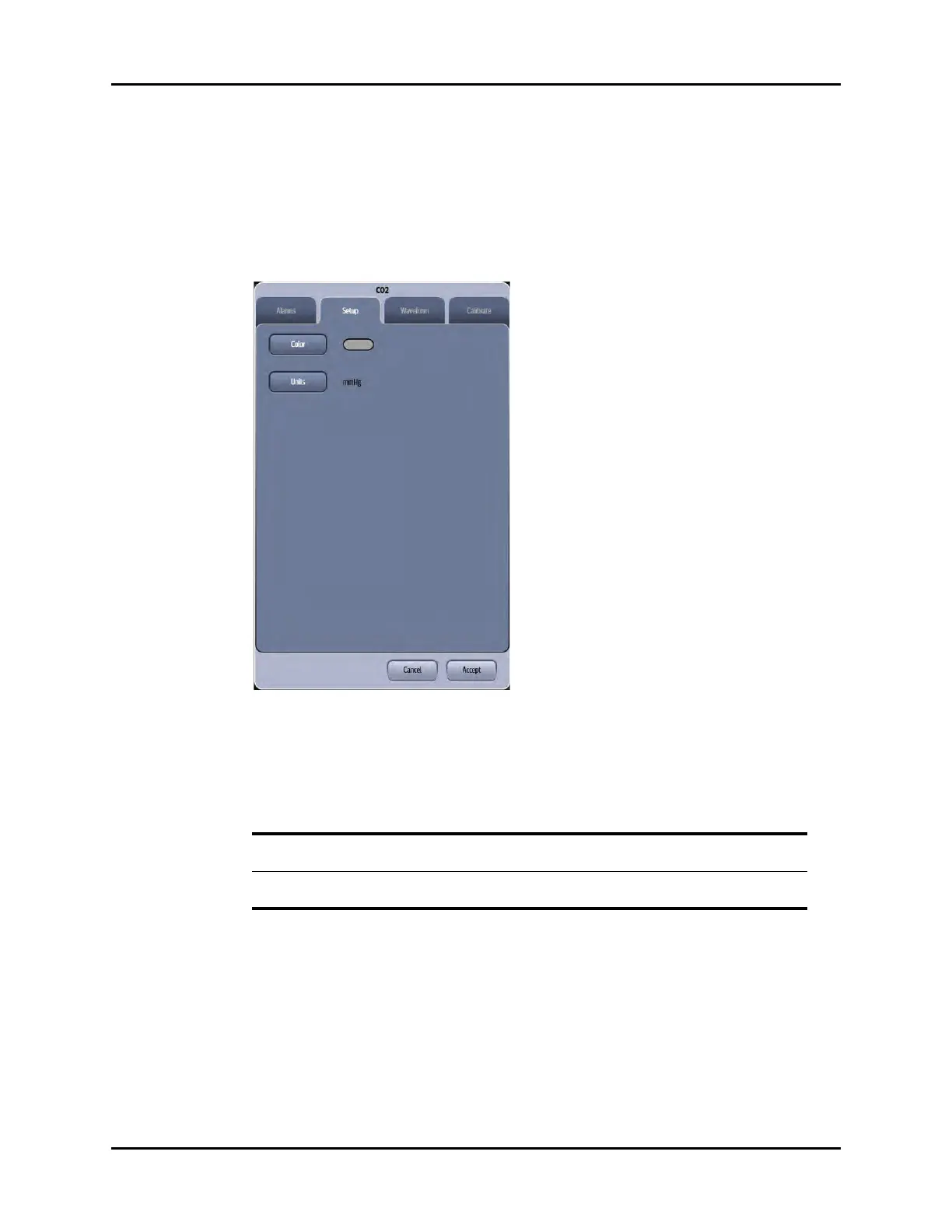

FIGURE 17-3 Example CO
2
Dialog (Setup Tab)
3. Select the buttons described in TABLE 17-1 to configure the tab.
.
4. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
TABLE 17-1
FUNCTION DESCRIPTION SETTINGS*
Color Configures the CO
2
parameter and
waveform color.
16 distinct colors
Default color is gray.
Units Configures the units of measure for the
CO
2
parameter.
mmHg, %, kPa
* The factory default configuration settings are in bold.
