Temperature Dialog Temperature (Temp)
13 - 4 V Series Operating Instructions
13.2.3 Configuring the Temperature Parameter
1. Select the Temp digital tile.
2. Select the Setup tab (as shown in FIGURE 13-3).
NOTE: The current parameter setting displays in bold to the right of the
button.

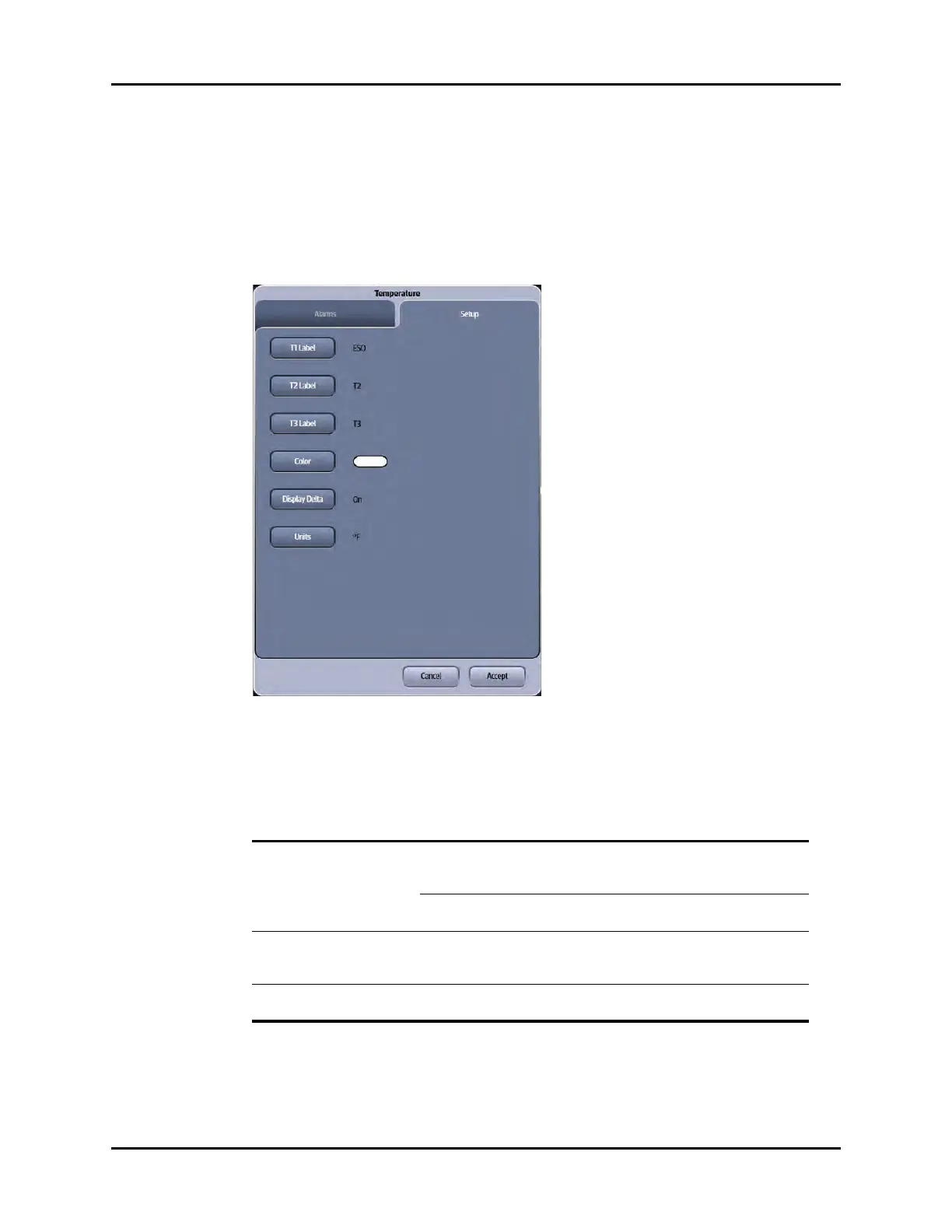

FIGURE 13-3 Example Temperature Dialog (Setup Tab)
3. Select the buttons described in TABLE 13-1 to configure the tab.
4. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
TABLE 13-1
BUTTON DESCRIPTION / COMMENTS CHOICES*
T<channel number>Label Configures the temperature channel
label.
T<channel number> 1, 2 or 3,
ESO, NAS, REC, BLA, AXI, SKI, and
ICT.
Color Configures the temperature
parameter and graphical plot color.
16 distinct colors
Factory default color is white.
Display Delta Configures whether delta
temperature displays in the
temperature tile.
On, Off
Units Configures the temperature unit of
measure.
°C
°F
* The factory default configuration settings are in bold.
