4.2.3 Battery Installation

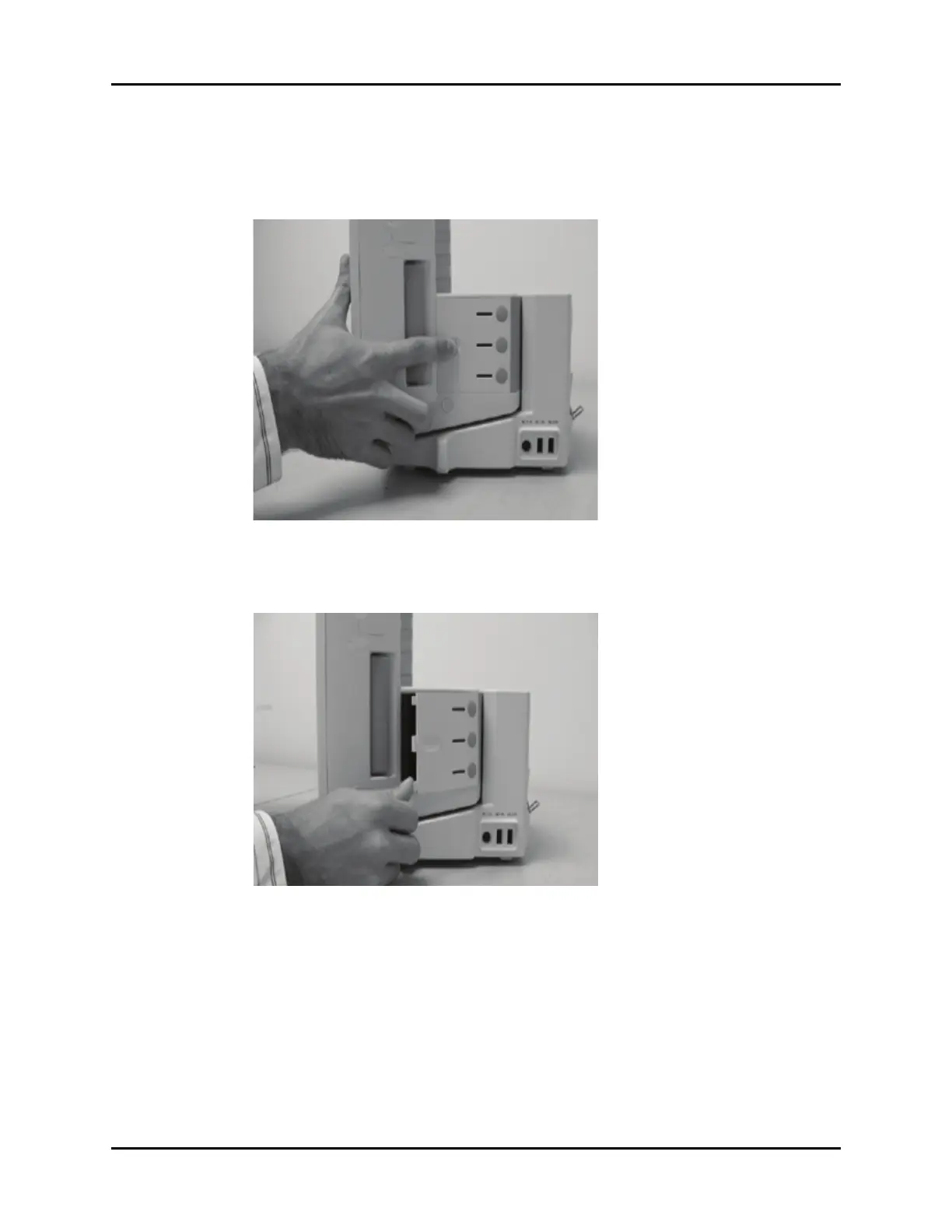

1. With one finger, press against the finger grip on the battery door (shown in FIGURE 4-4), then
slide the door backward.
FIGURE 4-4
2. With a finger, grab around the front edge of the door and swing it open (shown in FIGURE 4-5).
FIGURE 4-5
3. Reposition your hand against the inside surface of the door to keep it in the open position
(shown in FIGURE 4-6).
