V Series Operating Instructions 1 - 11
General Product Description V Dock Physical Views
1.4.2 Right Side View
1. Serial Bus 3 (SB 3)
2. V Hub Connector (MR 4)

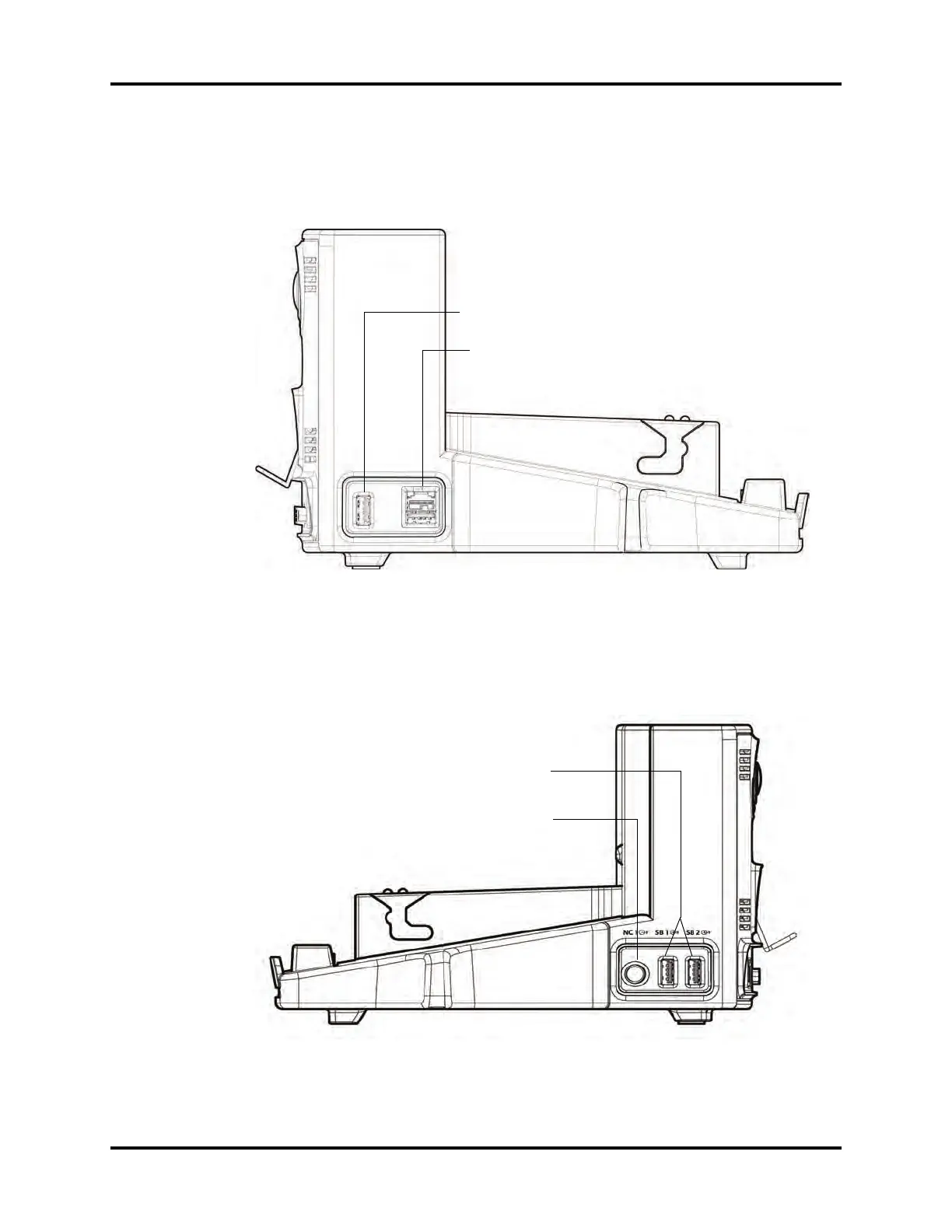

FIGURE 1-8 Example V 12 V Dock Right View
1.4.3 Left Side View
1. Serial Bus (SB 1-2)
2. Nurse Call (NC 1)
FIGURE 1-9 Example V 12 V Dock Left Side View
1
2
1
2
