Continuous Cardiac Output (CCO) & Continuous Hemodynamics (Optional) Digital Tiles

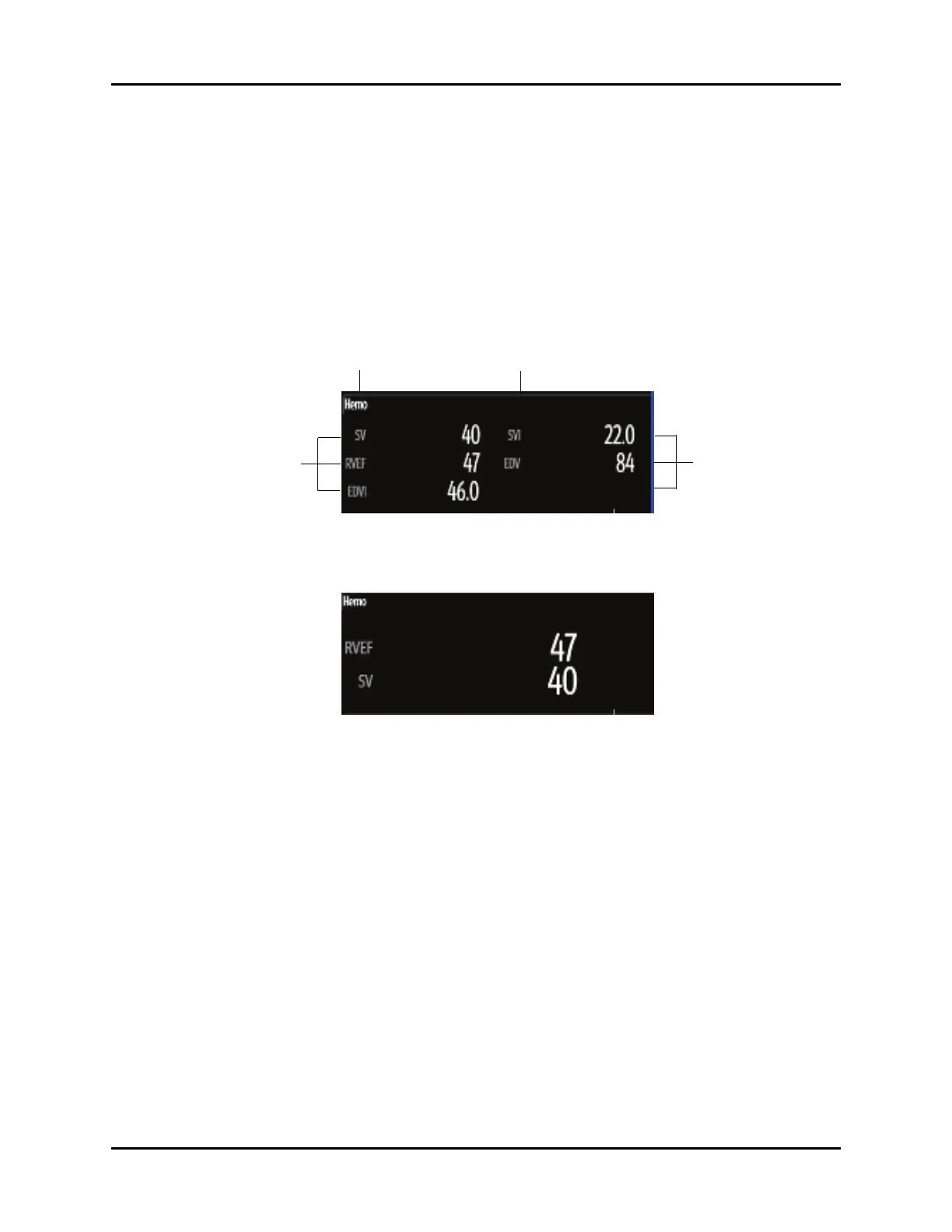

FIGURE 1-8 Example Hemo Digital Tile (Two column format)
FIGURE 1-9 Example Hemo Digital Tile (One column format)
1.4.10 About the Hemo Tile
• The Hemo tile does not display units of measure.
• The Hemo tile can display up to six (6) parameters in a two column format.
• The Hemo tile can display up to three (3) parameters in the one column format.
• RVEF • EDV
• RVEF STAT • EDVI
• SV • EDV STAT
• SVI • EDVI STAT
• SV STAT • ESV
• SVI STAT • ESVI
• SVV • ScVO2
