Continuous Cardiac Output (CCO) & Continuous Hemodynamics (Optional) Digital Tiles
1.4.5 CCO STAT Digital Tile Layout
The CCO STAT digital tile displays:
1. CCO STAT value
2. Message area
3. CCI STAT value
4. CCI STAT alarm limits
5. T Blood alarm limits
6. Units of measure
7. T Blood value
8. SVR or SVRI value
9. SVR or SVRI alarm limits
10. CCO STAT alarm limits

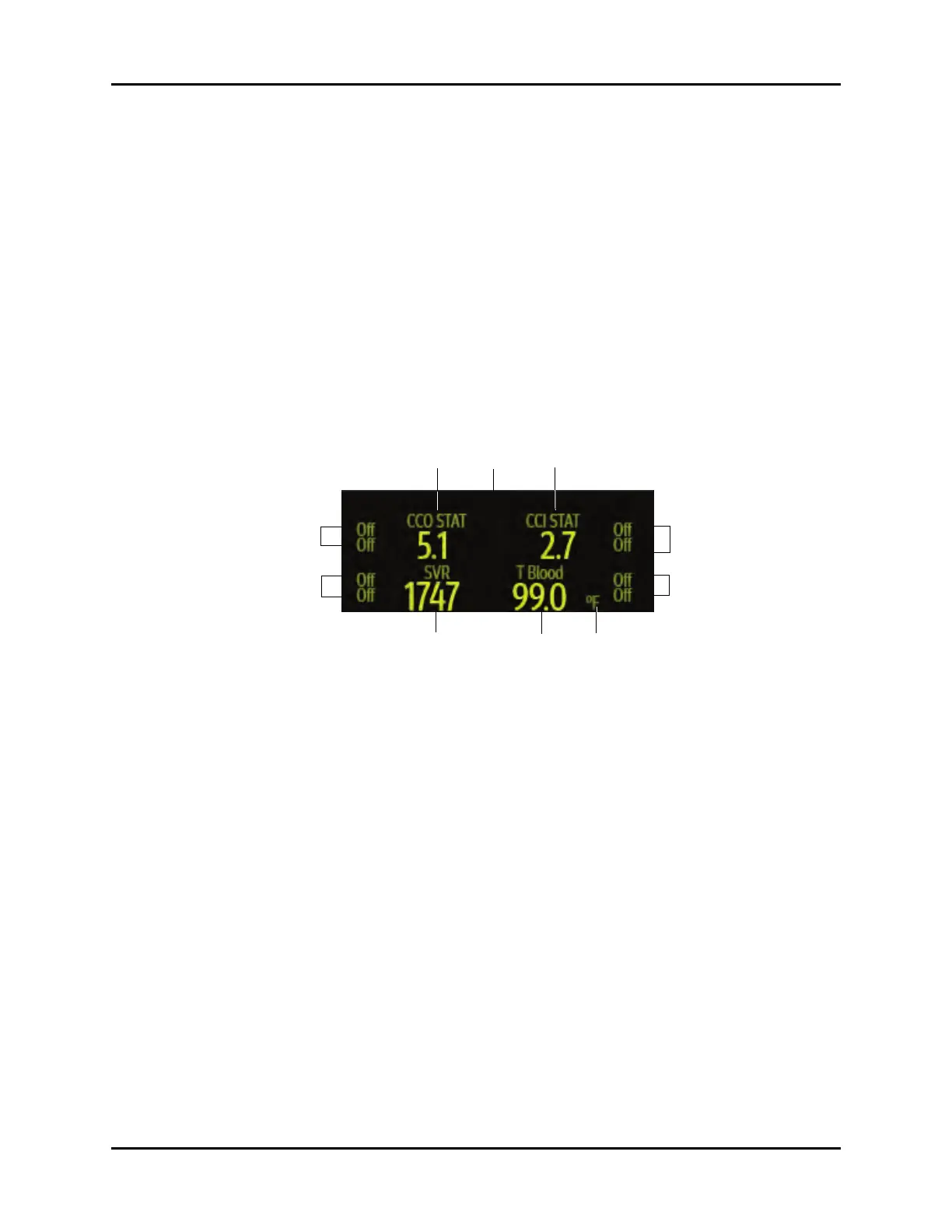

FIGURE 1-7 Ex
ample CCO STAT Digital Tile (with SVR enabled)
1.4.6 About the CCO STAT Tile
• The CCO STAT tile displays all CCO STAT in units of l/min with a resolution of 0.1 l/min.
• If the CCO STAT measurement is invalid, “- -” displays in place of digits.
1.4.7 CCO Alarms
Refer to the "Configuring CCO/Hemo Alarms" on page 1-4 for additional information.
