4.5.4 Module Removal
1. Look at the locked/unlocked indicator near the top left corner of the V Hub, and confirm that it is
in the unlocked position (with green background). If not, then follow the instructions for Module
Unlocking.
2. Grip around the desired module with your thumb positioned against the module release trigger
and your index finger (and/or other finger(s)) positioned in the large notch on the back of the
module.

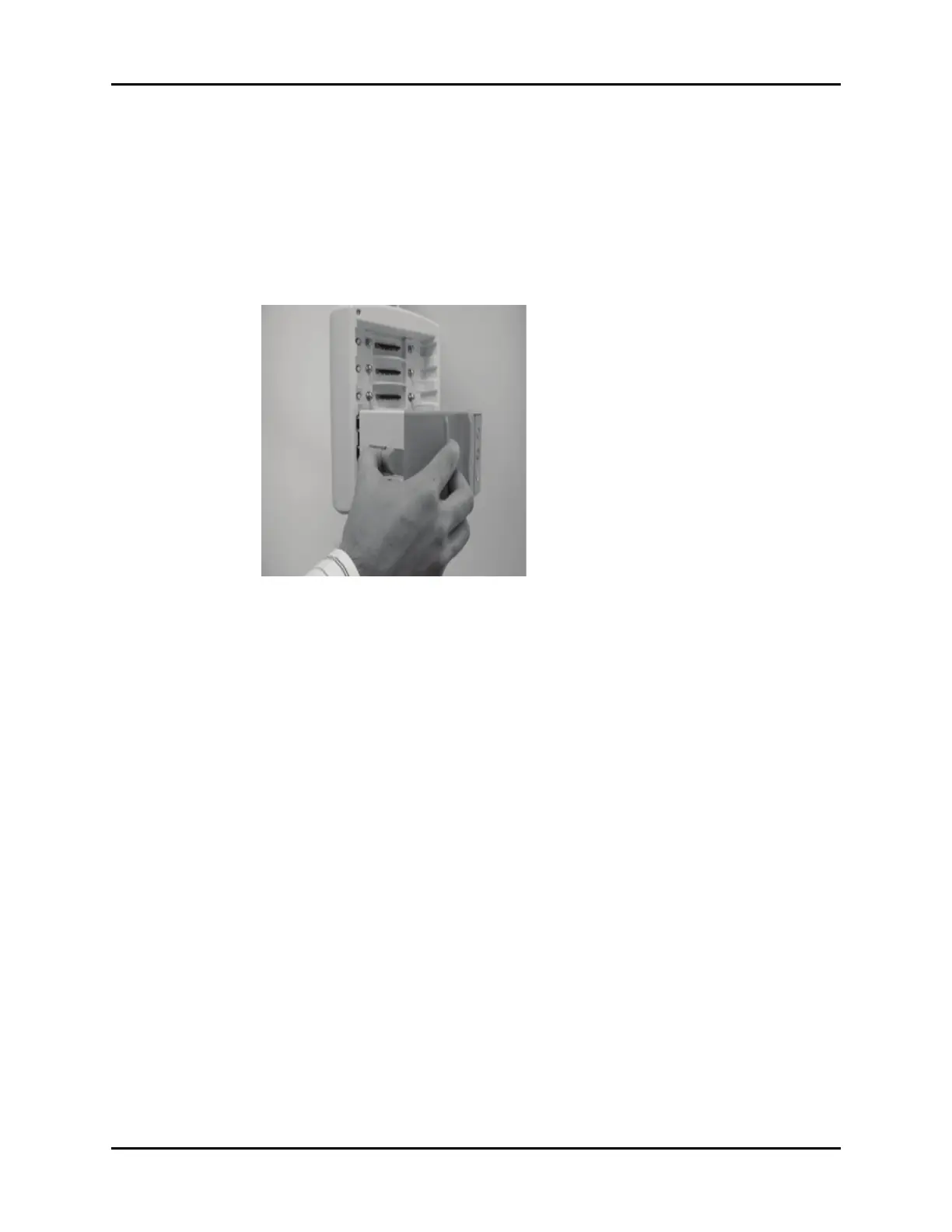

FIGURE 4-29
3. Depress the release trigger, and pull the module away from the V Hub.
