Introduction Reports
20 - 2 V Series Operating Instructions
20.1 Introduction
This chapter describes the V 12/V 21 reports and provides instructions on how to generate them
from the laser printer and thermal printer module.
Patient Sizes
Intended patient types for all these reports are Adult, Pediatric, and Neonate except when specified.
20.2 Print Setup
The Print Setup dialog controls which waveforms print in the waveform reports (for example,
Waveform Report, Event Detail Report). It also controls how often a waveform report prints when
configured for interval printing, and whether the report will print to the laser or thermal printer.

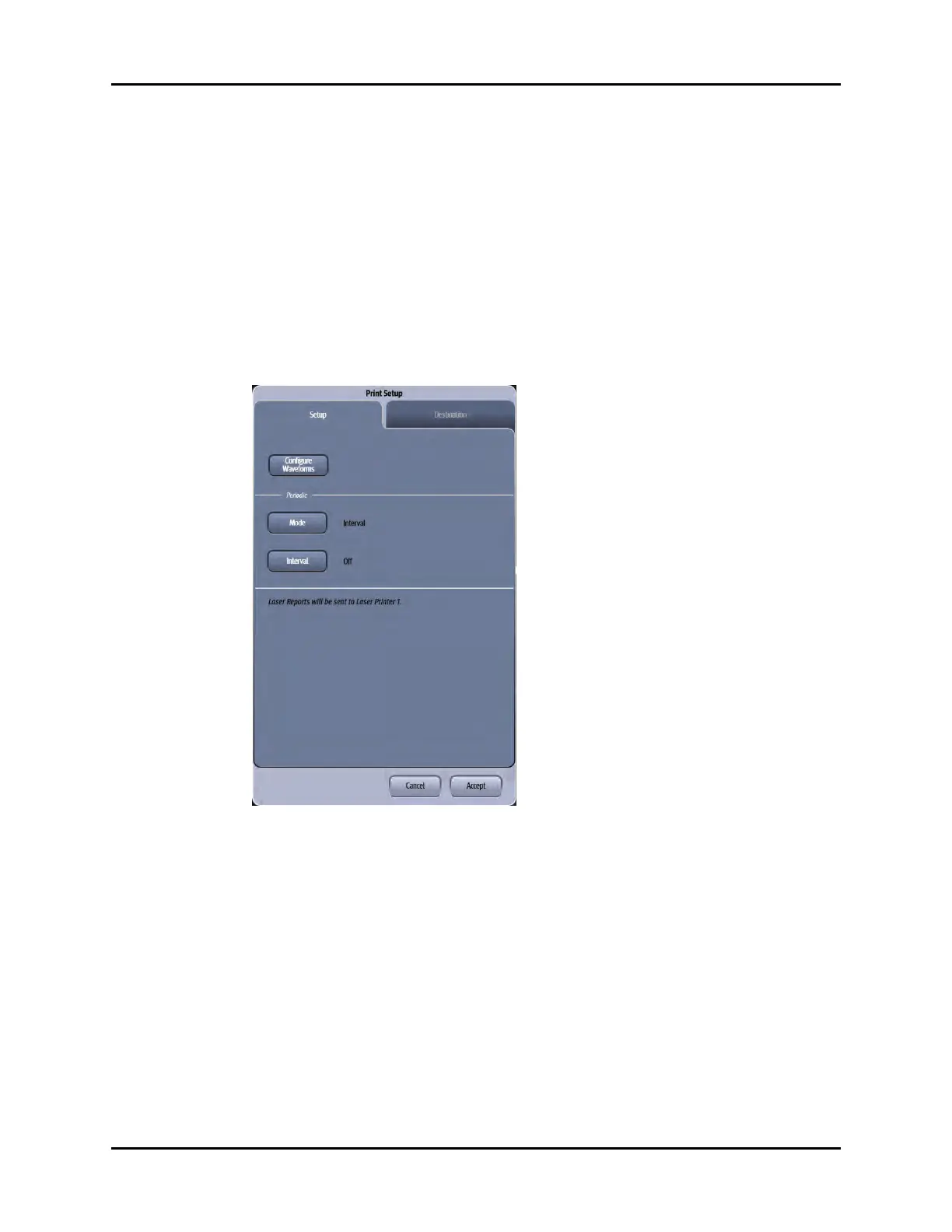

FIGURE 20-1 Example Print Setup Dialog
20.2.1 Navigating to the Print Setup Dialog
1. Select the Print tab from the Navigation Area.
2. Select the Print Setup button.
The Print Setup dialog displays (as shown in FIGURE 20-1).
To Next Page
