V Series Operating Instructions 2 - 13
Getting Started Audio Levels Dialog

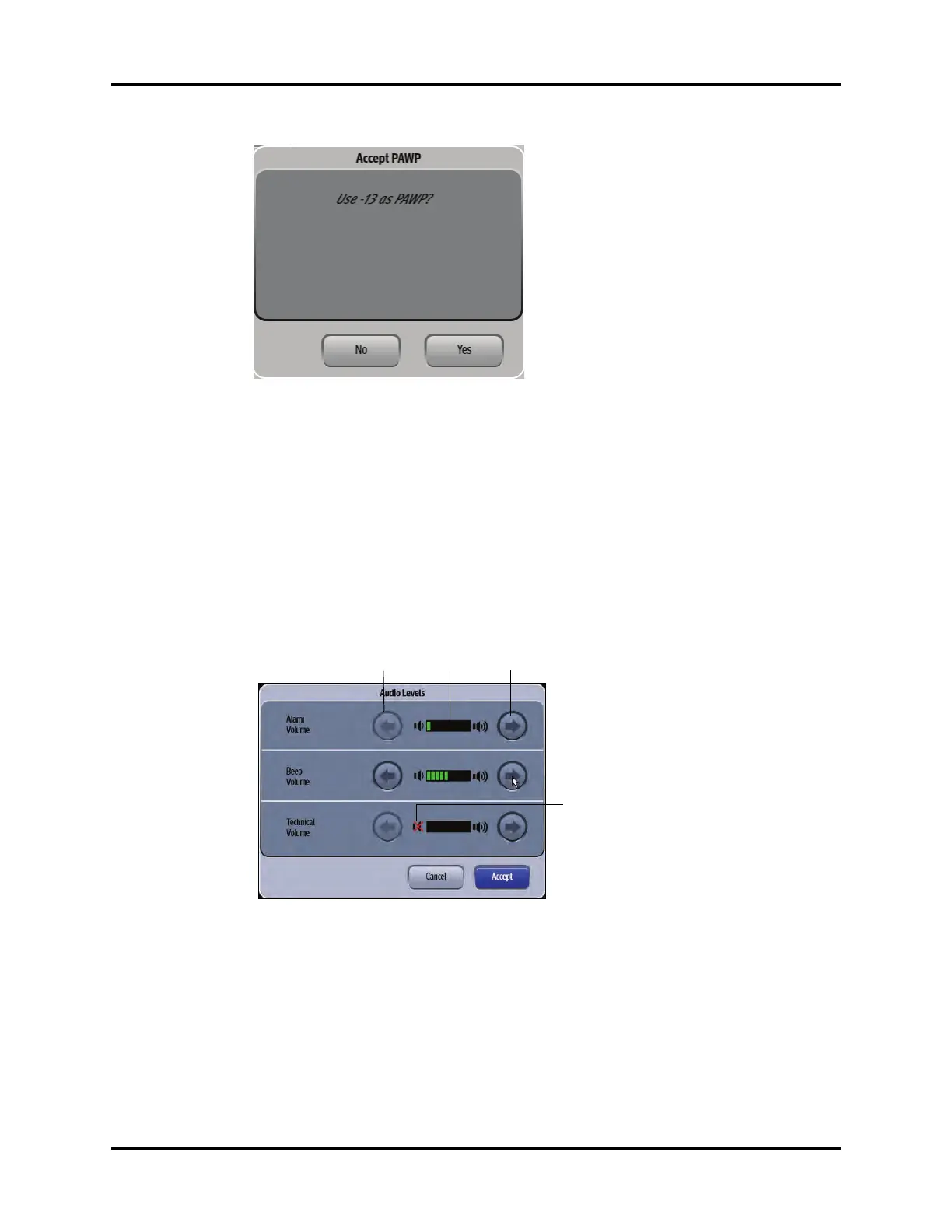

FIGURE 2-11 Example of a Confirmation Message Dialog
2.10 Audio Levels Dialog
The Audio Levels dialog (as shown in FIGURE 2-12) provides a means to configure the volume levels
for the physiological and technical alarms and the systole beep.
The Audio Levels dialog contains:
1. Decrease audio volume button
2. Audio level indicator
3. Increase audio volume button
4. Audio off indicator
FIGURE 2-12 Example Audio Levels Dialog
NOTE: The touch screen sound or mouse click sound are disabled while
making adjustments in the Audio Levels dialog. The purpose of this is
to be able to hear the adjusted tone without the clicking sound.
