Mindray V Series - Keyboard Dialog; Using the Keyboard

V Series Operating Instructions 2 - 11
Getting Started Keyboard Dialog

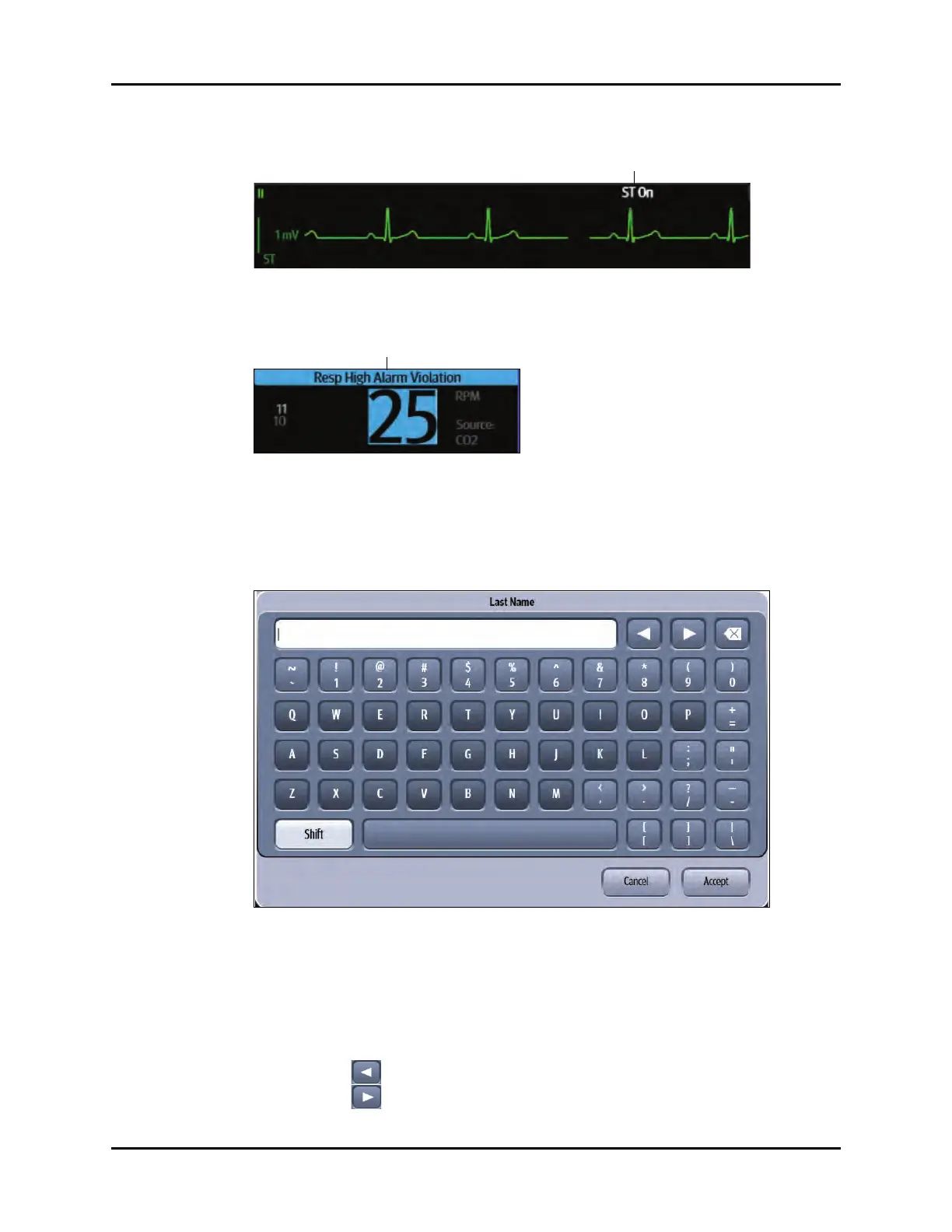

FIGURE 2-6 Example Waveform Tile Message Area
FIGURE 2-7 Example Digital Tile Message Area
2.7 Keyboard Dialog
The V 12/V 21 uses an on-screen keyboard which enables the clinician to enter alphanumeric
information such as patient demographics, drug names, and passwords.
T
FIGURE 2-8 Example Keyboard Dialog
2.7.1 Using the Keyboard
The on-screen keyboard functions similarly to a standard PC keyboard.
1. Using the touch screen, enter the desired alphanumeric text.
2. To edit the alphanumeric text:
• Select the arrow key to move the cursor to the left.
• Select the arrow key to move the cursor to the right.
Message Area
Message Area
