Mindray V Series - Alarm Responses: Neuro Tab; Configuring the bis Parameter

BIS Dialog Bispectral Index (BIS) (Optional)
19 - 4 V Series Operating Instructions
19.2.2.1 Alarm Limits: Neuro Tab
Refer to "Neuro Tab" on page 8-10 for additional information.
19.2.3 Alarm Responses: Neuro Tab
Refer to "Neuro Tab" on page 8-16 for additional information.
19.2.4 Configuring the BIS Parameter
• Select the BIS digital tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the BIS button.
4. Select the Setup tab.
The Setup dialog displays (as shown in FIGURE 19-3).
NOTE: The current parameter setting displays in bold to the right of each
button.

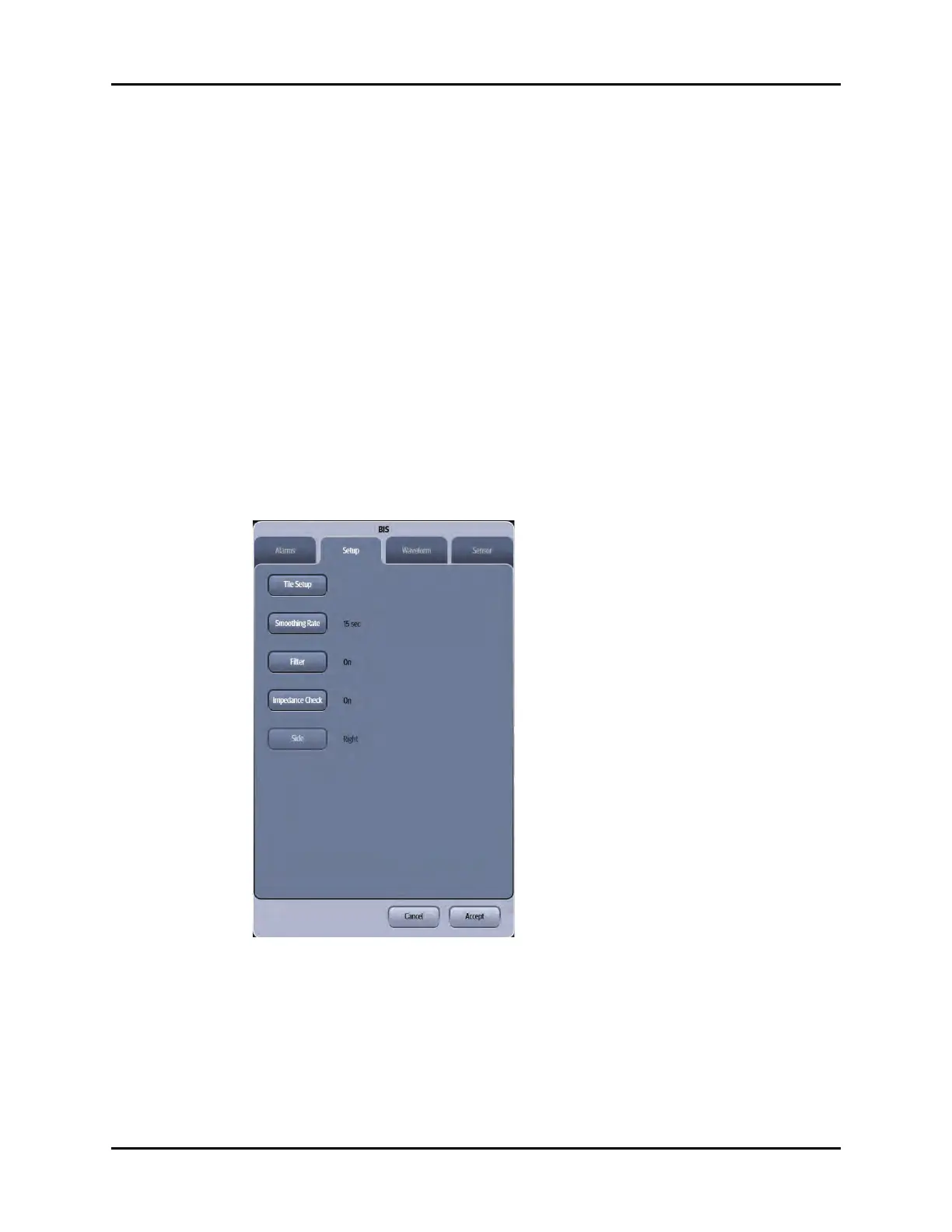

FIGURE 19-3 Example BIS Dialog (Setup Tab)
