Mindray V Series - IBP Digital Tile Layout; IBP Tile Layouts

IBP Tile Layouts Invasive Blood Pressure (IBP)
11 - 10 V Series Operating Instructions
11.5 IBP Tile Layouts
The IBP parameter is shown in a digital tile and a waveform tile format.
11.5.1 IBP Digital Tile Layout
The IBP digital tile displays:
1. Systolic values
2. Message area
3. Diastolic values
4. Unit of measure
5. Diastolic alarm limits
6. Mean alarm limits
7. Mean value
8. Systolic alarm limits
NOTE: When displaying a pulsatile pressure, the format will be SYS/DIA
(MEAN) (as shown in FIGURE 11-9). When displaying a non-pulsatile
pressure, the format will be MEAN (SYS/DIA) (as shown in FIGURE 11-
10).

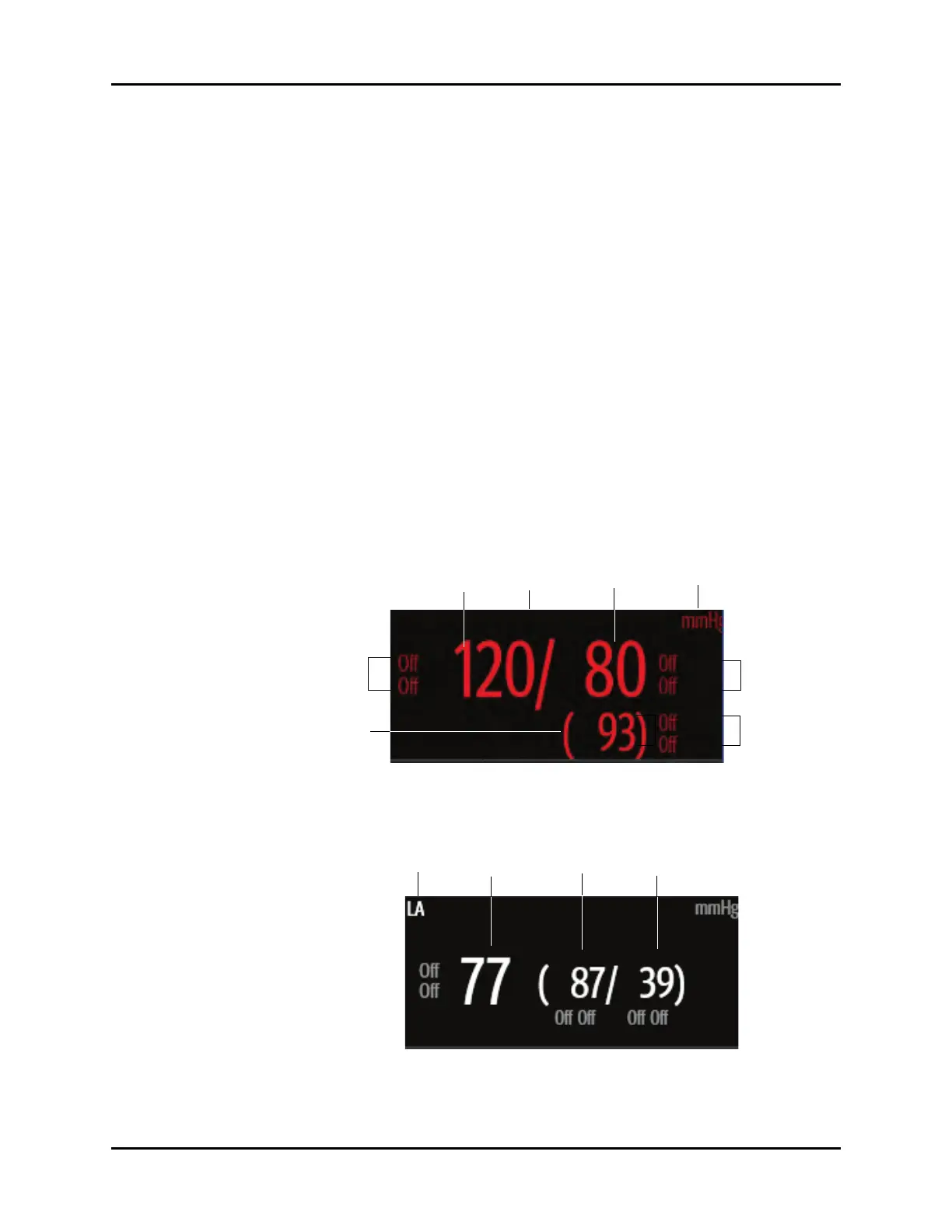

FIGURE 11-9 Example IBP Digital Tile (Pulsatile)
FIGURE 11-10 Example IBP Digital Tile (Non-Pulsatile)
421 3
5
6
7
8
1 7 1 3
