15.1 Introduction
This chapter describes the SpO
2
function in detail including monitoring an SpO
2
measurement,
configuring alarm limits, waveform color, and waveform speed.
Pulse oximetry is a continuous and non-invasive measurement of the amount of oxygen attached to
the hemoglobin in red blood cells. SpO
2
is an estimation of arterial oxygen saturation. The V 12/V 21
comes standard with Nellcor® SpO
2
or Masimo SpO
2
which measures the SpO
2
high and low limits.
The V 12/V 21 is calibrated to display functional oxygen saturation.
Patient Sizes
Intended patient types: Adult, Pediatric, Neonate.
VPS Connector
The VPS module supports one (1) SpO
2
connector. Refer to "Taking an SpO2 Measurement" on page
15-7 for additional information.

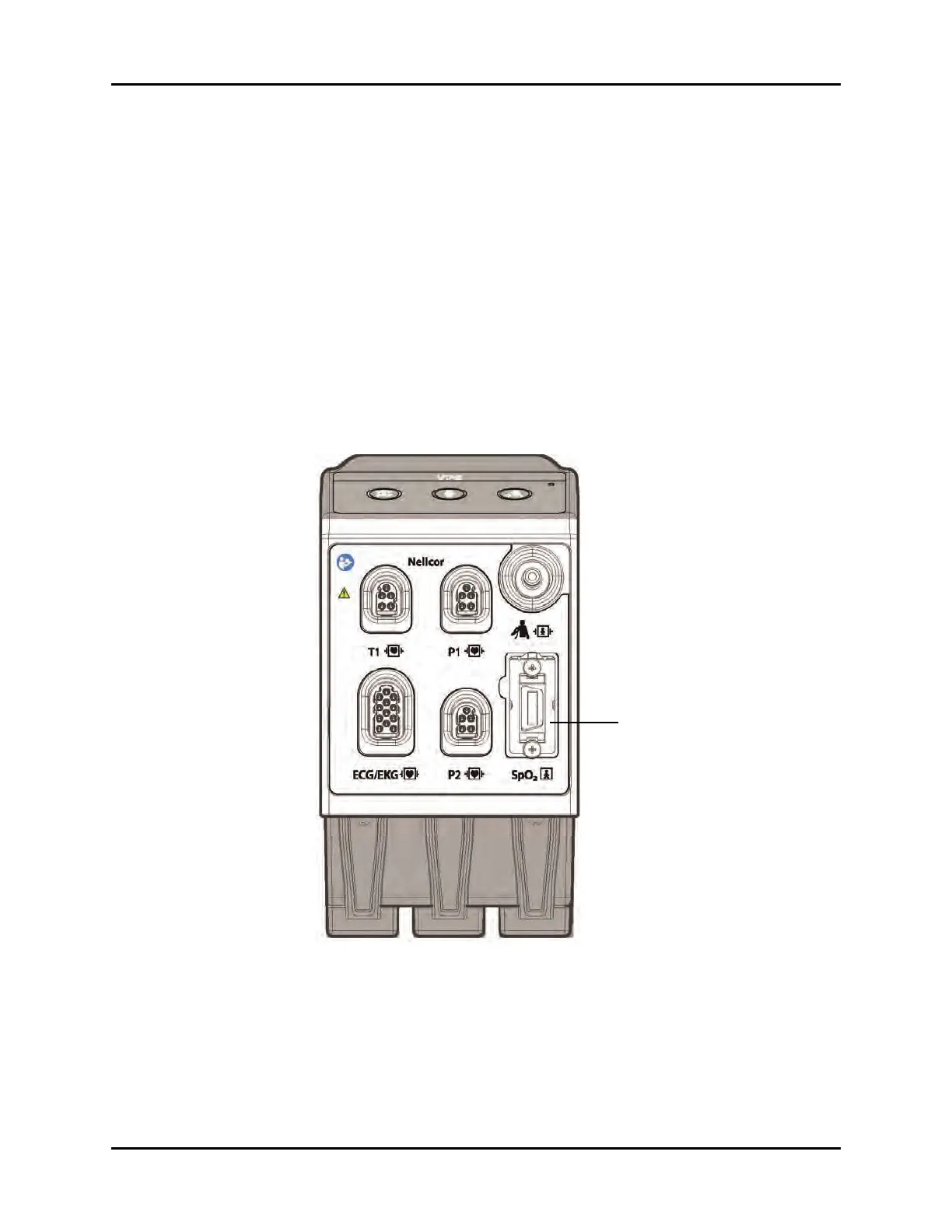

FIGURE 15-1 Example Nellcor VPS SpO
2
Connector
Display Setup
To see the SpO
2
values, SpO
2
must be configured to display on the Main Screen. Refer to "Display
Options Dialog" on page 3-2 for additional information.
SpO
2
Connector
