V Series Operating Instructions 19 - 3
Bispectral Index (BIS) (Optional) BIS Dialog
19.2 BIS Dialog
The BIS dialog (as shown in FIGURE 19-2) contains an Alarms tab, Setup tab, Waveform tab, and a
Sensor tab. A description of each tab follows.
19.2.1 Navigating to the BIS Dialog
• Select the BIS digital tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the BIS button.
The BIS dialog displays (as shown in FIGURE 19-2).

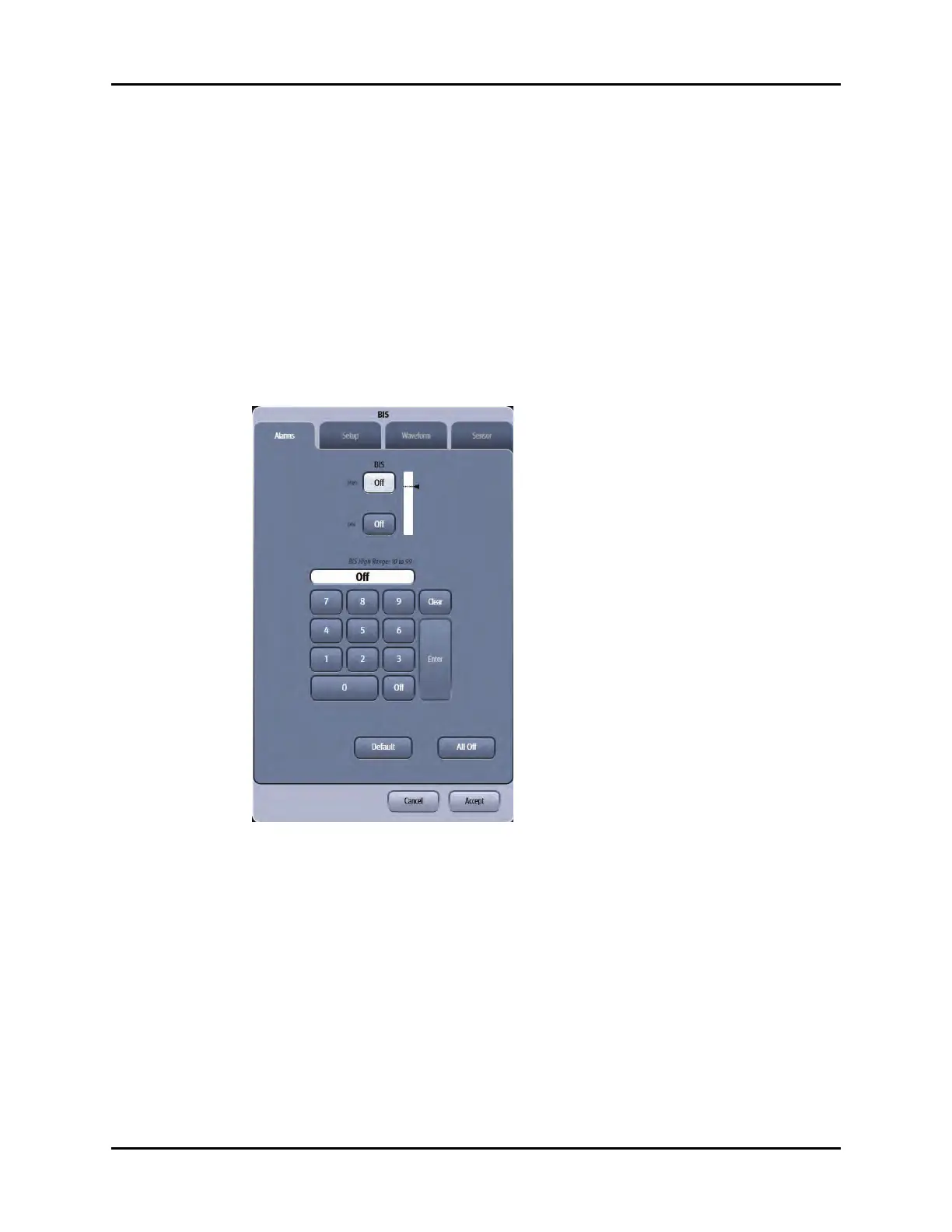

FIGURE 19-2 Example BIS Dialog (Alarms Tab)
19.2.2 Configuring BIS Alarms
For a full explanation about alarm responses and instructions for accessing and using these alarm
dialogs, refer to the "Alarms" on page 8-1.
