V Series Operating Instructions 18 - 3
Cardiac Output (CO) (Optional) Cardiac Output Dialog
18.2 Cardiac Output Dialog
The Cardiac Output dialog (as shown in FIGURE 18-2) contains an Alarms tab and Setup tab. A
description of each tab follows.
18.2.1 Navigating to the Cardiac Output Dialog
• Select the CO digital tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the CO button.
The Cardiac Output dialog displays (as shown in FIGURE 18-2).

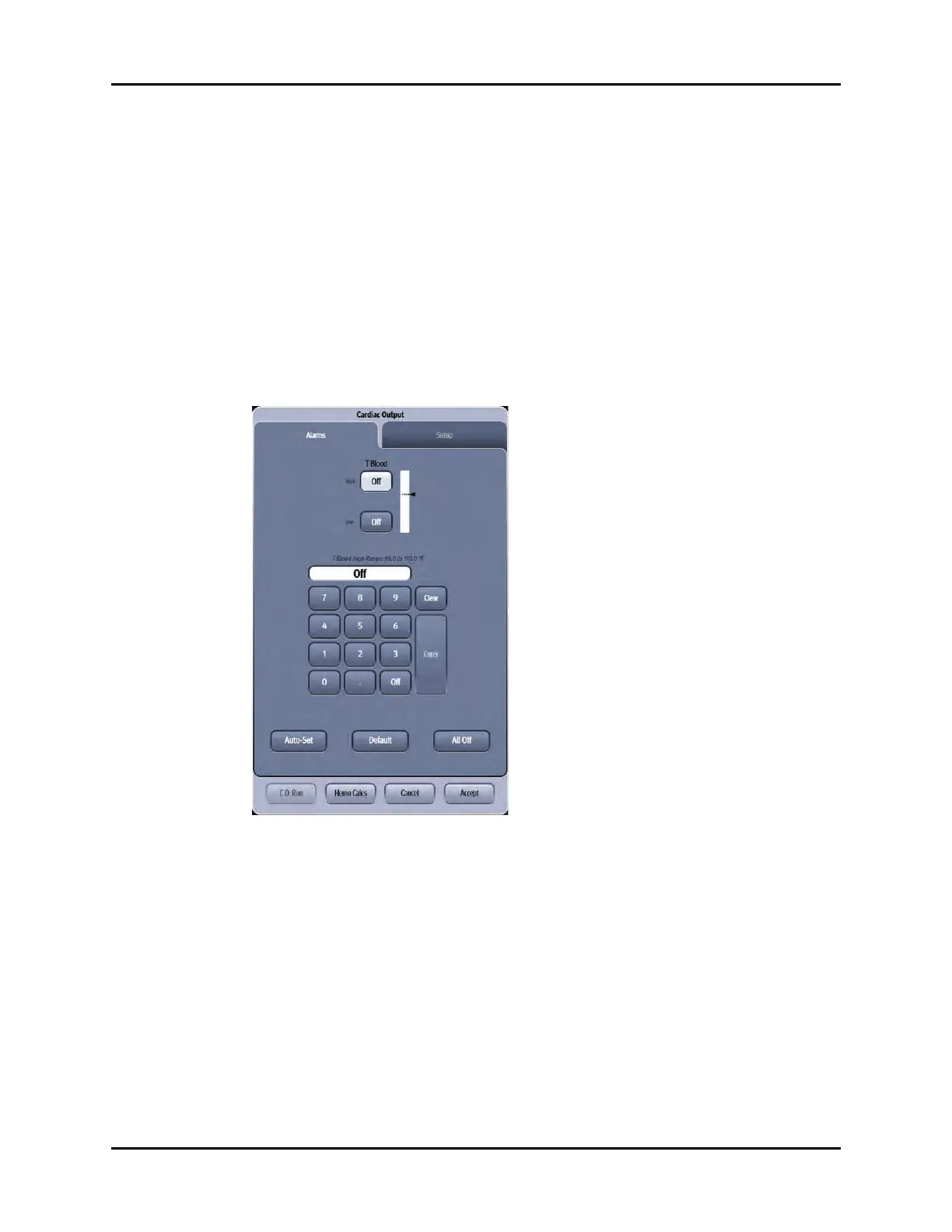

FIGURE 18-2 Example Cardiac Output Dialog (Alarms tab)
18.2.2 Configuring TBlood Alarm Limits
There are no alarm limits settings for Cardiac Output. The alarm limits are for blood temperature or T
Blood. Refer to "Configuring Alarm Limits" on page 8-2 for additional information.
