Pulse Oximetry (SpO2) SpO2 Dialog
15.2 SpO
2
Dialog
The SpO2 dialog (as shown in FIGURE 15-2) contains an Alarms tab, Setup tab, and a Waveform tab.
A description of each tab follows.
15.2.1 Navigating to the SpO
2
Dialog
• Select the SpO
2
digital or waveform tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the SpO2 button.
The SpO2 dialog displays (as shown in FIGURE 15-2).

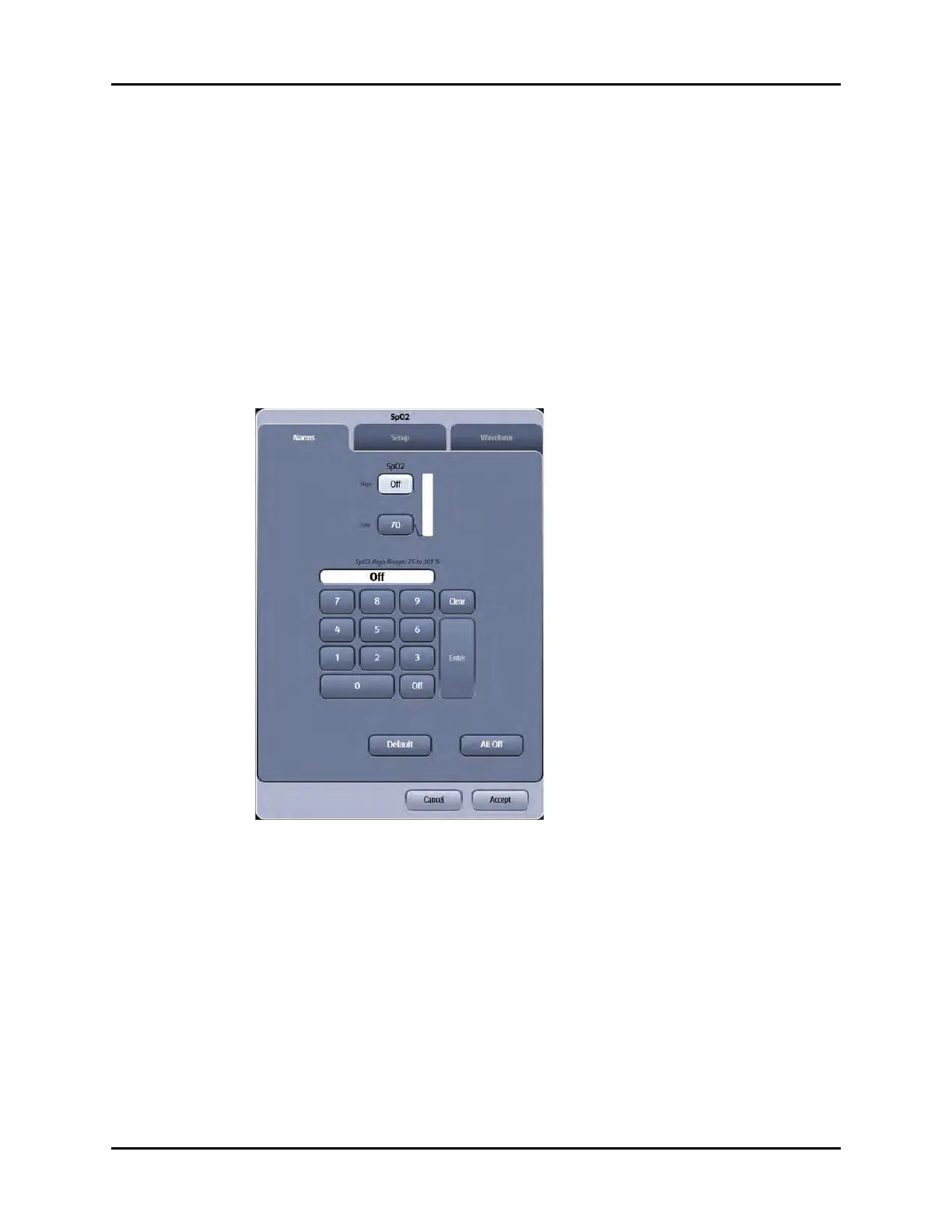

FIGURE 15-2 Example SpO
2
Dialog (Alarms tab)
15.2.2 Configuring SpO
2
Alarm Limits
Refer to "Configuring Alarm Limits" on page 8-2 for additional information.
15.2.3 Configuring the SpO
2
Parameter Setup
1. Select the SpO
2
digital or waveform tile.
2. Select the Setup tab (as shown in FIGURE 15-3).
NOTE: The current parameter setting displays in bold to the right of the each
button.
