V Series Operating Instructions 15 - 11
Pulse Oximetry (SpO2) SpO2 Tile Layouts
Nellcor Only Messages
Masimo Only Messages
15.4.5 SpO
2
Waveform Tile Layout
The SpO
2
waveform tile displays:
1. Tile name
2. Pleth waveform
3. Signal Indicator Quality (SIQ)

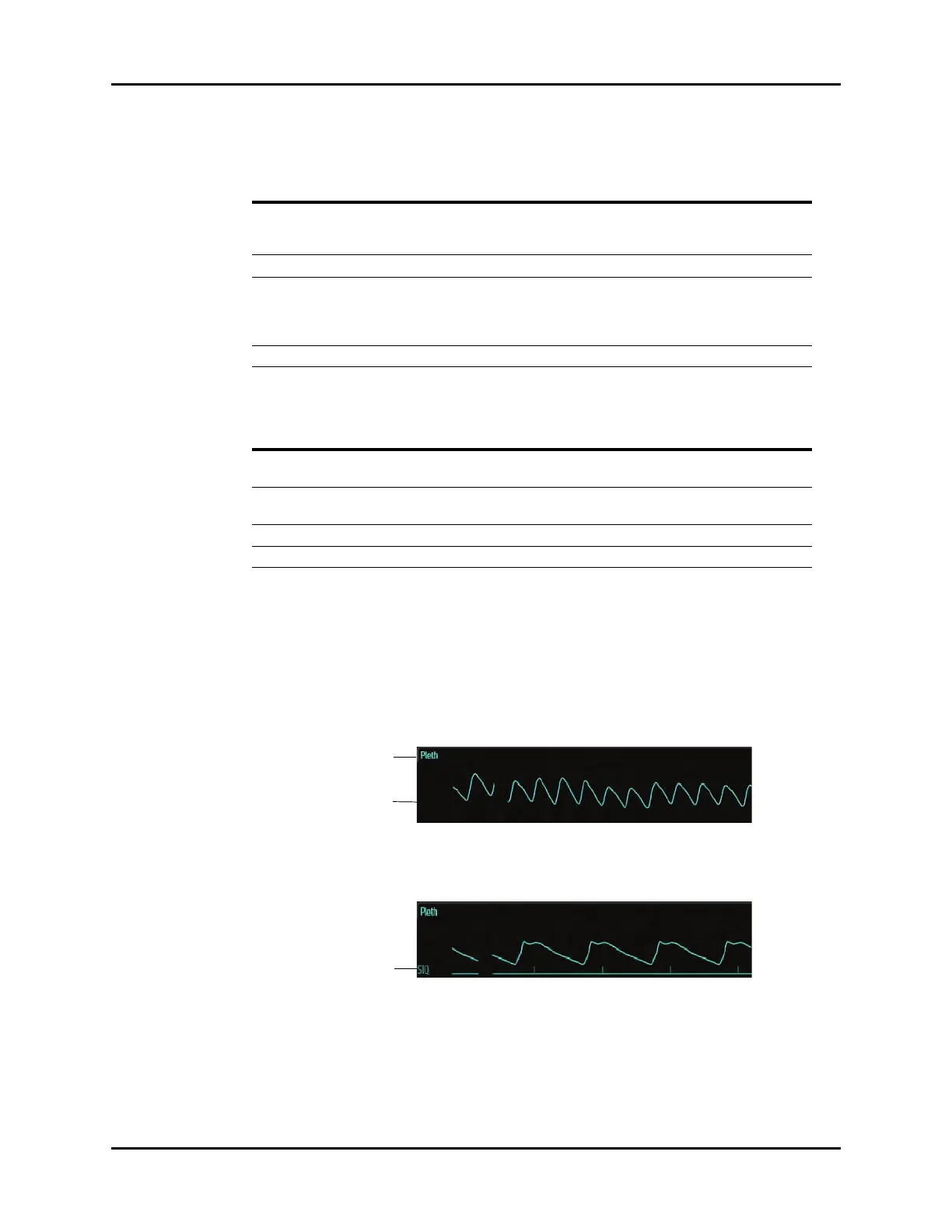

FIGURE 15-7 Example Nellcor SpO
2
Waveform Tile
FIGURE 15-8 Example Masimo SpO
2
Waveform Tile (SIQ enabled)
MESSAGE DETAILS
No Pulse The Nellcor status indicates no detectable pulse is
measured and all other measurement conditions are
normal.
Check Sensor Indicates that a faulty sensor was detected.
Sat-Seconds The Nellcor status indicates that a Sat-Seconds alarm is
active. Sat-Seconds limit controls the time that the % SpO
2
level may fall below the alarm limit before an audible alarm
sounds.
Motion alarm message The Nellcor status indicates that a motion is detected.
MESSAGE DETAILS
Unrecognized Sensor Indicates that the Masimo board does not recognize the
sensor.
Too Much Light Indicates that there is too much ambient light to take a
measurement.
Low Perfusion Indicates that the patient’s perfusion is low.
Defective Sensor Indicates that a faulty sensor was detected.
1
2
3
