16 - 8 V Series Operating Instructions
• A clinician has observed clinically questionable arrhythmia calls
• Initiate a relearn if learning occurred during a leads off condition.
• The ECG lead set is manually changed at the bedside monitor.
16.3 ST Tile Layouts
The ST parameter is shown in a digital tile and a ST Rep (Representative) Beat format.
16.3.1 ST Digital Tile Layout
The ST digital tile displays:
1. Tile name
2. Message area
3. Units of measure
4. Lead identifier
5. Current and reference values

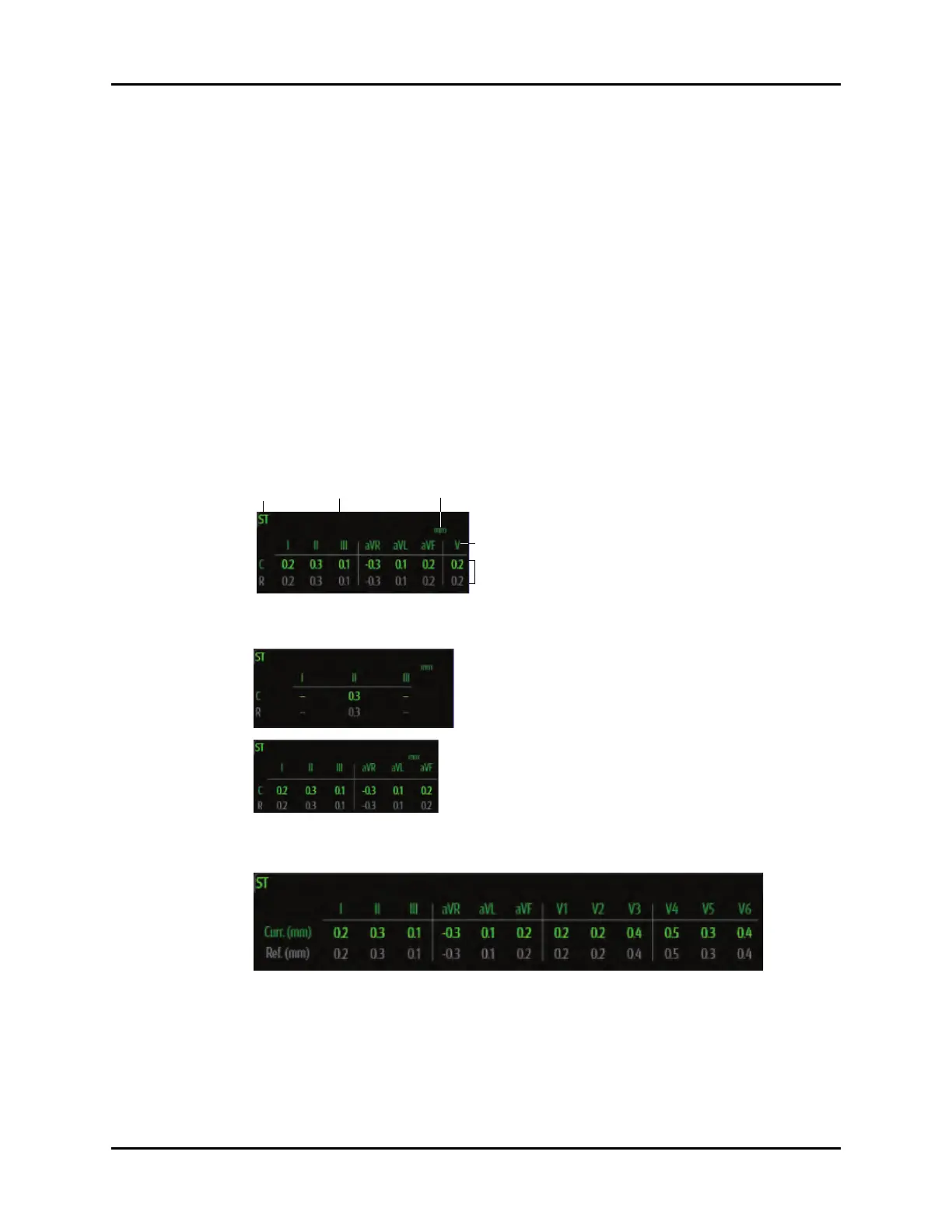

FIGURE 16-5 Example 5-Lead ST Digital Tile
Example 3-Lead Digital Tile
FIGURE 16-6 Example 12-Lead Digital Half Tile
FIGURE 16-7 Example 12-Lead Digital Full Tile
3
4
2
1
5
