ECG – Arrhythmia Arrhythmia Digital Tile Layout
9.3 Arrhythmia Digital Tile Layout

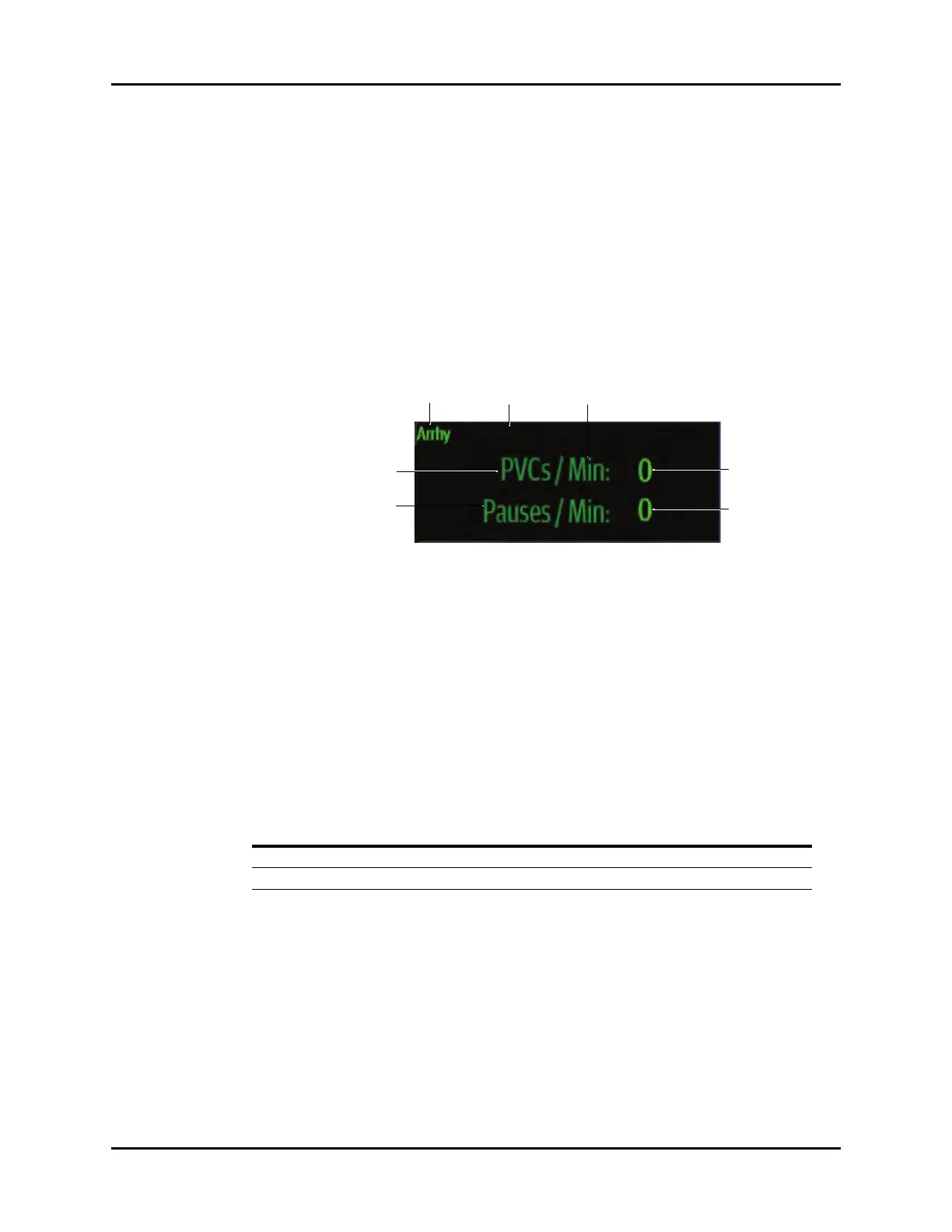

The Arrhythmia digital tile displays:
1. Tile name
2. Message area
3. Units of measure
4. PVC per minute value
5. Pauses per minute value
6. Pauses per minute label
7. PVCs per minute label
9.3.1 About the Arrhythmia Tile
• The Arrhy tile displays the PVC/Min in a 1 PVC/min resolution.
• The Arrhy tile displays the Pauses/Min in a 1 Pause/min resolution.
• If the PVC/Min or Pauses/Min measurement is invalid, “- -” displays in place of digits.
9.3.2 Arrhythmia Alarms
Refer to "Arrhythmia Alarms" on page 9-26 for additional information.
9.3.3 Message Area
The message area provides information about the current state of the Arrhy parameter. If there is
more than one message to display, the messages scroll.
1
2
3
4
5
7
6
MESSAGE DETAILS
PVCs Per Minute Alarm Indicates that the value is either equal to or higher than the set alarm limits.
Pauses Per Minute Alarm Indicates that the value is either equal to or higher than the set alarm limits.
