22.1 Hemodynamics Calculations
Hemodynamic calculations are a set of values used to determine the hemodynamic status of the
patient. The following values are necessary for these calculations: height, weight, CO, HR, Mean ART,
Mean PA, PAWP and Central Venous Pressure (CVP).
All manually entered values (such as PAWP) are denoted with an asterisk (*).
Patient Sizes
Intended patient types: Adult, Pediatric. The Hemodynamic Calculations are not available when the
patient size is set to Neonate.
VPS
Hemodynamic calculations are part of the V 12/V 21 and do not function as part of the VPS.
22.2 Hemodynamics Dialog
The Hemodynamic dialog (as shown in FIGURE 22-1) contains a Calculator tab and a Log tab. A
description of each tab follows.
22.2.1 Navigating to the Calculator Tab
• Select the Procedures tab, then select the Hemo Calculations button.
The Hemodynamics dialog displays (as shown in FIGURE 22-1)
OR
1. Select the Tools tab from the Navigation Area.
2. Select the Calculators button, then select the Hemo Calculations button.

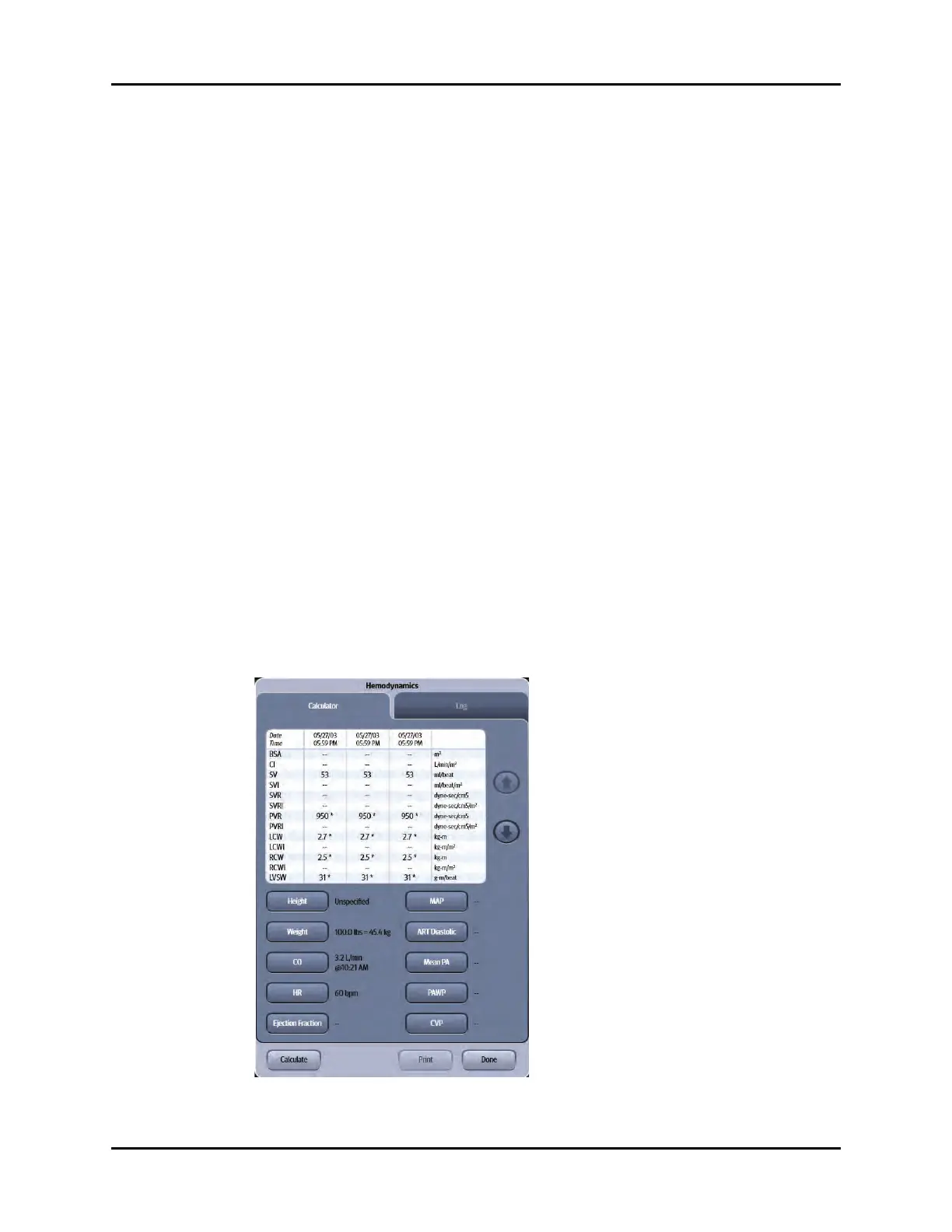

FIGURE 22-1 Example Hemodynamics Calculator
