Minebea Intec PR5900 - Page 149

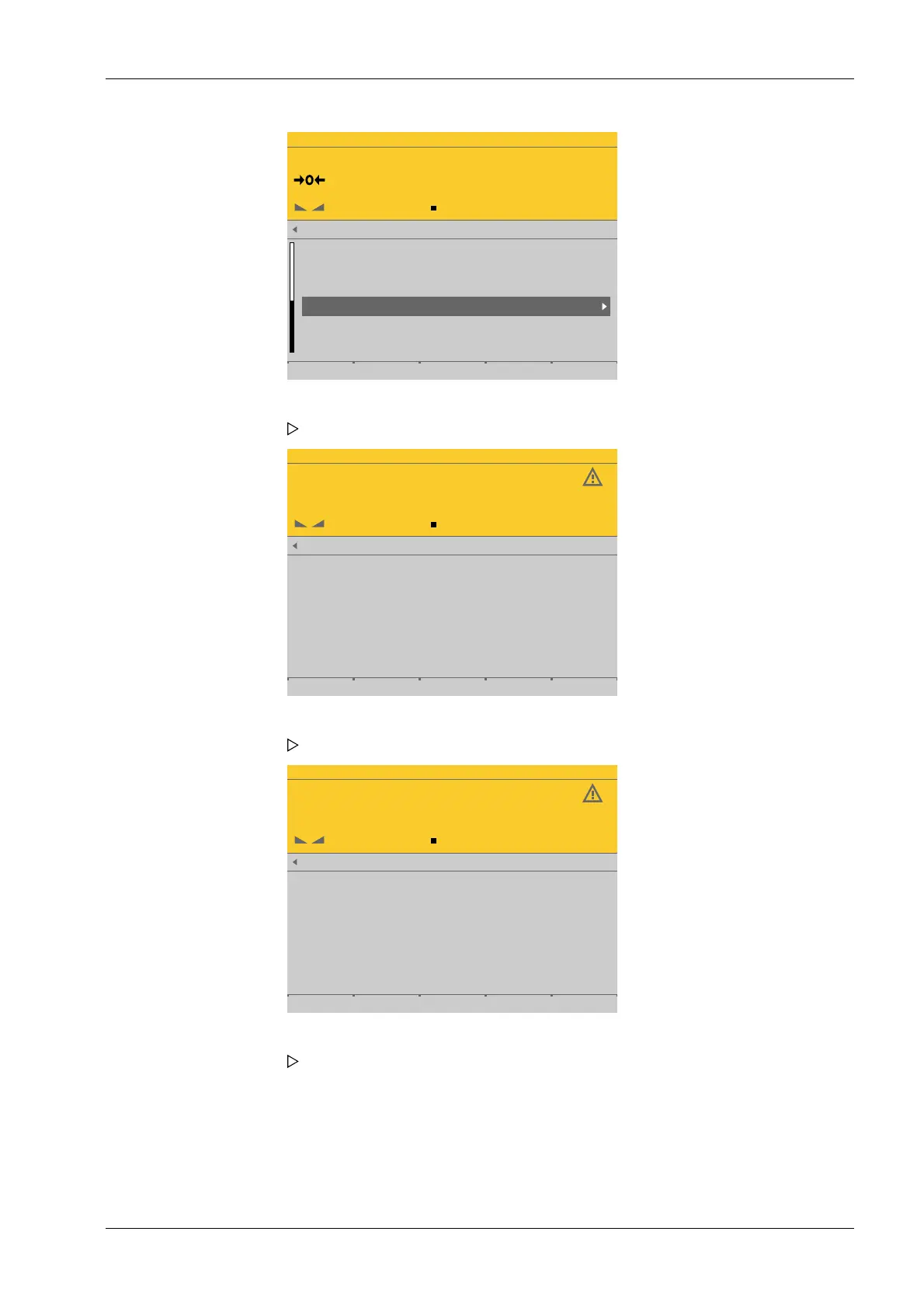

WP-C R1 Max 30kg d= 0.0005kg
00000
kg
xBPI scale setup @admin
Adjust with default weight
Adjust with internal weight
Linearisation
Default linearisation
User linearisation
WP-C R1 Max 30kg d= 0.0005kg
00005
–
xBPI scale setup @admin
Calibration check
input
input
Load to small
-5.0000 kg
0.00020 kg
Accept Reset error Cancel
WP-C R1 Max 30kg d= 0.0005kg
02000
+
xBPI scale setup @admin
Calibration check
input
input
Difference display
0.0020 kg
5.00175 kg
Accept Reset error Cancel
1. Select and conrm [Default linearization].
The rst linearization point to be calibrated is displayed.
2. Place the displayed weight (here 5 kg) on the scale.
The deviation is shown. Weight + deviation with 10-fold resolution in the last line.
3. Press the [Accept] soft key.
The second linearization point to be calibrated is displayed.
