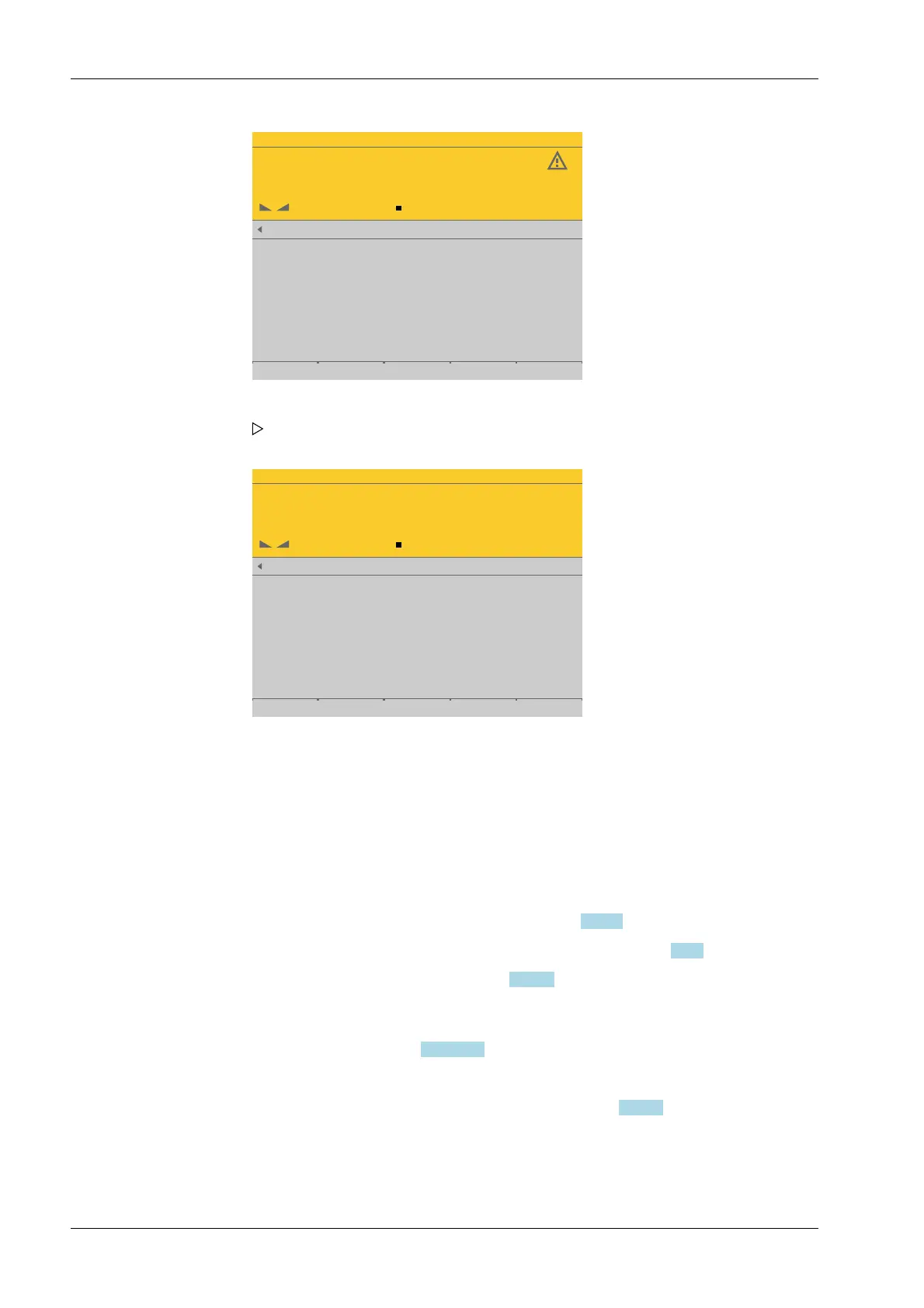

WP-C R1 Max 30kg d= 0.0005kg
02000
–
xBPI scale setup @admin
Calibration check
input
input
Difference display
-0.0020 kg
14.80340 kg
Accept Reset error Cancel
WP-C R1 Max 30kg d= 0.0005kg
01000
–
kg
xBPI scale setup @admin
Calibration check
NET
input
Done
-0.0010 kg
-0.00105 kg
Accept Reset error Cancel
4.7.5.3.7 Default linearization
In this menu item, the xBPI scale weighing electronics are calibrated with linearization
points.
The measurement range for a straight can be optimized by setting the linearization
points.
Requirements:
- The xBPI protocol has been selected, see Chapter 4.7.5.1.
- The [xBPI scale] weighing point has been selected, see Chapter 4.7.5.
- The scale has been set up, see Chapter 4.7.5.5.
- [Manual] has been set in the menu [Operating] - [System setup] - [Weighing points] -
[Weighing point x] - [Setup] - [Conguration] - [Weighing parameters] - [Conrm
calibration] , see Chapter 4.7.5.5.1.1.
- The communication between the device and xBPI scale is active.
- the xBPI scale parameters have been read, see Chapter 4.7.5.3.
Accessible via MENU - [Operating] - [System setup] - [Weighing points] - [Weighing
point x] - [xBPI scale] - [] - [Default linearization] .
2. Press the [Accept] soft key.
The data is transferred and the calibration check indicates [complete]. The weight
is shown. With 10-fold resolution in the last line.
3. Press the EXIT key to return to the xBPI setup menu.
