- The physical inputs and outputs of the system are deactivated and passive (in
secured condition).

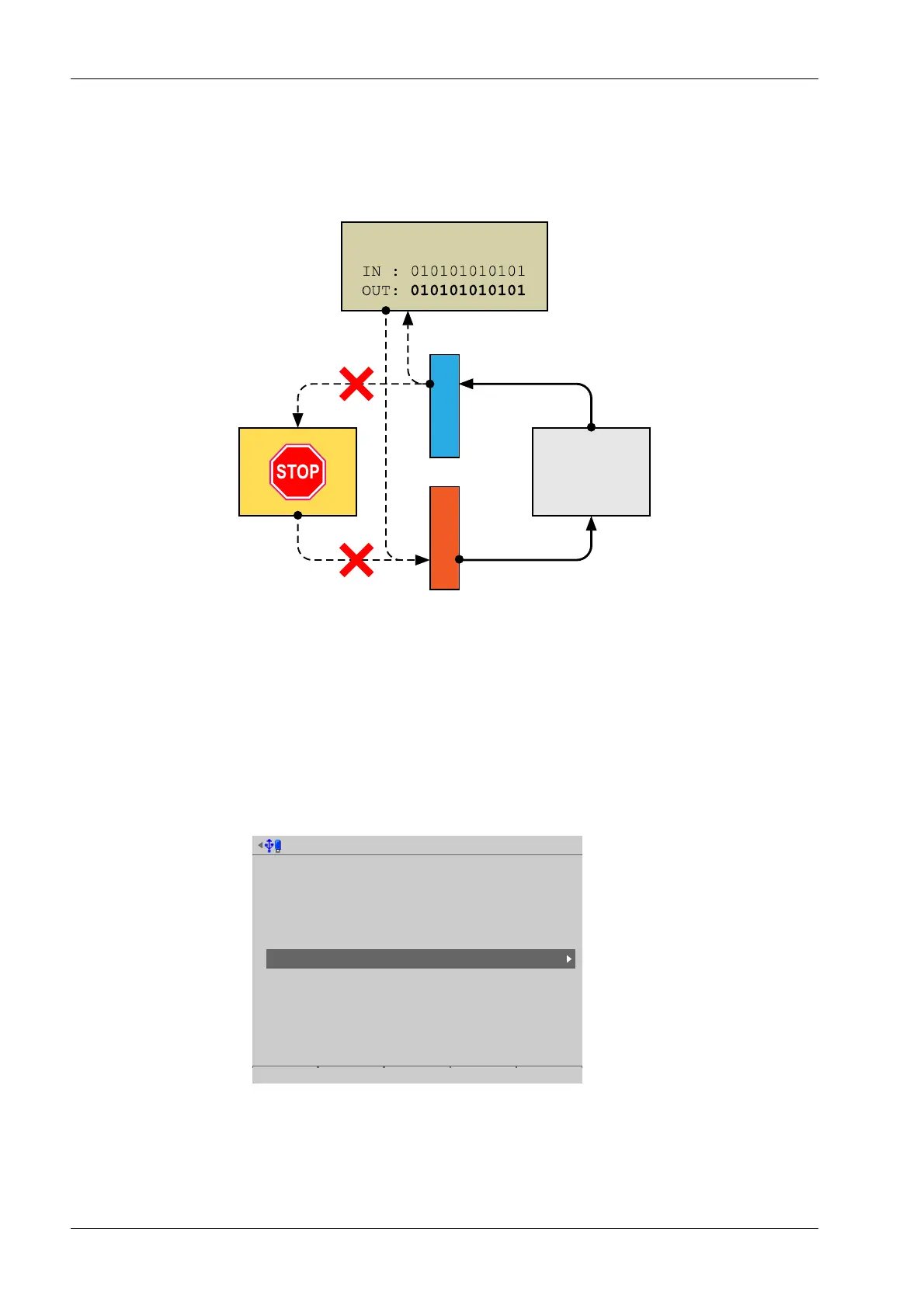

Test mode 3
Display
System
Inputs
Outputs
Application
Deactivated PLC:
- The physical inputs are displayed (display).
- Output values can be entered.
- The given output values are set on the physical outputs.
6.11.3.2 Example: PR 5900/W1
Example test (under I/O cards test) of an analog input card.
Accessible via MENU - [Operating] - [System maintenance]- [Test hardware]- [I/O cards
test] in this case, card: PR 5900/W1.
Test I/O-Cards @admin
Built-in RS-232/RS-485
Option-1
Option-2
Built-in Digital I/O
Option-FB
WP A
WP B
PR5900/04 RS-485/RS-485
PR5900/12 Digital I/O
PR5900/W1 weighing electronics
PR5900/W1 weighing electronics
-empty-
1. Select and conrm the desired card (here: PR 5900/W1).
Process Controller Maxxis 5 PR 5900 6 System maintenance
