ter Two: Installation
26
D. The capacitance and inductance of cables which are handling fast signals, (such as
data lines or stepper motor drive cables); and
E. That some cables may need internal shielding from specific wires to others; please
see the instruction manual for details regarding this matter.

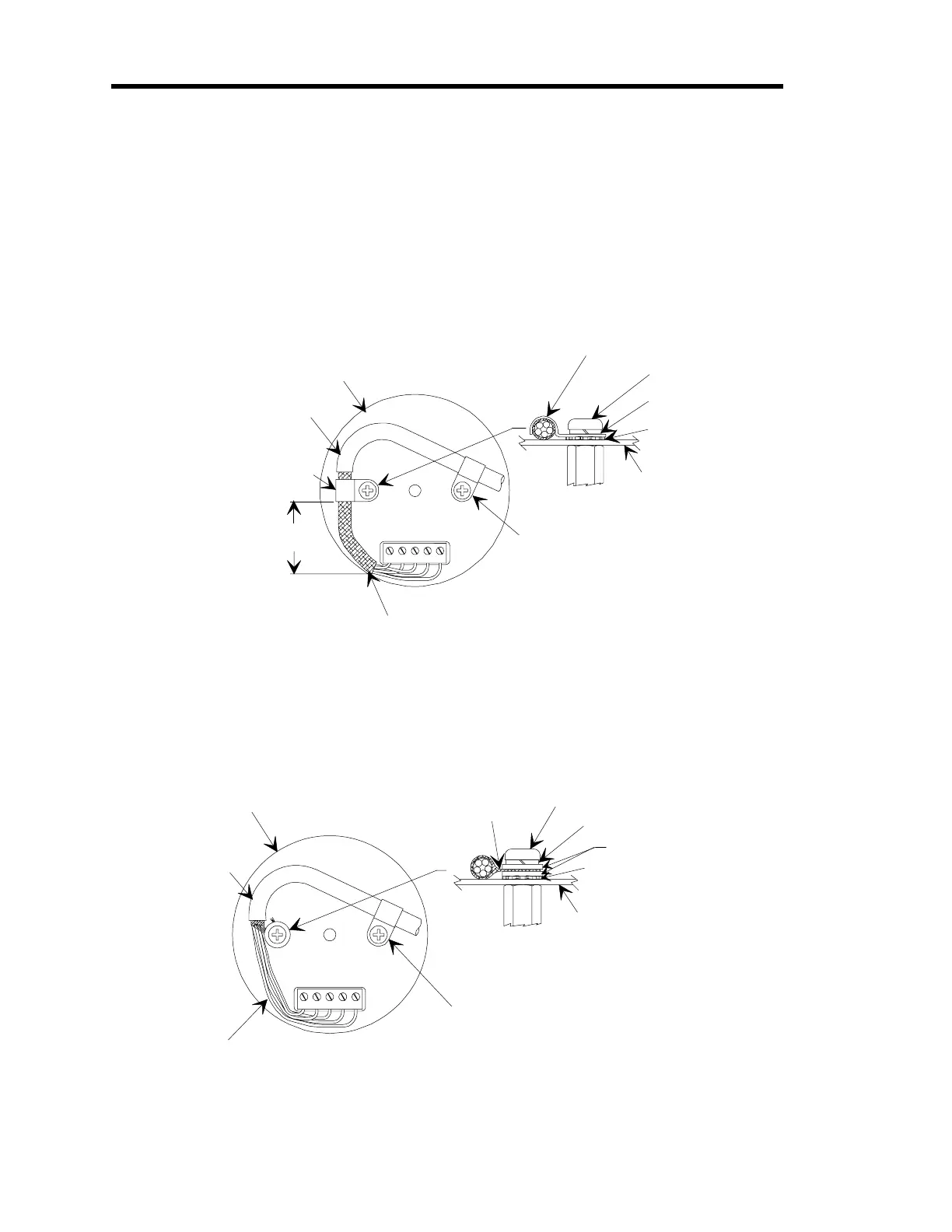

Example 1: Preferred Method To Connect Cable
(shown on a transducer)
Transducer
Overall Insulation
(if present)
Bare Metal Cable Clamp
Makin
g
Firm Contact To Braid
Braid Here Is Desirable
(but not usually necessary)
Keep Wires and Braid
Flat A
g
ainst Case
Metal Cable Clamp
Screw
Split Lock Washer
External Tooth Lock Washer
Transducer Housin
g
Optional Plastic or Metal Cable
Clamp (For Physical Strain Relief)
Figure 2: Preferred Method
Example 2: Alternate Method To Connect Cable
(shown on a transducer)
Transducer
Overall Insulation
(
if present
)
Braid Strands Twisted
Under Washer
Keep Wires Flat
A
g
ainst Case
Optional Plastic or Metal Cable
Clamp
(
For Ph
y
sical Strain Relief
)
Screw
Split Lock Washer
Flat Washers
External Tooth Lock Washer
Transducer Housin
g
Figure 3: Alternate Method To Use When Cable Clamp is Not Available
