Chapter Two: Installation Dimensions
31
Dimensions
Note
All dimensions are listed in inches, with millimeters referenced in
parentheses.
3.00
(76.2)
9.45 (240.0)
8.25 (209.6)
8.80 (223.5)
0.38 (9.7) 4 places
0.25 (6.4) 4 places
POWER
ON
OFF
0
1

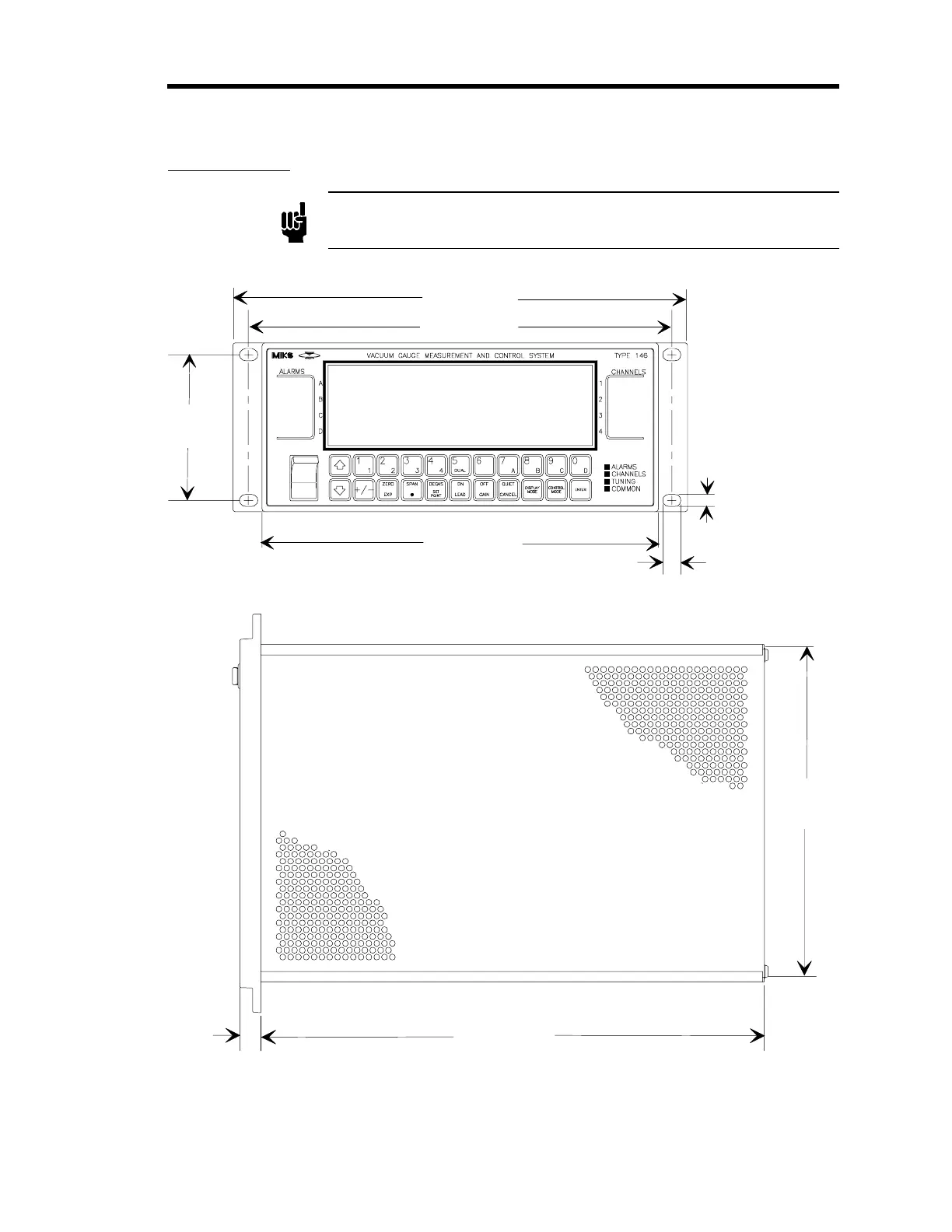

Figure 6: Front Panel Dimensions
0.50
(12.7)
12.09 (307.1)
8.00
(203.2)
Figure 7: Top Dimensions
