Chapter 4: Using the Commands
December 31, 2007 AT Commands Reference Manual 4-25

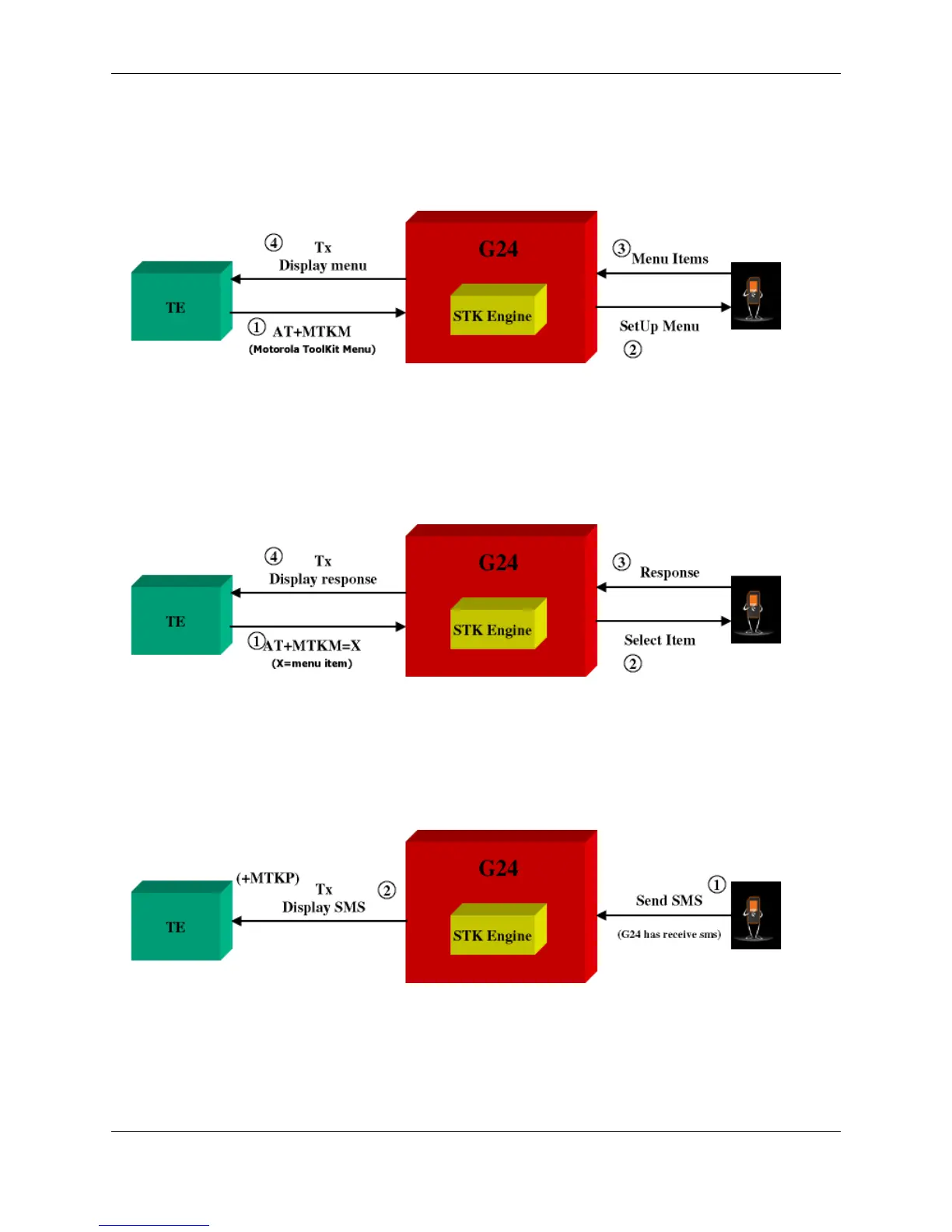

Set Up Menu
The terminal requests the STK menu. As a result, the SIM sends the menu items to the terminal.
The user then selects an item from the menu.
Figure 4-16: Set Up Menu
Select Item
The user selects an item. As a result, the SIM sends a response to the terminal.
Figure 4-17: Select Item
Send SMS
The SIM requests to send SMS, and the SMS data is displayed on the terminal.
Figure 4-18: Send SMS
