Chapter 4: Using the Commands
December 31, 2007 AT Commands Reference Manual 4-27
+MTKM: 2,2,"IN THE COUNTRY",0
AT+MTKM=1,1 //Select Item 1.
OK
+MTKP: 3,1,0,3,8,0,Enter Country name://User is requested to enter country name
AT+MTKP=3,1,"England" //User enters the country
OK
+ MTKP: 1,0,"Weather in England is 5ºC"//Text is sent from the SIM
Send DTMF
The SIM card requests to send a DTMF string. The G24 sends the DTMF during an active voice
call, and notifies the terminal using an +MTKP of this sending action. The G24 responds with the
status of the sending result to the SIM.

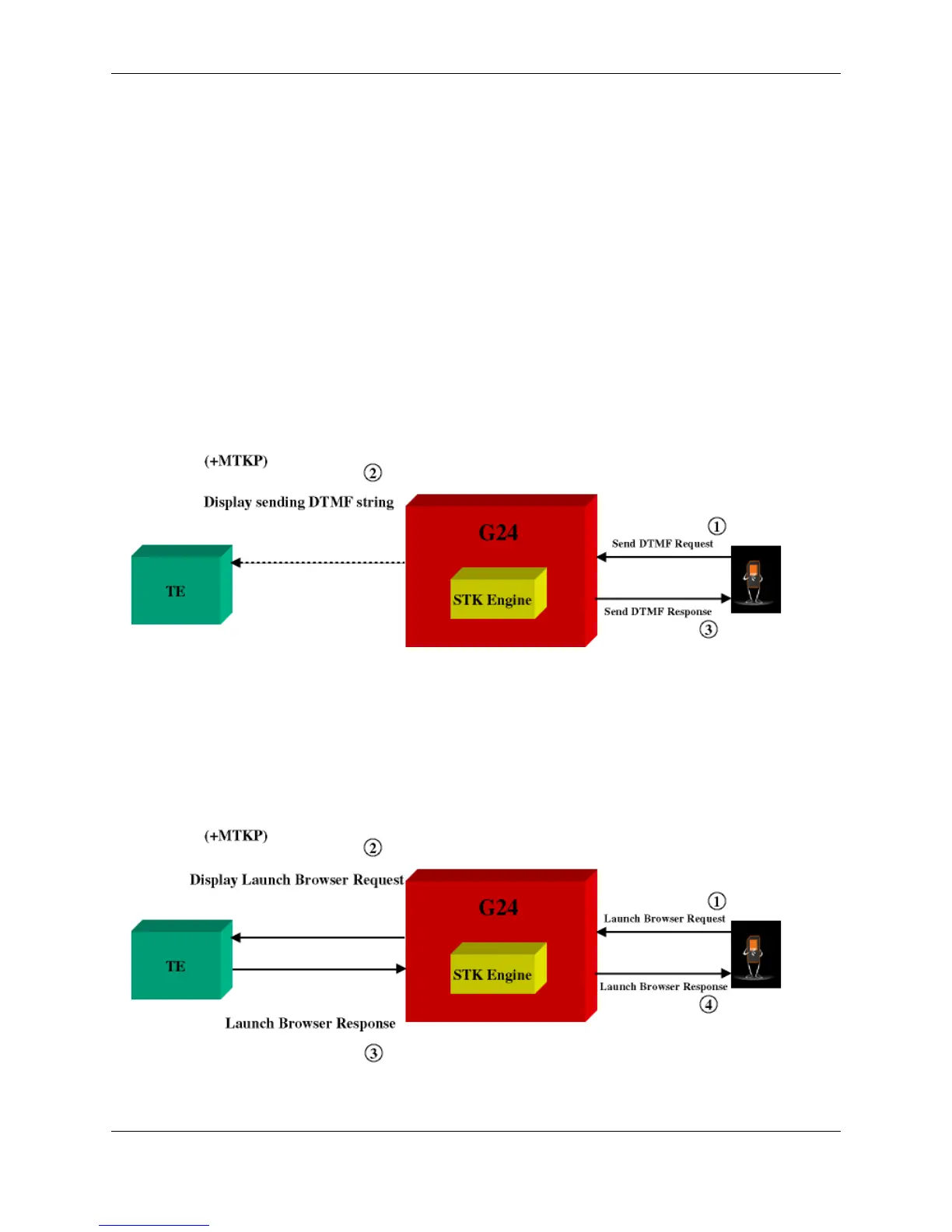

Figure 4-21: Send DTMF
Launch Browser
SIM card requests to open a browser with a specific URL and info. The G24 notifies the terminal
and waits for the request results. The terminal must respond to the G24 with a result. The terminal
result is passed to the SIM by the G24.
Figure 4-22: Launch Browser
