8 Operation
Maschinenfabrik Reinhausen GmbH 2020152 3587317/21 ENTAPCON
®

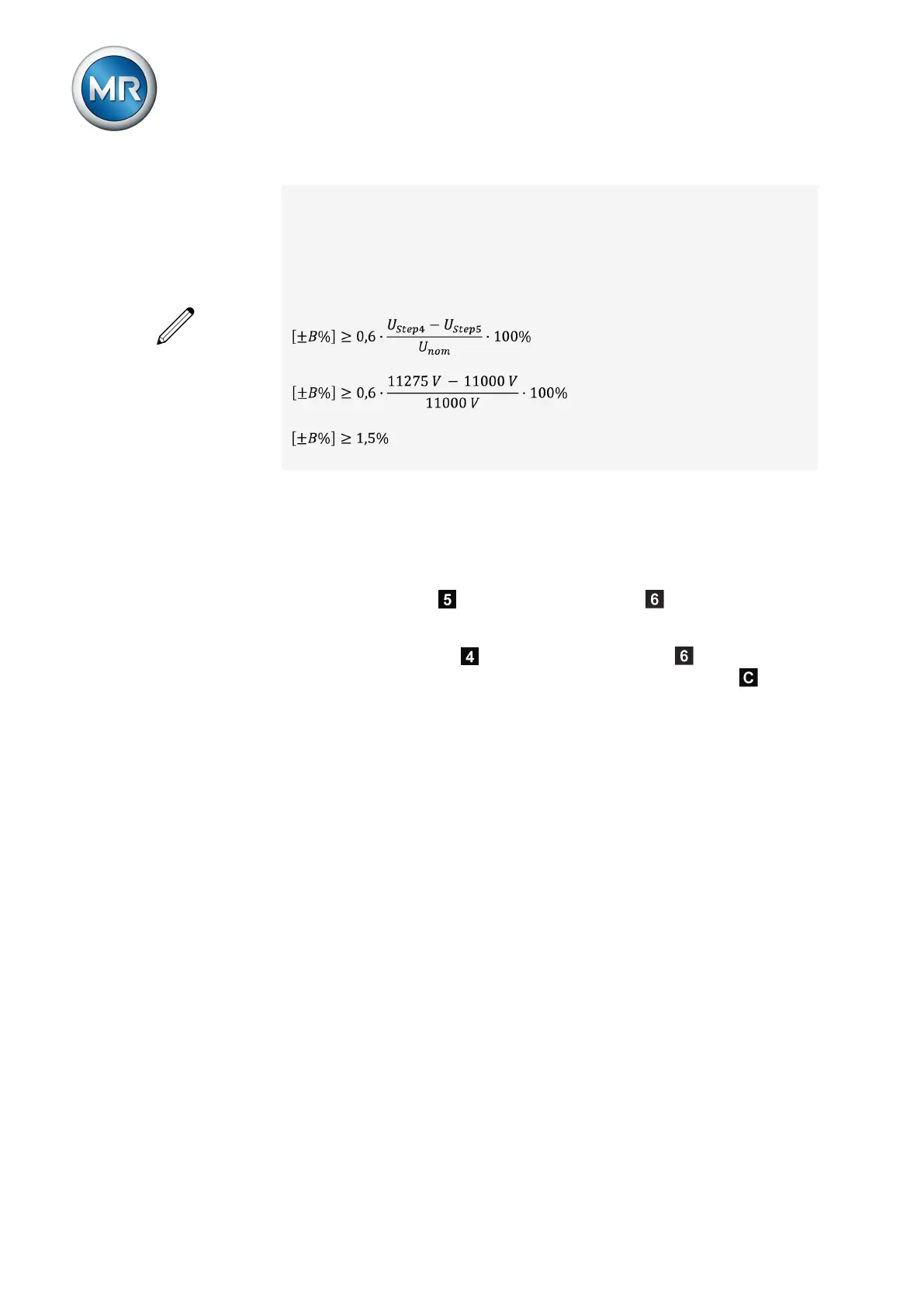

The following transformer values are used to determine the minimum band-
width:
Nominal voltage U
N
= 11000V
Step voltage in tap position 4 U
Step4
= 11275V
Step voltage in tap position 5 U
Step5
= 11000V
Delay time T1
Delay time T1 delays the issuing of a tap-change command for a defined pe-
riod. This prevents unnecessary tap-change operations if the tolerance
bandwidth is exited briefly.
Response to delay time T1
If the control variable is within the set bandwidth , no control com-
mands are issued to the motor drive unit for the tap change. Control com-
mands will also not be issued to the motor-drive unit if the control variable
returns to the bandwidth within the set delay time T1 . However, if the
control variable deviates from the set bandwidth for a long period , a tap-
