4 Product description
Maschinenfabrik Reinhausen GmbH 202032 3587317/21 ENTAPCON
®

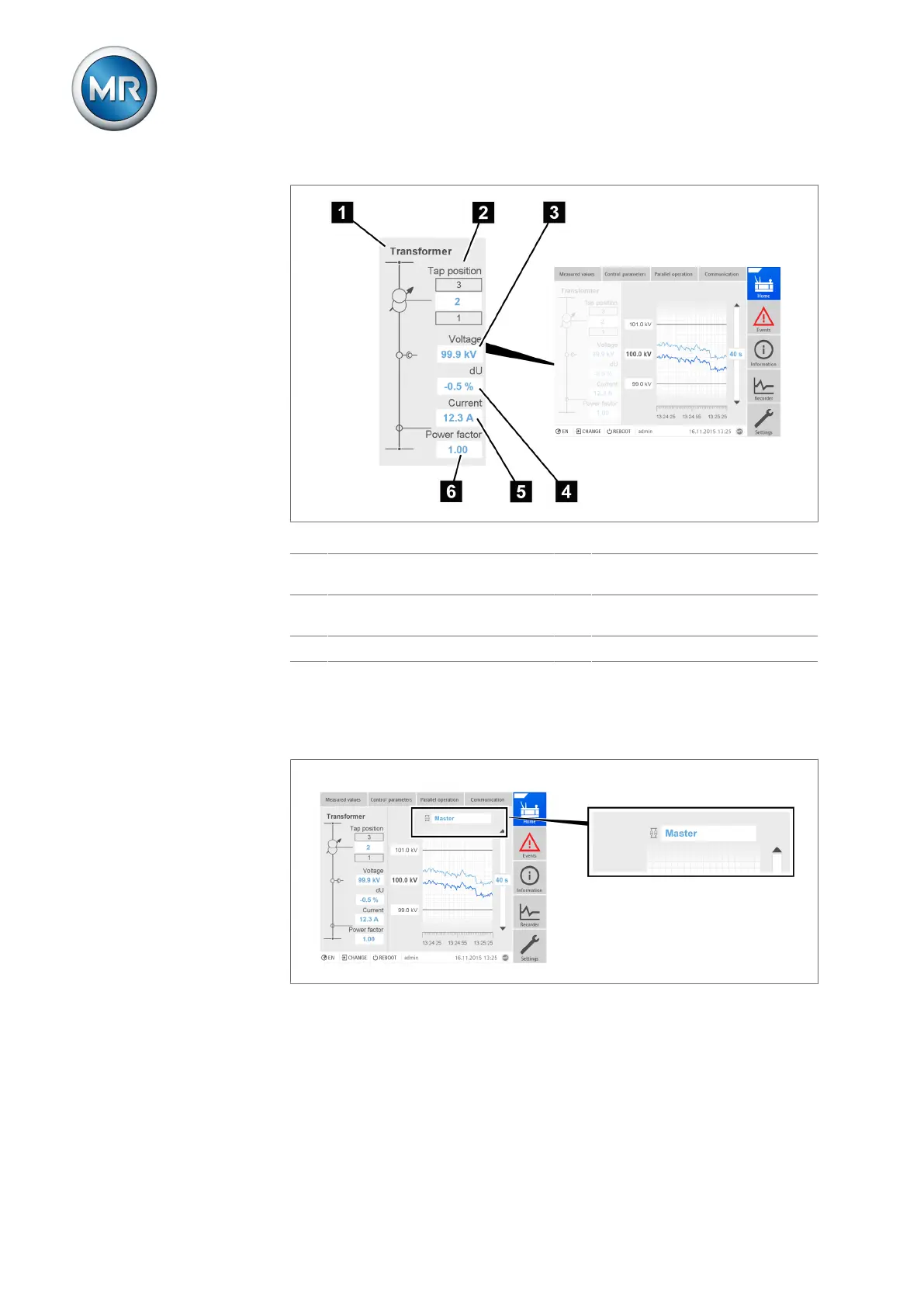

Figure10: Transformer overview with display showing the current measured values
1 Transformer designation 2 Tap position of the on-load tap-
changer (next, current, previous)
3 Voltage 4 Control deviation in % (with correc-
tion)
5 Current 6 Power factor
Parallel operation mode
If you have activated the parallel operation function, the device shows the
current mode of parallel operation on the display.
Figure11: Parallel operation mode
