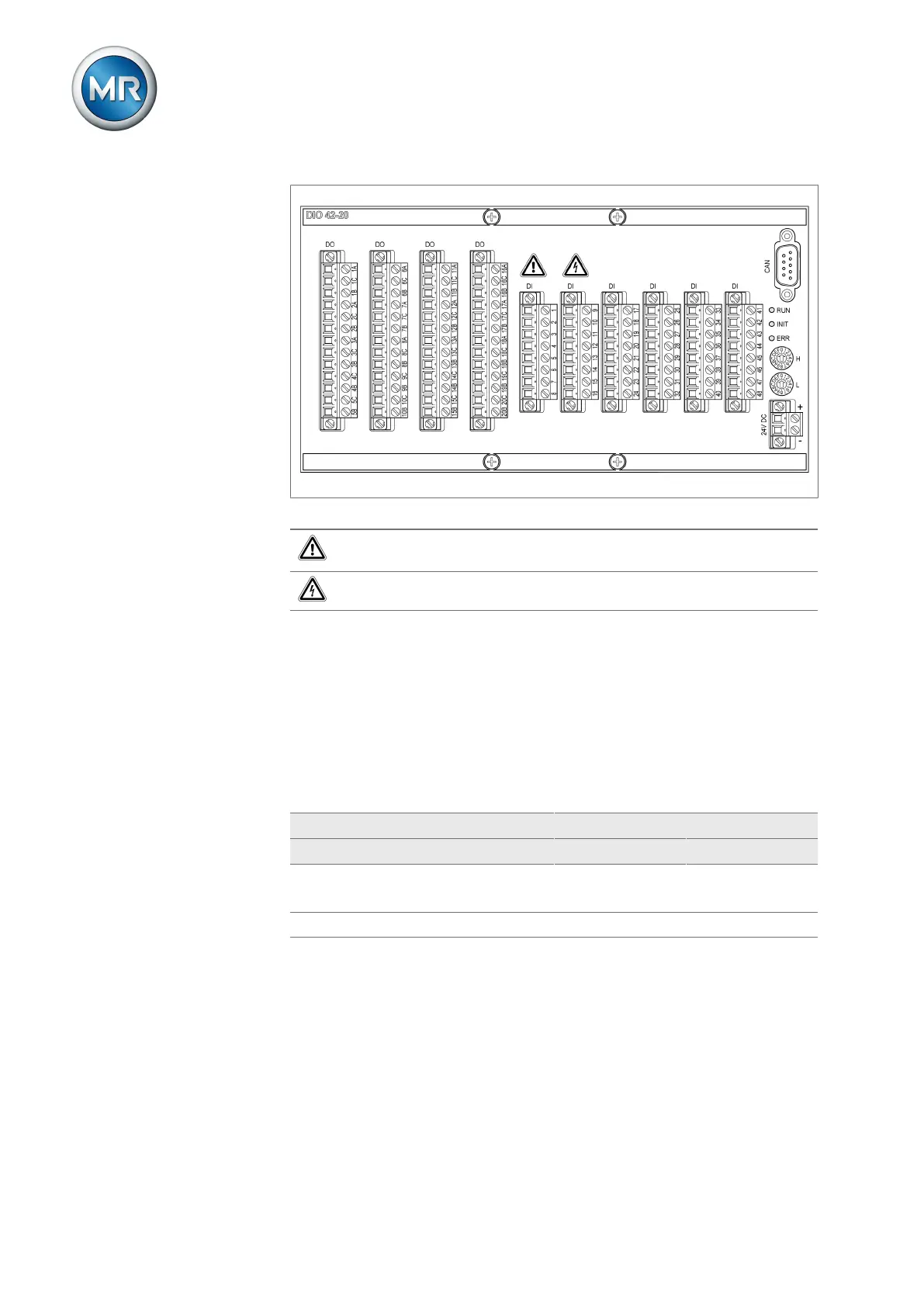

Figure18: DIO 42-20 assembly
Warning of a danger point. Read the information given in the product oper-
ating instructions.
Warning of dangerous electrical voltage.
Table10: Safety-relevant symbols on the assembly
4.6.5.5 Analog inputs and outputs
The AIO 2 and AIO 4 assemblies provide analog inputs and outputs:
▪ AIO 2: 2 channels
▪ AIO 4: 4 channels
In accordance with the device configuration, the AIO assembly supports one
of the following signal types:
Input Output
Voltage Current Voltage Current
0...10 V 0...20 mA
4...20 mA
0...10 V 0...20 mA
4...20 mA
Resistance measurement (such as PT100, resistor contact series)
Table11: Signal types supported by the AIO assembly
