4 Product description
Maschinenfabrik Reinhausen GmbH 2020 393587317/21 EN TAPCON
®

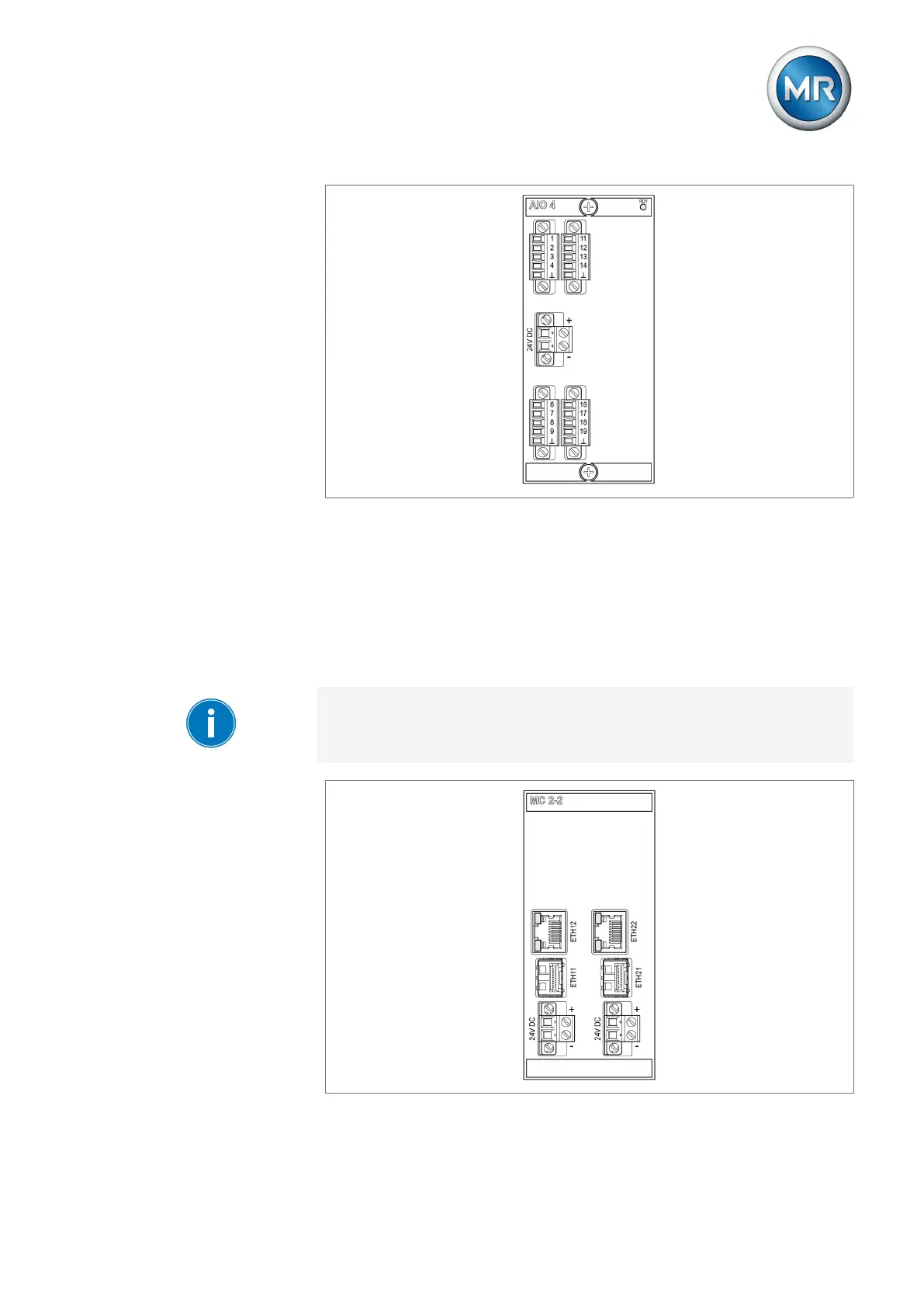

Figure19: AIO 4 assembly
4.6.5.6 Media converter
The MC 2-2 assembly is a media converter, which converts 2 electrical con-
nections (RJ45) to one fiber-optic cable connection each. Each is converted
independently of the other. The following interfaces are available:
▪ 2x RJ45 (ETH12, ETH22)
▪ 2x Duplex-LC (SFP module) (ETH11, ETH21)
The media converter is designed to be transparent for the network and does
not have its own IP address.
Figure20: MC 2-2 assembly
