6 Mounting
Maschinenfabrik Reinhausen GmbH 202052 3587317/21 ENTAPCON
®
2. Place device in 19" frame and screw down.

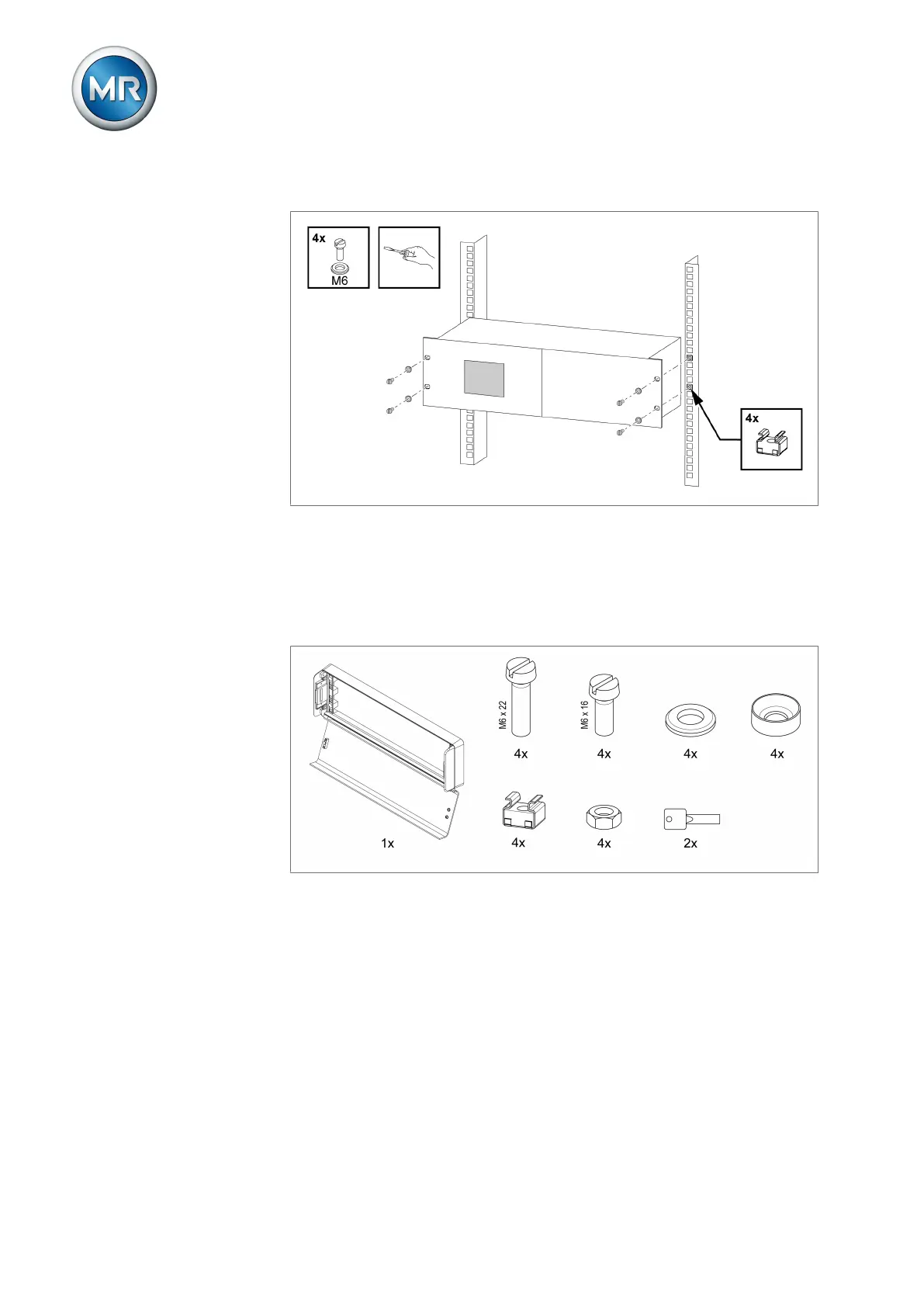

Figure31: Example of device mounting in a 19" frame
Mounting in a control panel with a 19" flush control panel frame
(optional)
To mount the device in a control panel, proceed as follows:
ü Scope of delivery is complete.
Figure32: Scope of delivery
