6 Mounting
Maschinenfabrik Reinhausen GmbH 2020 533587317/21 EN TAPCON
®

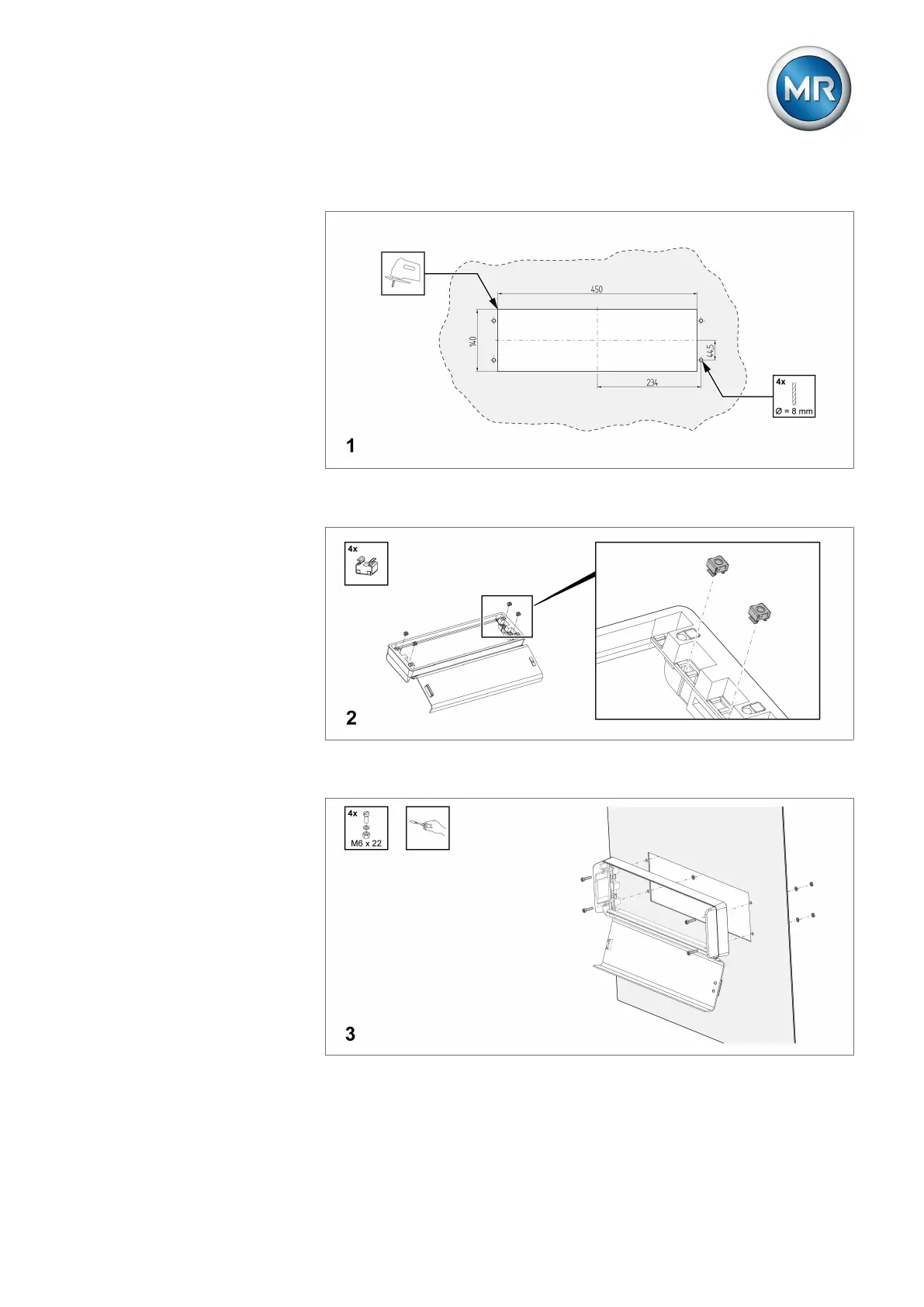

1. Produce the cut-out in the control panel.
Figure33: Producing the cut-out in the control panel
2. Mounting cage nuts
Figure34: Mounting cage nuts
3. Secure frame to control panel.
Figure35: Securing frame to control panel
