NETGEAR 7300 Series User Manual

User Manual for the NETGEAR 7300 Series Layer 3 Managed Switch Software
Cabling Guidelines B-7
202-10009-01_060204

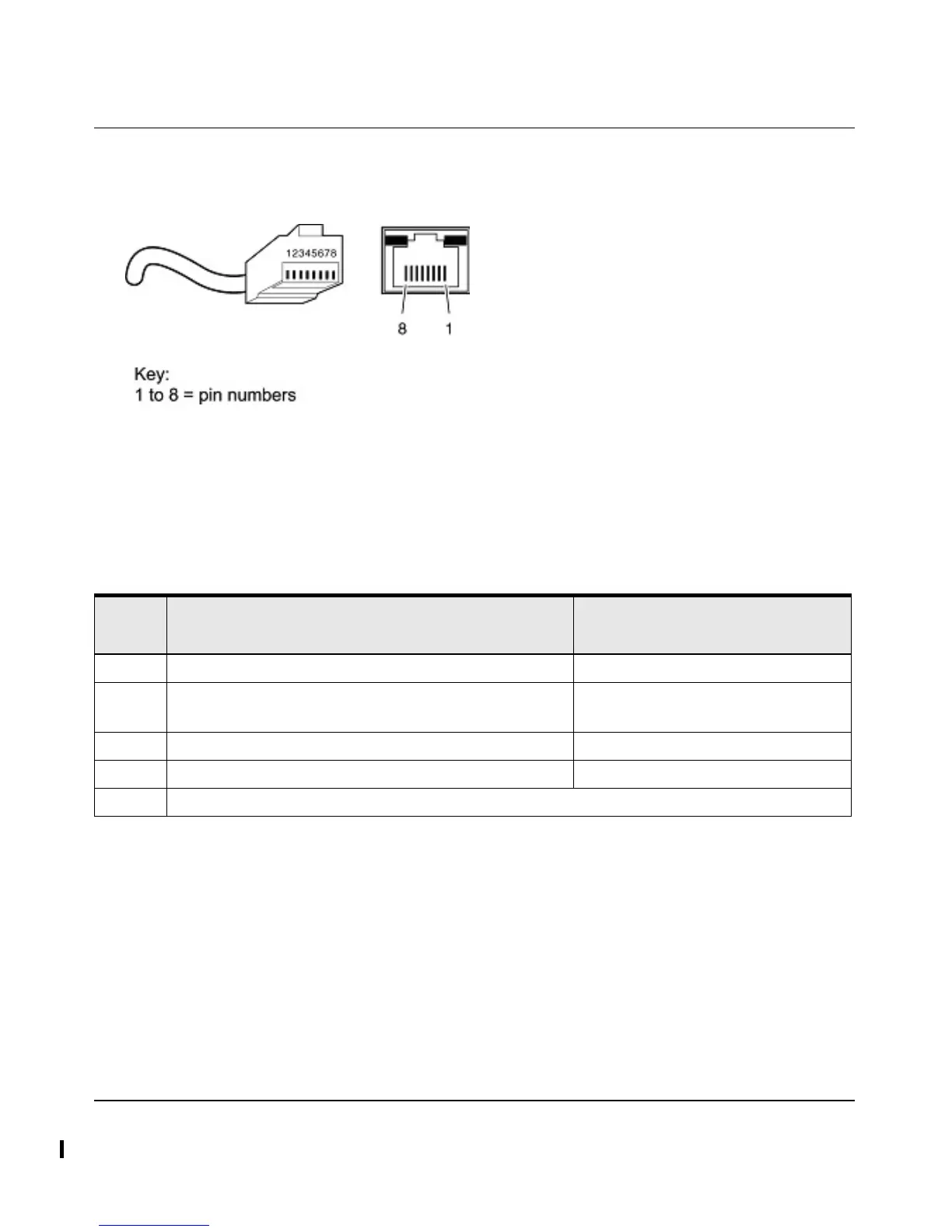

Figure 13-4 shows the RJ-45 plug and RJ-45 connector.
Figure 13-4: RJ-45 Plug and RJ-45 Connector with Built-in LEDs
Table 13-1 lists the pin assignments for the 10/100 Mbps RJ-45 plug and the RJ-45 connector.
Table 13-1. 10/100 Mbps RJ-45 Plug and RJ-45 Connector Pin Assignments
Table E-2 lists the pin assignments for the 100/1000 Mbps RJ-45 plug and the RJ-45 connector.
PIN NORMAL ASSIGNMENT ON
PORTS 1 TO 8
UPLINK ASSIGNMENT ON
PORT 8
1 Input Receive Data + Output Transmit Data +
2 Input Receive Data – Output Transmit Data –
3 Output Transmit Data + Input Receive Data +
6 Output Transmit Data – Input Receive Data –
4, 5, 7, 8 Internal termination, not used for data transmission

NETGEAR 7300 Series Specifications

General

Model	NETGEAR 7300 Series
Form Factor	Rack-mountable
VLAN Support	Yes
Jumbo Frame Support	9KB
Management	Web-based, CLI
Layer	Layer 2/3
