User Manual for the NETGEAR 7300 Series Layer 3 Managed Switch Software
Web-Based Management Interface 4-5
202-10009-01_060204
Interactive Switch Image

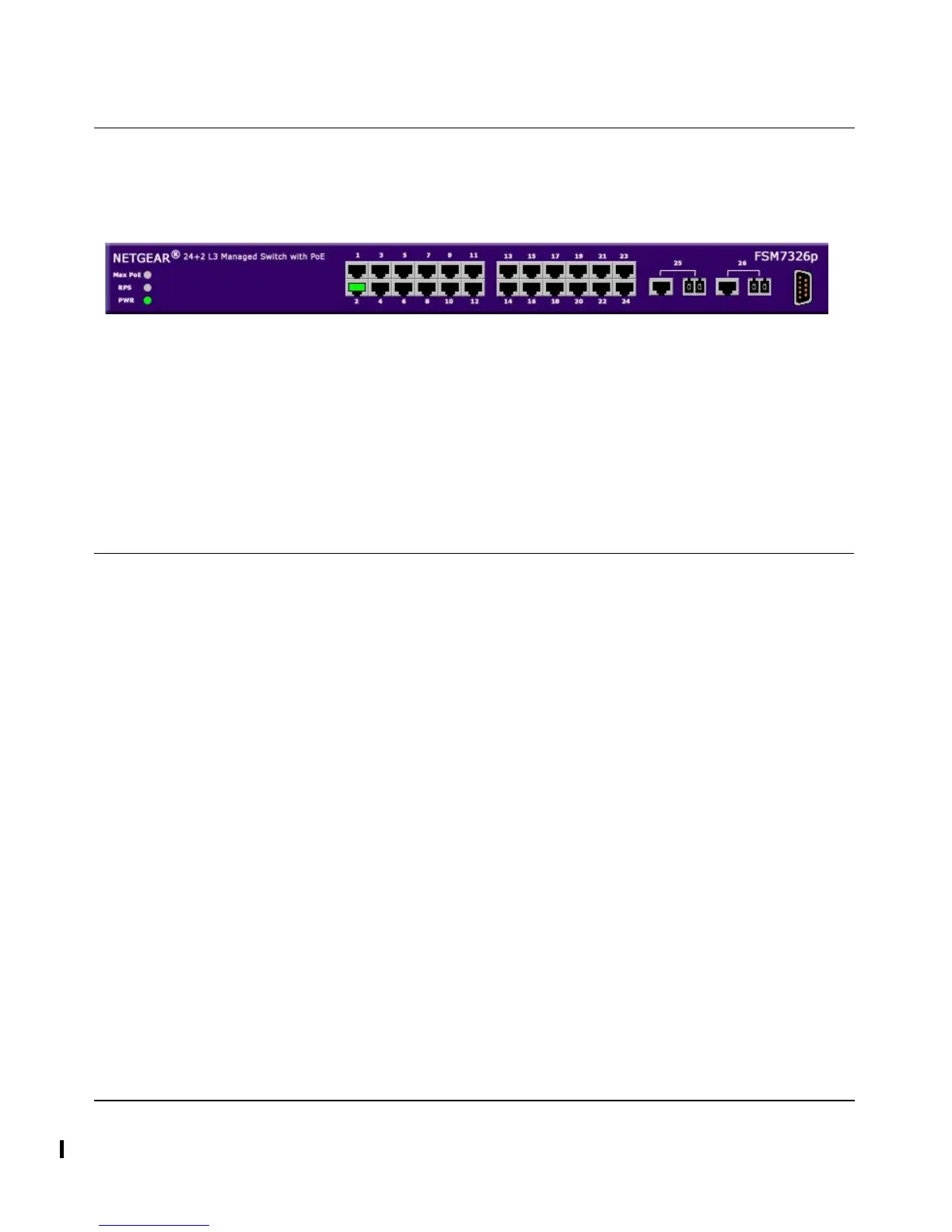

Figure 4-6: Interactive switch image
This dynamic image shows various real time conditions about the switch, including the status, fan
operation, power, and the connectivity and traffic indication for each port. In addition, using the
popup menus described below, you can directly access a wealth of information by right-clicking
on a port and selecting a menu item from the popup-menu that displays.
Menus
The Web-based interface enables navigation through several menus. The main navigation menu is
on the left of every page and contains the screens that let you access all the commands and
statistics the switch provides.
