43967002TH Rev.1
13 /
Oki Data CONFIDENTIAL
1. Configuration
Fig. 1-2
Inside of the MC860 consists of the following sections.
• Electro-photographic process section
• Paper path section
• Control section (CU section/PU section/SIP section)
• Power supply section (High voltage section/low voltage
section)
• Scanner section

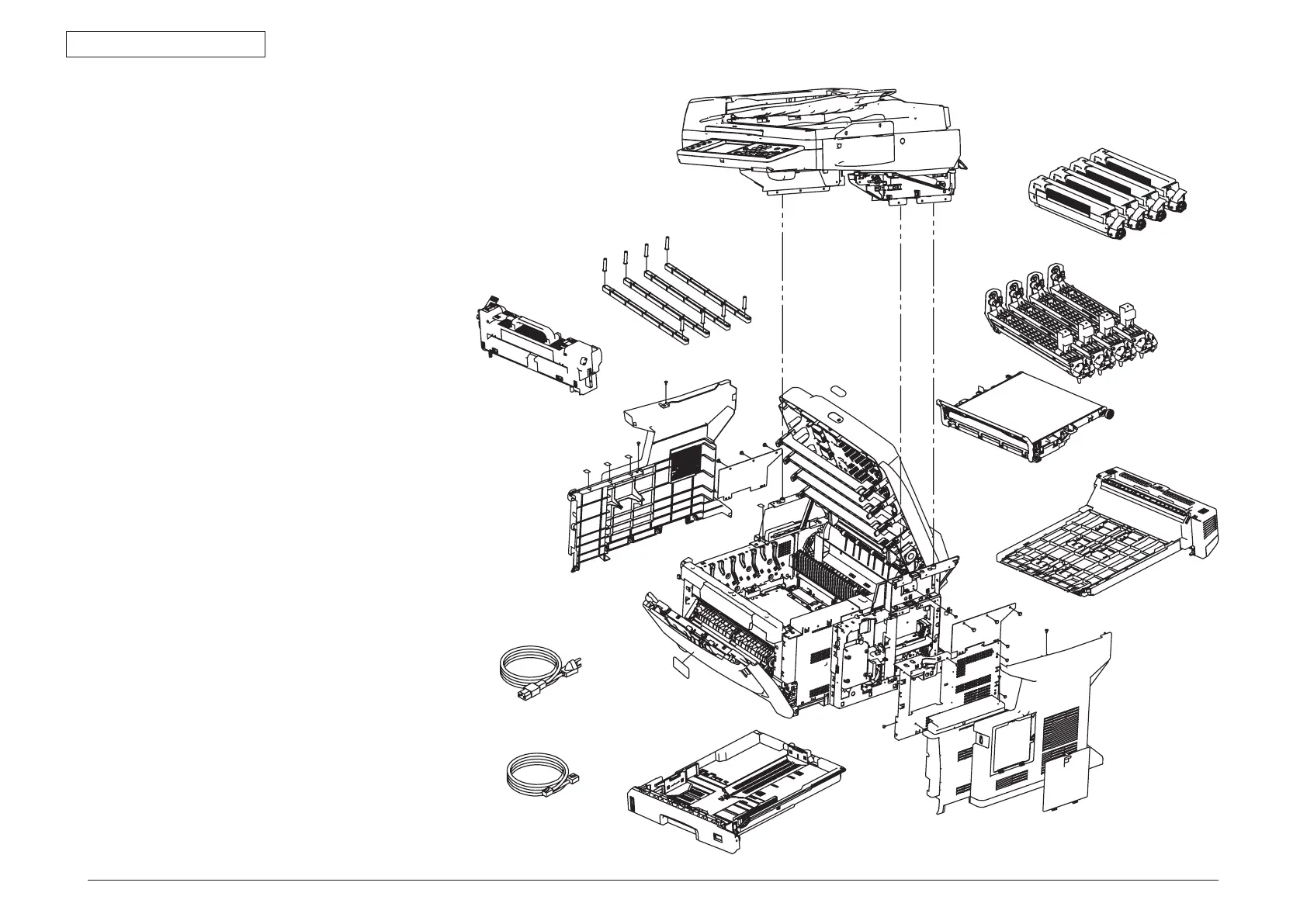

Overall configuration of the MC860 is shown in Fig. 1-2.
Printer section configuration of the MC860 is shown in Fig. 1-3
and Fig. 1-4.
Overall configuration of the scanner section of the MC860 is
shown in Fig. 1-5.
