Oki Data CONFIDENTIAL

43967002TH Rev. 1

188 /

4. Part Replacement

Claw

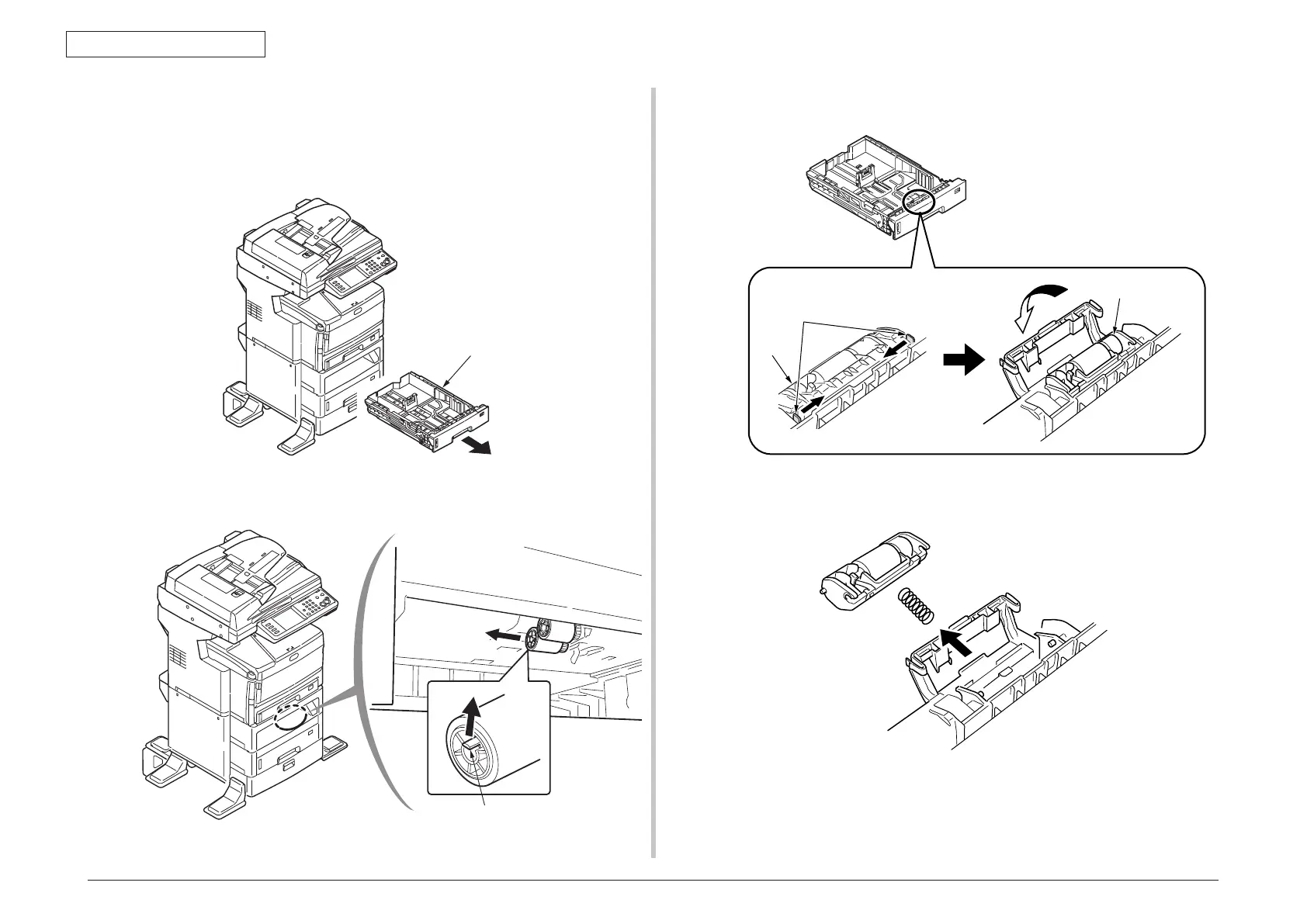

4.2.3.22 Feed paper roller (Tray 2 and 3 (option))

Note! Be sure to replace all of the three paper feed rollers.

(1) Turn OFF the power of the MFP, and remove the paper cassette.

(3) Remove the paper cassette by bending the claws of both sides, rotate it to the front

and remove the cover.

(2) W

hile opening claws of the two feed paper rollers outside, remove it from the axis.

(4) Remove the retard roller Assy from the axis by pulling it in the direction of the arrow.

Paper cassette for tray 2

Separator roller

Claw

Cover
