3. Installation
3.10.2 Turn ON the power
3.10.2.1 Required conditions for power supply
• The following conditions should be satisfied.
AC : 100V ± 10%
Power frequency : 50 Hz or 60Hz ± 2Hz
• If the power supply is unstable, use the voltage regulator and equivalent.
• Maximum power consumption of this printer is 1,300 W Confirm that the power supply
source has sufficient margin.
• Wh
en the UPS (Uninterruptible power supply) is used, operations are not guaranteed. Do
not use the UPS (Uninterruptible power supply).
3.10.2.2 Power switch
1. Connecting the power cord
Warning
Failure to observe the warning may
result in fire and electric shock.
• Before connecting and disconnecting the power cord and earth wire, turn OFF the POWER
switch.
• The
earth wire should be connected to the dedicated earth terminal. .
Never connect the earth wire to city water pipe, city gas pipe, earth terminal of telephone line
or lightening rod.
• To
disconnect and connect the power cord, be sure to hold the power plug.
• The power plug should be inserted to the deep end of power source connector without fail.
• Do not disconnect and connect the power plug with wet hand.
• Place the power cord to the location where people do not step on it. Do not place any object
on top of the power cord.
• Do
not bind nor tie the power cord while using it.
• Do not use the damaged power cord.
• Do not connect many loads on one electrical outlet.
• Do not share the same electrical outlet with other electric products. If air conditioner, copying
machine, paper shredder are connected in parallel, the MFP may malfunction due to electric
noise. If the MFP shares the same electrical outlet with other electric products, use the noise
filter or noise-cut transformer that is available on commercial markets.
• D
o
not use the AC extension cord. If any extension cord is used by all means, use the exten-
sion cord having rating of 15 A or more.
• If
extension cord is used, AC power voltage may drop so that the MFP will not operate nor-
mally.
• Do
not turn OFF the power nor disconnect the power plug while printing is in progress.
• When the MFP is not gong to be used for long time due to vacation or trip, disconnect the
power cord.
Note! If document has been set to the document table before turning ON the
O I
Earth terminal
Earth wire

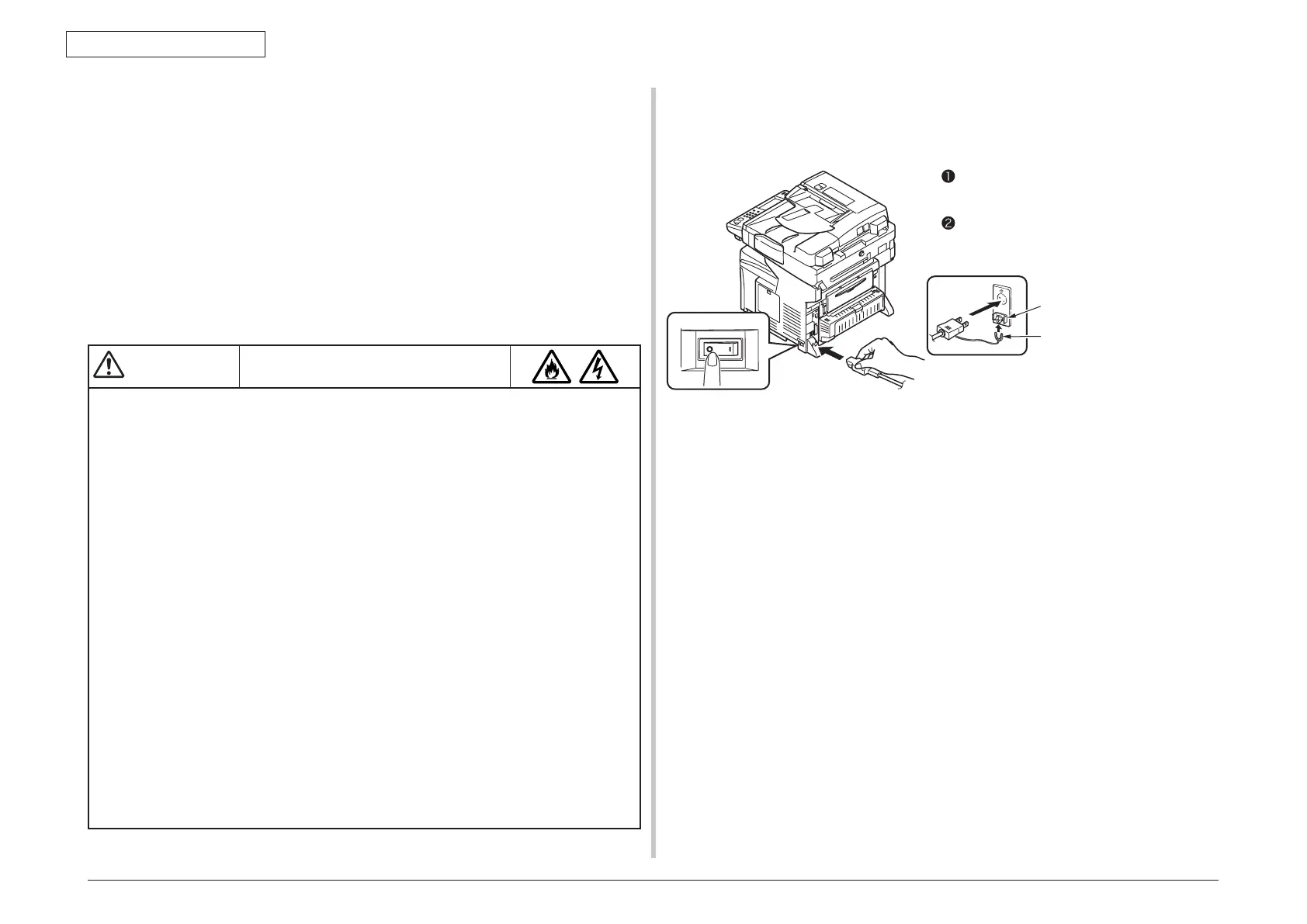

Confirm that the POWER switch is set to
OFF (O).
Connect the power cord to the MFP.

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
