5. Maintenance Menu
5.8.10.2.1 Tonal test procedure

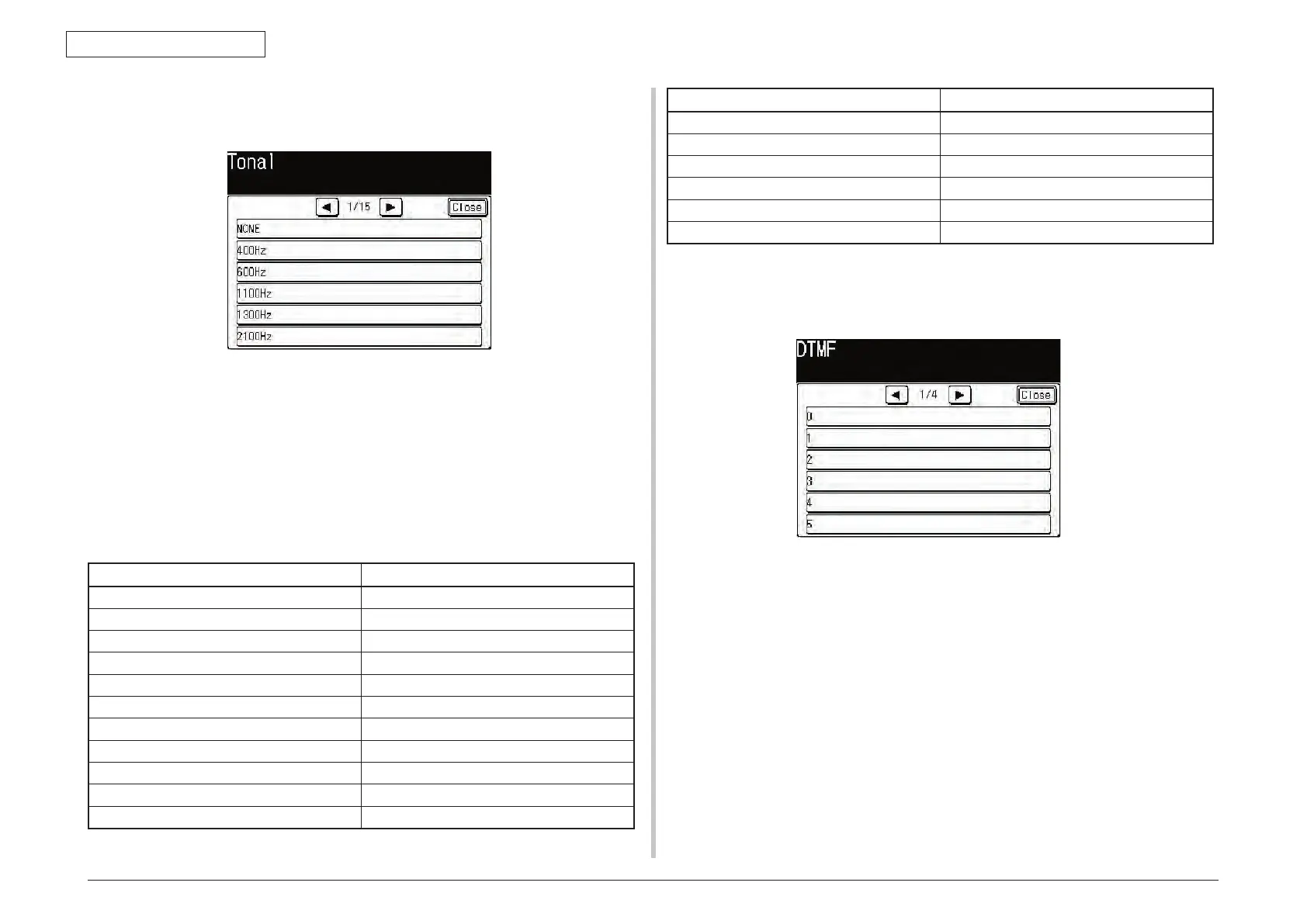

Press the [Tonal] button on the "Line Test” screen. The following screen is displayed.
Select Contents
ROW3 ROW3 (852 Hz) send
ROW4 ROW4 (941 Hz) send
COL1 COL1 (1209 Hz) send
COL2 COL2 (1336 Hz) send
COL3 COL3 (1447 Hz) send
COL4 COL4 (1633 Hz) send
5.8.10.3.1 DTMF test procedure
Press the [DTMF] button on the "Line Test” screen. The following screen is displayed.
Select a signal to test.
When the [Stop] key is pressed, signal send is interrupted.
When the [Close] button is pressed, the screen returns to the “Line test” screen.
When the [Reset] key is pressed, screen returns to the top screen of the service menu.
5.8.10.3 DTMF test
Signals of the frequencies that are used by the push-button telephone and shown in the
following table can be selected for the send test.
Select Contents
0 DTMF0 (941.Hz + 1336Hz) send
1 DTMF1 (697.Hz + 1209 Hz) send
2 DTMF2 (697 Hz + 1336 Hz) send
3 DTMF3 (697 Hz + 1477 Hz) send
4 DTMF4 (770 Hz + 1209 Hz) send
5 DTMF5 (770 Hz + 1336 Hz) send
6 DTMF6 (770 Hz + 1477 Hz) send
7 DTMF7 (852 Hz + 1209 Hz) send
8 DTMF8 (852 Hz + 1336 Hz) send
ROW1 ROW1(697 Hz) send
ROW2 ROW2(770 Hz) send
Select a frequency to send.
When the [Stop] key is pressed, signal send is interrupted.
When the [Close] button is pressed, the screen returns to the “Line test” screen.
When the [Reset] key is pressed, screen returns to the top screen of the service menu.

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
