1. Configuration
Note! Signal name in the parenthesis ( ) indicates the nibble mode.
Functions in the compatible mode is described only.
The nibble mode in compliance with IEEE std12_4-1994 that is
specified by IEEE is supported. If any computer or cable that do not
comply with this specification is sued, unexpected operations may
occur.
1.5.3 Parallel interface specifications
Fundamental specifications
Parallel interface in compliance with IEEEstd1284.-1994
Connector
Printer side: 36 pins receptacle (male) connector type: 57RE-40360-830B-D29
(Manufactured by Daiichi-Denshi Industry or equivalent )
Cable side: 36 pins plug (male) connector type: 57FE-30360 (Manufactured by
Daiichi-Denshi Industry or equivalent )
Cable
Use the cable in compliance with IEEE std. 1284-1994 of less than 1.8 m or equivalent
(Use the shielded cable.)
Transmission mode
Compatible/Nibble/ECP
Interface Level
Low level: +0.0 V to +0.8 V
High level: +2.4 V to +5.0 V

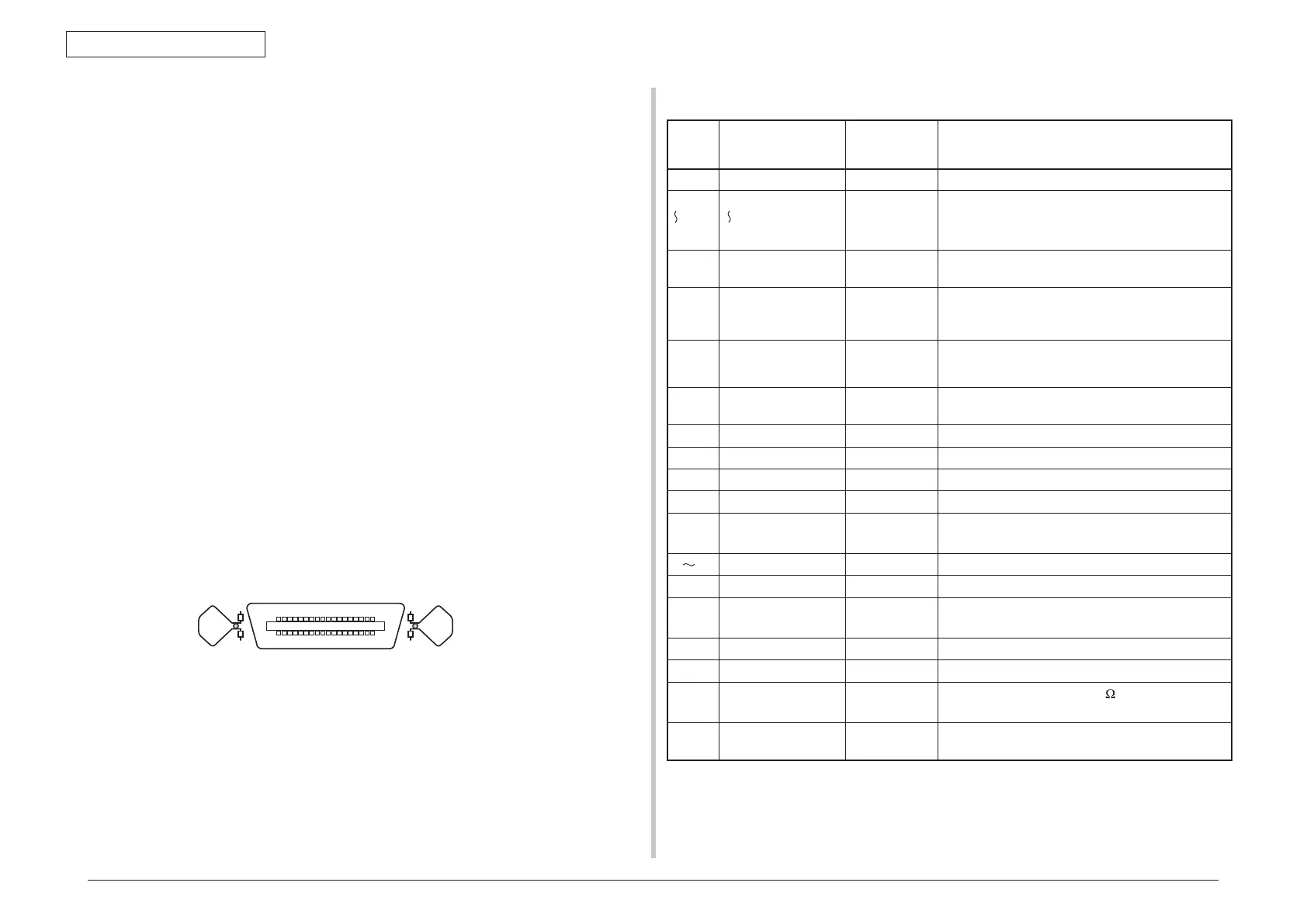

Connector pin arrangement
18
36 19
1
Interface signal
Pin No. Signal name Direction Function
1 nStrobe (HostClk) TO PRINTER Pulse to read data. Data is read at trailing edge.
2
9
DATA 1
DATA 8
Bi-direction 8-bit parallel data High level is “1” and low level
is “0”.
10 nAck(PtrClk) FROM
PRINTER
Signal indicating completion of data reception
11 Busy(PtrBusy) FROM
PRINTER
Signal indicating if a printer is ready to receive
data. Data reception is impossible while it is
high-level.
12 PError(AckDataReq) FROM
PRINTER
High-level indicates paper error.
13 Select(Xflag) FROM
PRINTER
When the parallel interface is available, it is
always at high-level.
14 nAutoFd(HostBusy) TO PRINTER Used by the bidirectional communication
15 - - Not used
16 GND - Signal ground
17 FG - Chassis ground
18 +5V FROM
PRINTER
Unable to supply power to outside device.
19
30 GND - Signal ground
31 nInit(nInit) TO PRINTER Printer is initialized at low-level.
32 nFault(nDataAvail) FROM
PRINTER
When a printer is in the alarm state, it is set to
low-level.
33 GND - Signal ground
34 - - Not used
35 HILEVEL FROM
PRINTER
Pulled up to + 5 V with 3.3 k
resistor inside a
printer.
36 nSelectIn
(IEEE1284 active)
TO PRINTER Used by the bidirectional communication It must
be at the low-level during the compatible mode.

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
